| Prod Model: |
BMP005R5L105FA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
BMP Series |
| Types: |
Winding Types |
| Rated Voltage: |
5.5V |
| Rated Capacitance: |
0.043f to 30f |
| Temperature Range: |
-40c to +65c |
| Delivery Detail: |
7 to 15 Days |
| Mounting Type: |
Wire Lead |
| Type: |
Supercapacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
1.0f |
| Usage: |
Energy Storage,Backup Power |
| Tuning: |
Supercapacitor |
| Filter: |
Supercapacitor |

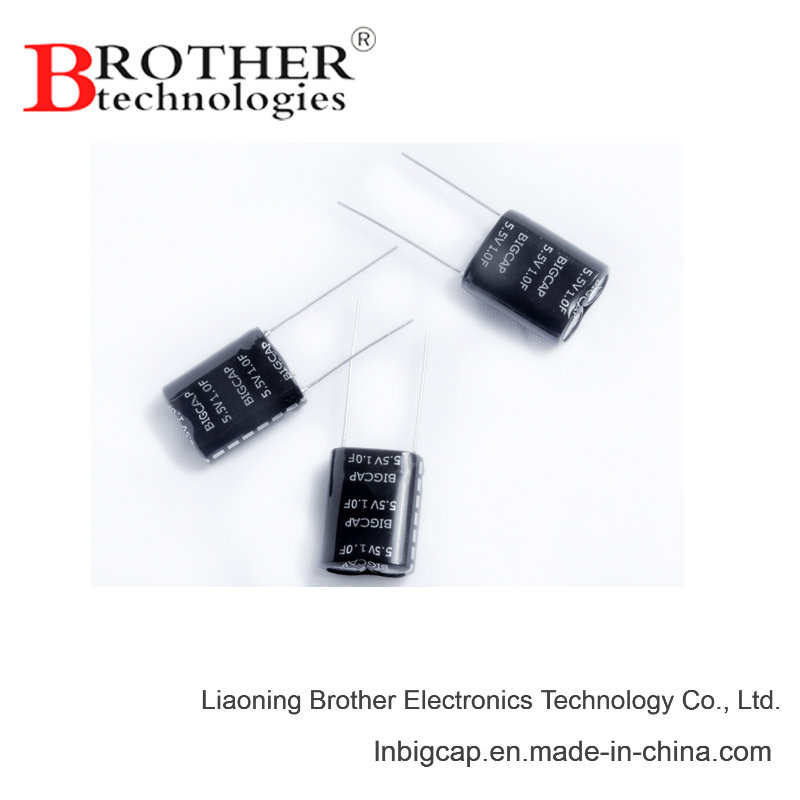

Product Description
LIAONING BROTHER ELECTRONICS TECHNOLOGY CO., LTD
Features
Internal tandem structure , low internal resistance, High power density;
Long charge-discharge cycle life up to one million times;
Ultra-low leakage current, suitable for use with battery
Various specifications,can meet customer's different requirements
High quality, reasonable price, help you to lowest your production cost;
Applications
Working current greater than 100mA, working hours microseconds to a few minutes;
Can be used for gas meter, water meter, heat meter power shut valve, meter reading system , etc
Specifications
Great price, new and original!
Part Number | Nominal Voltage
V dc |
Capacitance
F | MAXESR,
1kHz,mΩ | L×W×H
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0(mm) |
| BMP005R5L334FA | 5.5 | 0.33 | 800 | 17×9×15 | 12 | 0.6 | 29 |
Part Number | Nominal Voltage
V dc |
Capacitance
F |
MAXESR,
1kHz,mΩ | L×W×H
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0(mm) |
| BMP005R5L105FA | 5.5 | 1.0 | 280 | 17×9×21 | 12 | 0.6 | 29 |
Part Number | Nominal Voltage
V dc |
Capacitance
F |
MAXESR
,1kHz,mΩ | L×W×H
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0(mm) |
| BMP005R5L155FA | 5.5 | 1.5 | 200 | 17×9×21 | 12 | 0.6 | 29 |
Part Number | Nominal Voltage
Vdc |
Capacitance
F |
MAXESR
1kHz,mΩ | L×W×H
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0(mm) |
| BMP005R5L505FO | 5.5 | 5 | 130 | 21×10×26 | 15 | 0.6 | 29 |
Packaging details
| Part Number | QUANTITY(PCS) | Dimension (L×W×H)mm | Weight (Kg) |
| | / Inner | / Outer | Inner | Outer | |
| BMP005R5L105FA | 224 | 1344 | 260×188×90 | 400×280×290 | 6.5 |
Packaging Details:
224pcs/Inner box 6 inner boxes/carton 1344pcs/carton
gross weight: 6.5kg
carton size:400*280*290mm
We have varieties of product specifications and each model has different price, If you have any questions, please contact us in time:
1. We can supply our customer high quality products with a reasonable price, 100% quality guarantee.
2. We can design and produce products according to customer's requirments.
3. With our professional technical team,we can provide our customer with professional technical support.
4.More importantly,we will be five-star service,high quality
and low price!
Liaoning Brother Electronics Technology Co., Ltd is a manufacturer of the Bigcap® Super capacitors which is located at High-TechTechnologyIndustrial Park, Chaoyang, Liaoning. Favorable location endows our company with easy access to transportation and communication.
Our company specializes in the design, research, development, production and sale of various super capacitors which exhibit complete specifications and reliable quality. The capacity of single super capacitor ranges from 0.01F to 3000F and our products extend to cover more than 100 types in around ten series, such as BRE, BRP and BME. So far our products have come into extensive use in such areas as intelligent instruments (gas meter, water meter, ammeter, etc. ), electrical equipment, medical equipment, solar and wind energy products, toys, and electric cars. Serving as back-up source, our products supplies high power in short term.
Our research team is highly experienced in the manufacturing of super capacitors. Our management has been engaging in the management of production and R&D of super capacitor for 12 years, our main technical personnel have 8 to 10 years' experience in the design and manufacturing of this field and our workers have more than 5 years' experience in the processing of super capacitors. Our work team that is made up of the technical elites of the industry commits to turning out first-rate super capacitors of China and to enabling our products to play a leading role in international brands.
By carrying forward the valuable experience in the super capacitor industry and combining the advanced electrode activation technology, now our products exhibit advanced technical level in China and stable quality. Our BIGCAP® Super capacitor series is characterized by reissuance to high voltage (Single super capacitor can operate in 2.8V. ), great stability in long-term operation, wide temperature range (maximum temp.: 85º C), ultralow internal resistance that applies to electric discharge of medium and large power.
Our production facilities are characterized by high automation degree and high precision. Our company carries out the Six Sigma management system and has obtained the ISO9001: 2008 quality management system and the ISO14001: 2004 environmental management system. Our products are environmental-friendly and comply with the RoHS of the EU.
Our quality policy is win good market reputation through scientific quality management, elaborate production process, powerful technical support and excellent after-sales service.
Bigcap Technology relies on product quality to survive and progress. Each one of our product is our cell, the quality of which is closely related to the life of Bigcap. To offer satisfactory products to customers is the bounden duty of all our employees.
