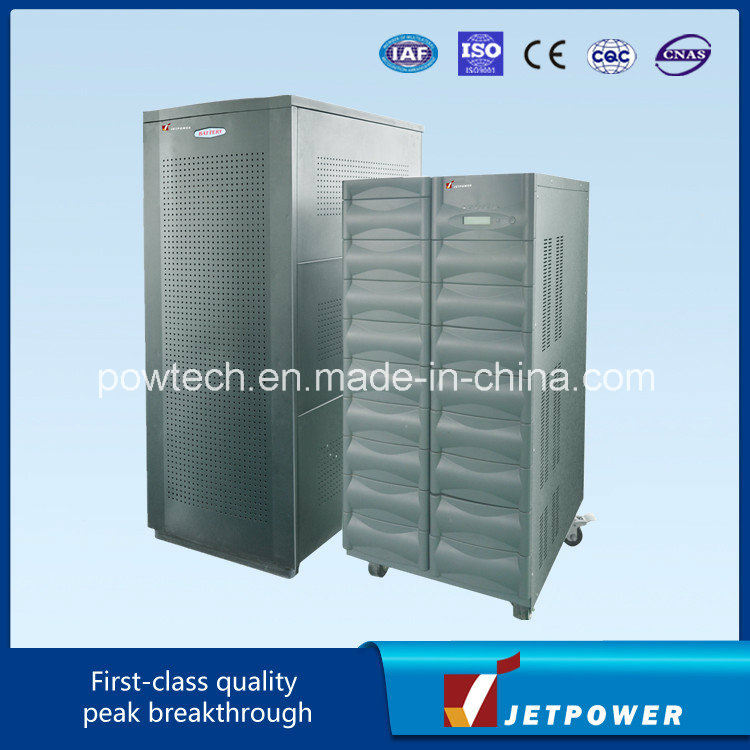

Low Freqeuncy Online UPS, 40kVA
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
QZ-40K3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technology: |
Online Low Frequency |
| Input Voltage: |
380VAC, 3phase |
| Output Voltage: |
220VAC, 1phase |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Jetpower |
Product Description
Main Features:
1) Adopt on-line double conversion technology
2) IGBT, PWM inverter together with digital
3) Cold start
4) 100% Non linear load ability
5) Microprocessor controller
6) AVR design, expanded input voltage range (160vac ~ 300vac)
7) Key components with redundant design for higher reliability
Comprehensive protection
1) Lightning and surge protection
2) EMI/RFI filter protection
3) Input Over voltage protection
4) Output short circuit protection
5) Overload protection (150% for 3s)
6) Over temperature protection
Super Safety
1) The output isolate transformer can avoid the destruction of abnormal signal & lightning stoke
With static bypass, repair bypass
| 2K~20K (1-in/1-out) |
| Model | 2K | 3K | 6K | 10K | 15K | 20K |
| Capacity (VA/W) | 2K/1.6K | 3K/2.4K | 6K/4.8K | 10K/8K | 15K/12K | 20K/16K |
| Input voltage | 220V±25%, 1-phase/3-wire |
| Noise | ≤52dB (distance: 1m) | ≤55dB(distance: 1m) |
| Sizes (W×D×H,mm) | 530×240×592 | 624×343×760 |
| Weight (Kg) (w/o battery ) | 35 | 35 | 53 | 91 | 110 | 122 |
|
| 6K3~60K3(3-in/1-out) |
| Model | 6K 3-1 | 10K 3-1 | 15K 3-1 | 20K 3-1 | 30K 3-1 | 40K 3-1 | 50K 3-1 | 60K 3-1 |
| Capacity (VA/W) | 6K/4.8K | 10K/8K | 15K/12K | 20K/16K | 30K/24K | 40K/32K | 50K/40K | 60K/48K |
| Input voltage | 380V±25%, 3-phase/5-wire |
| Noise | ≤55dB(distance: 1m) | ≤60dB(distance: 1m) |
| Sizes (W×D×H,mm) | 530×240×592 |
624×343×1020
| 624×480×1100 |
| Weight (Kg) (w/o battery ) | 53 | 139 | 158 | 178 | 263 | 335 | 400 | 480 |
|
| Common parameter |
| Input | Frequency | 50Hz/60Hz±10% |
| Power factor | ≥92% |
| Output | Voltage | 220V±0.5% |
| Voltage regulation | ±1% (static); ±2% (dynamic) (20ms from 0-100% load change) |
| Frequency regulation | 50Hz/60Hz±0.05%(on battery mode) |
| Frequency tracking rate | <1Hz/s |
| Dynamic response | ±0.4%(100% load change) |
| THD | <3% @ linear load (full load); <5% @ non-linear load (full load) |
| Waveform | True sine wave |
| Efficiency | AC input to AC output | ≥91% |
| Transfer time | Mains fails or restores | 0s |
| Battery | Voltage | 192V for 2K to 20K ; 336V for 30K to 60K |
| Charge time | 8 hours to 90% |
| Alarm | Battery discharge | Beeps every four (4) seconds when AC mains fails |
| Beep every one (1) second when battery voltage low |
| Continuously beeps when stopping battery discharge |
| Fault | Continuously beeps |
| Protection & Display | Battery | Automatically shutdown when battery low, no fuse switch protection. |
| Overload | Automatically jumps to BYPSS when 110~150% overload for 30 seconds and automatically resumes when overload removed. |
| Over temperature | Automatically jump to BYPSS when UPS internal temperature >85ºC , |
| Short circuit | Current limit, automatic shutdown, fuse and no fuse switch protection |
| UPS abnormal | Automatically jumps to BYPASS |
| Noise filter | 10~10KHz at 40 db;100KHz~100MHz at 70db |
| LCD display | Display input voltage/frequency, battery voltage and output power (%) |
| Environment | Temperature | -10~40ºC |
| Relative humidity | 10%~90%(no condensation) |
| Altitude | 1500m |
