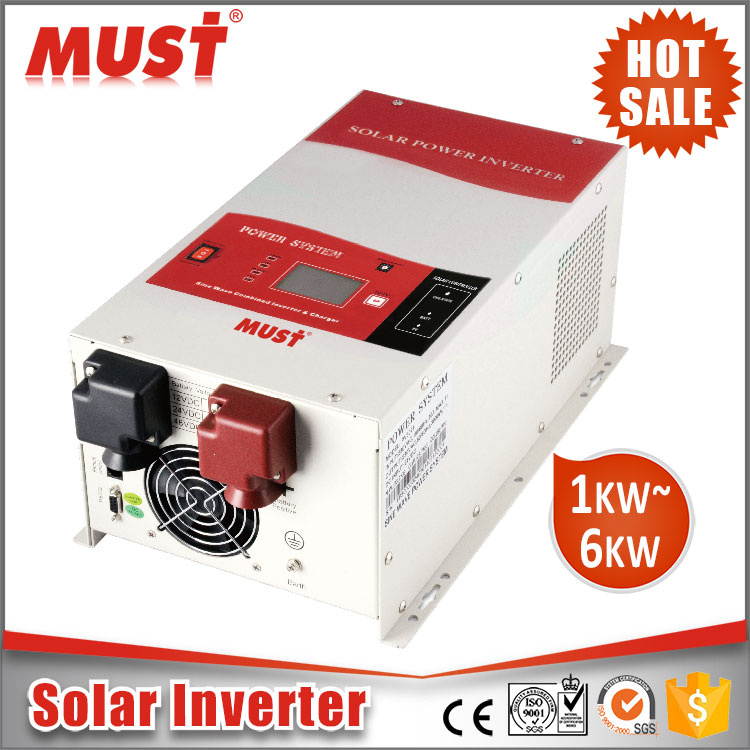

Low Frequecny Hybrid Solar Inverter with CE Certification
| Price: |
US $ 356-390/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
PV3000; |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Inbuilt MPPT Controller |
| Charger: |
Max 70AMP Charge Current |
| Wave: |
Pure Sine Wave |
| Power: |
1kw-6kw |
| DC Voltage: |
12/24V |
| Display: |
LCD |
| Used For: |
Solar Sstem, Collected with Solar Panel |
| Battery Priority Function: |
Yes |
| Name: |
Low Frequecny Hybrid Solar Inverter with CE Certif |
| Warranty: |
One Year |
Product Description
Low Frequecny Hybrid Solar Inverter with CE Certification
Features of Solar Inverter PV3000:
- Inbuilt MPPT solar charge controller 30A~60A
- Battery priority function
- 12V/24V/48V input optional
- Max. AC charge current 70A. Inbuilt pure copper transformer
- Pure sine wave output
- LCD status display
- 50Hz/60Hz automatic
- RS232 with free CD(optional)

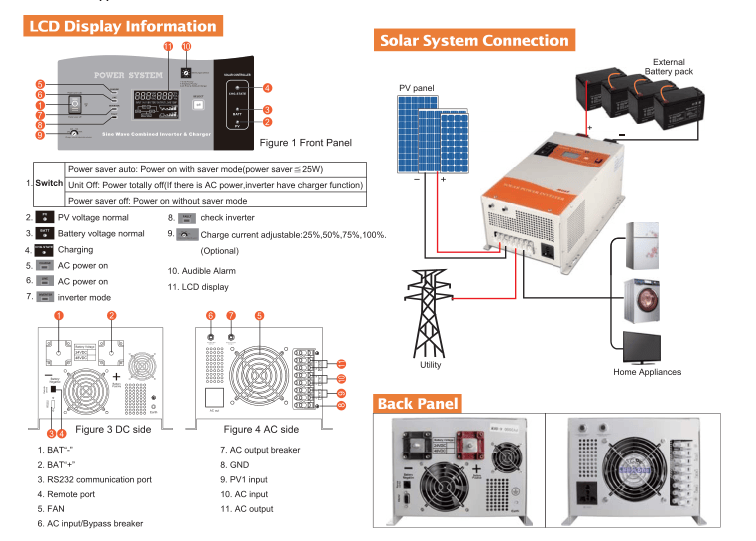

LCD Display
Specifications
What is the Technical Specifications of power inverter 1-5KW ?
| MODEL | PV30-1KW | PV30-1.5KW | PV30-2KW | PV30-3KW | PV30-4KW | PV30-5KW |
| Default Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 24VDC/48VDC | 24VDC/48VDC |
| INVERTER OUTPUT | Rated Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW |
| Surge Rating (20ms) | 3KVA | 4.5KVA | 6KVA | 9KVA | 12KW | 15KW |
| Capable Of Starting Electric Motor | 1HP | 1HP | 1HP | 2HP | 2HP | 3HP |
| Waveform | Pure sine wave/ same as input (bypass mode) | Pure sine wave/ same as input (bypass mode) |
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS) | 100V/110V/120VAC
220V/230V/240VAC | 220V/230V/240VAC |
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | 50Hz/60Hz +/-0.3 Hz |
| Inverter Efficiency(Peak) | >88% | >88% |
| Line Mode Efficiency | >95% | >95% |
| Power Factor | 0.8 | 1.0 |
| Typical Transfer Time | 10ms(max) | 10ms(max) |
| AC INPUT | Voltage | 230VAC | 230VAC |
| Selectable Voltage Range | 96~132VAC 155~280VAC(For Personal Computers) | 96~132VAC/155~280VAC(For Personal Computers) |
| Frequency Range | 50Hz/60Hz (Auto sensing) 40-80Hz | 50HZ/60HZ (Auto sensing) 40-80Hz |
| BATTERY | Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, ) | 20.0VDC~21.0VDC /40.0VDC~42.0VDC |
| Low Battery Alarm | 10.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 21.0VDC+/-0.6V /42.0VDC+/-1.2V |
| Low Battery Cutoff | 10.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 20.0VDC+/-0.6V /40.0VDC+/-1.2V |
| High Voltage Alarm | 16.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 32.0VDC+/-0.6V /64.0VDC+/-1.2V |
| High Battery Voltage Recover | 15.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, ) | 31.0VDC+/-0.6V / 62.0VDC+/-1.2V |
| Idle Consumption-Search Mode | <25W when power saver on | <50W when power saver on |
| AC CHARGER | Output Voltage | Depends on battery type | Depends on battery tvpe |
| Charger AC Input Breaker Rating | 10A | 30A | 30A | 30A | 40A |
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC, ) | 31.4VDC/62.8VDC |
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 65A | 35A | 70A | 40A |
BYPASS
& PROTECTION | Input Voltage Waveform | Sine wave (grid or generator) | Sine wave (grid or generator) |
| Nominal Input Frequency | 50Hz or 60Hz | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | Circuit breaker | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker | Circuit breaker |
| Bypass Breaker Rating | 10A | 15A | 30A | 30A | 40A |
| Max Bypass Current | 30Amp | 40Amp |
| SOLAR CHARGER | Maximum PV Array Power | 600W | 1200W | 600W | 1200W | 600W | 1200W | 600W | 1200W | 1600W | 3200W | 1600W | 3200W |
| Maximum PV Charge Current | 40A | 60A |
| DC Voltage | 12V/24V atuo work | 24V/48V atuo work |
| MPPT Range @ Operating Voltage | 16~100VDC | 32~145VDC @ 24V / 64~145VDC @ 48V |
| Maximum PV Array Open Circuit Voltage | 100VDC | 145VDC |
| Maximum Efficiency | >90% | >98% |
| Standby Power Consumption | <2W | <2W |
| MECHANICAL SPECIFICATIONS | Mounting | Wall mount | Wall mount |
| Dimensions (W*H*D) | 460*277*192mm | 597x277x198mm |
| Net Weight (Solar CHG) kg | 18.3 | 22 | 23.5 | 23 | 28 | 27 | 39.6 | 48.6 |
| Shipping Dimensions(W*H*D) | 554*360*300mm | 743*372*312mm |
| Shipping Weight (Solar CHG) kg | 21.9 | 24.8 | 26.5 | 25.6 | 31 | 30 | 43.3 | 53 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Storage Temperature | -15°C to 60°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Loading(20GP/40GP/40HQ) | 460pcs / 920pcs / 1060pcs | 320pcs / 640pcs / 750pcs |

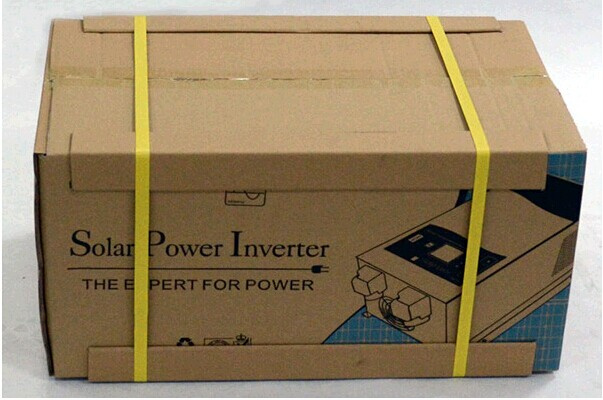

Packaging
Power Inverter Package: Client's OEM Package Welcomed
Company informations:
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 200 workers |
| Department | 7-team Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent
|
Our ServicesPayment & Shipping & Sample
1. Payment: T/T (Telegraphic transfer), and Western Union
2. Shipping: DHL, FEDEX, UPS, EMS, Airway and By Sea
Samples are Available for Testing and Market Test. OEM is welcomed for us.
One Year Warranty on MUST POWER Products
Guides and After-service Consultancy
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily. Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Why not press the below "SEND" button to send us an email about your detail requirements?
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
