| Prod Model: |
EP3000PRO |
| Rated Power: |
1kw to 6kw |
| Transformer: |
Pure Copper Ui |
| Reomte Control Panel: |
Yes |
| AC Input Voltage: |
230VAC |
| Maximum Charge Current: |
75A Max |
| Bypass: |
Yes |
| Operation Temperature Range: |
0 to 40 °c |
| Display: |
LED+LCD |
Product Description

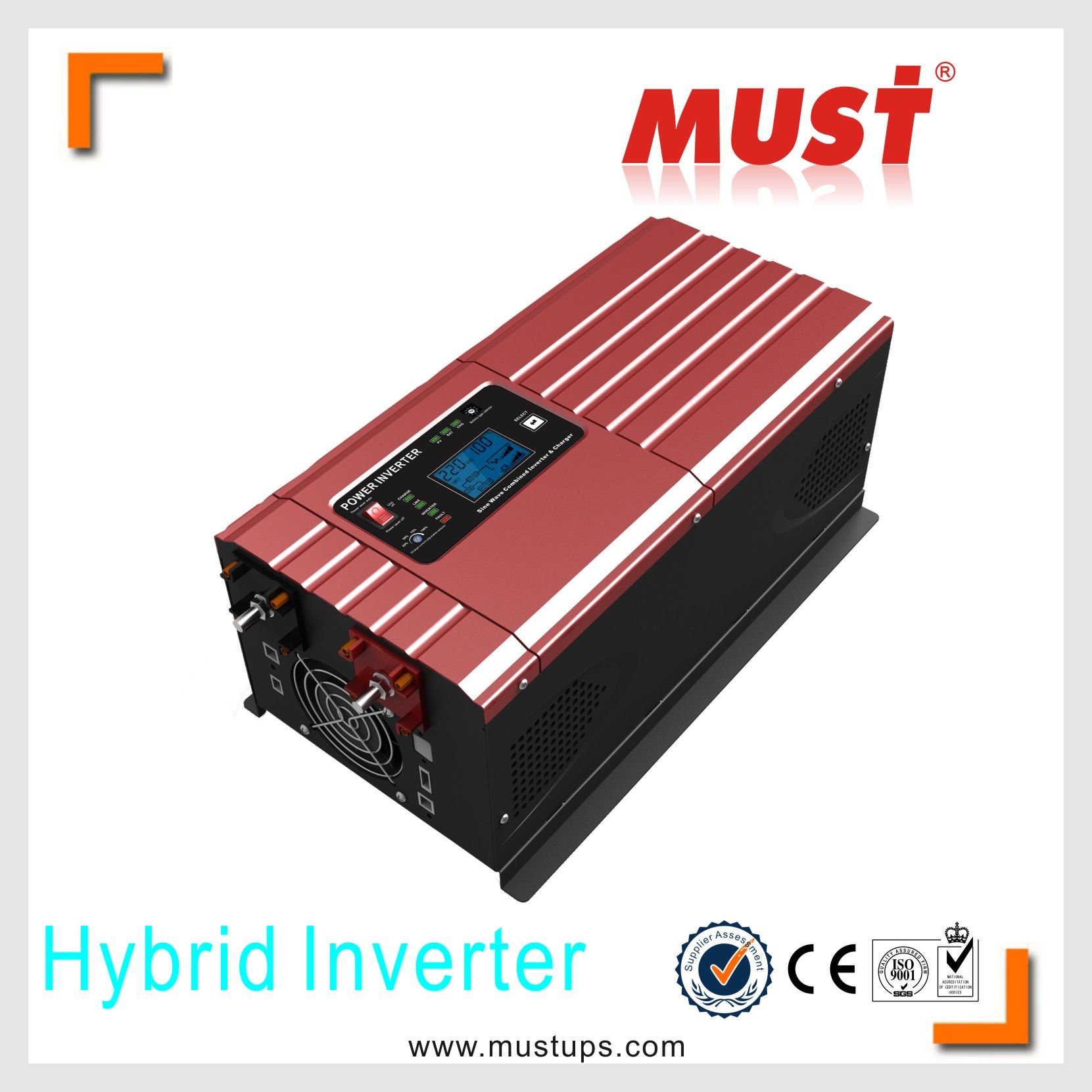

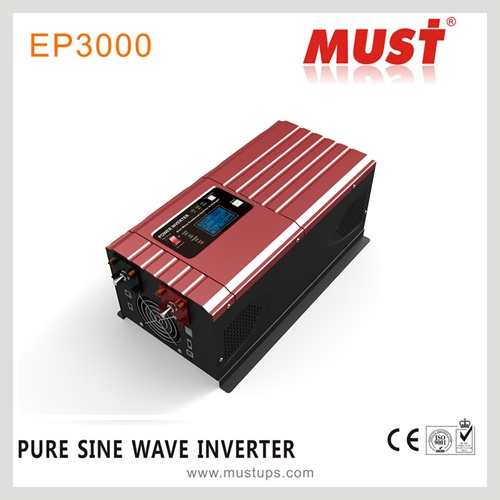

MUST Power Inverter low frequency 3000w 24v 48v 12v off grid power inverter for home energy system
********ANY QUESTIONS, PLS FEEL FREE TO CONTACT !!!!******** Kunny
Product Details
| Specification of the Power Inverter EP3000pro series |
Pure Sine Wave Output;
Rated power 1kw to 6kw;
3 Times Surge Power;
Wide Frequency 40Hz-80Hz;
Conpiatible to generatot power;
Overload & Short Circuit Protection;
Smart battery charger design for optimized battery performance;
Cold start function.
Product Link Sketch
| MODEL | EP30-1KW PRO | EP30-1.5KW PRO | EP30-2KW PRO | EP30-3KW PRO
| EP30-4KW PRO | EP30-5KW PRO | EP30-6KW PRO |
| Nominal Battery System Voltage | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC | 24VDC | 48VDC |
INVERTER
OUTPUT | Reted Power | 1.0KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW |
| Surge Rating (20ms) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12KW | 15KVA | 18KW |
Capable Of Starting
Electric Motor | 1HP | 1HP | 1HP | 2HP | 3HP |
| Waveform | Pure sine wave/ same as input (bypass mode) |
Nominal Output
Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC(±10% RMS) | 220V/230V/240VAC(±10% RMS) |
| Output Frequency | 50Hz/60Hz±0.3 Hz |
| Inverter Efficiency(Peak) | >88% |
| Line Mode Efficiency | >95% |
| Power Factor | 1.0 |
| Typical Transfer Time | 10ms(max) |
| AC INPUT | Voltage | 230VAC |
Selectable Voltage
Range | 96~132VAC 155~280VAC(For Personal Computers) |
| Frequency Range | 50Hz/60Hz (Auto sensing) 40~80Hz |
| BATTERY | Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, *4 for 48VDC) |
| Low Battery Alarm | 10.5VDC ±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) |
| Low Battery Cut off | 10.0VDC ±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) |
| High Voltage Alarm | 16.0VDC ±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) |
High Battery Voltage
Recover | 15.5VDC ±0.3V for12VDC mode V |
| Idle Consumption-Search Mode | <25W when power saver on |
| CHARGER | Output Voltage | Depends on battery type |
Charger AC Input
Breaker Rrating | 10A | 30A | 30A | 30A | 40A |
Overcharge Protection
S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) |
Maximum Charge
Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 30A | 65A | 35A | 70A | 40A | 75A | 50A |
BYPASS
&
PROTECTION | Input Voltage Waveform | Sine wave (grid or generator) |
Nominal Input
Frequency | 50Hz or 60Hz |
Overload Protection
(SMPS Load) | Circuit breaker |
Output Short Circuit
Protection | Circuit breaker |
| Bypass Breaker Rating | 10A | 30A | 30A | 30A | 30A | 40A |
| Max Bypass Current | 30Amp |
MECHANICAL
SPECIFICAT
IONS | Mounting | Wall Mount |
| Dimensions (W*H*D) | 426*206*178 mm | 601*206*178mm |
Net Weight
(Solar CHG) kg | 16.5 | 17 | 21.1 | 20 | 26 | 24.5 | 24.8 | 38.2 | 35.8 | 45.2 | 45 | 45.2 | 45 |
Shipping
Dimensions(W*H*D) | 570*335*300mm | | 750*335*300mm |
Shipping Weight
(Solar CHG) kg | 19.3 | 20 | 24.1 | 22.8 | 29.1 | 27.5 | 27.5 | 42.3 | 40 | 49.5 | 49.3 | 49.5 | 49.3 |
| OTHER | Operation Temperature
Range | 0°C to 40°C |
| Storage Temperature | -15°C to 60°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year |
Why Choose Us
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
MUST Power Revenue Growth Increases Every Year
FAQ
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
