| Prod Model: |
EP2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dislay: |
LCD/LED |
| Other: |
Rack and Tower |
| Chagrer: |
25AMP |
| Color: |
Black |
| Telecommunication Port: |
RS232 |
| Warranty: |
12month. 2% Apre Parts |
| Wide Input Volts Range: |
145-275VAC |
| Protection: |
Overvoltage |
Product Description

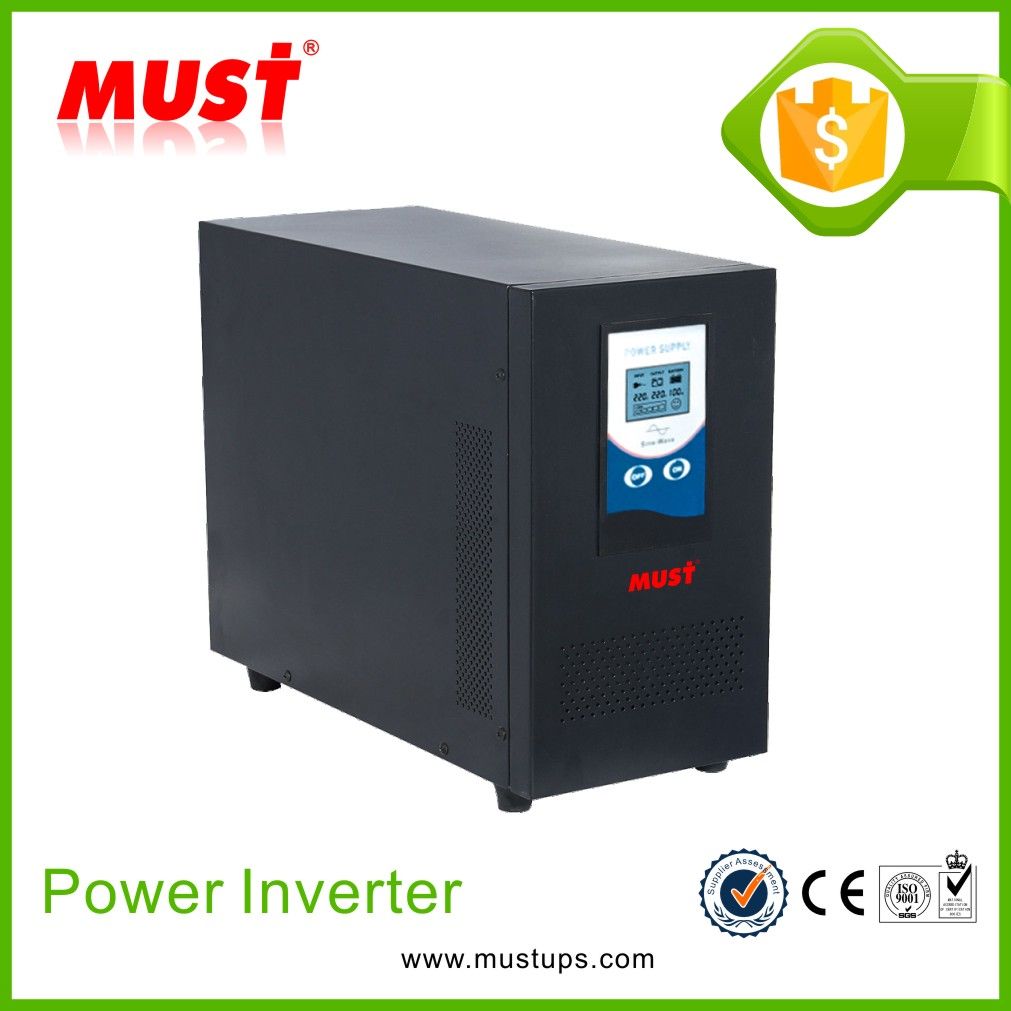

This inverter with 12V/24V/48V/96V model, automatic LCD DC to AC inverter.

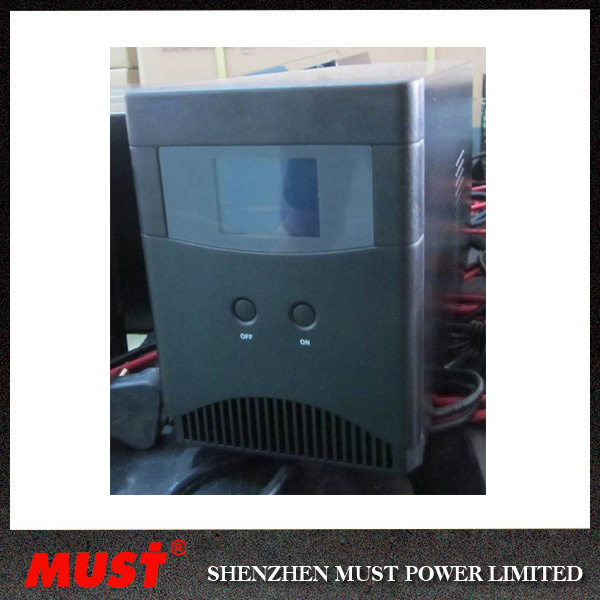

This inverter with LCD display, pure sine wave output
The inverter with max 20A charge current.
Extremely low return noise and no disturbance to talking quality.
Use-friendly interface, LCD simulative display and computer screen display of inverter operation status.
RS232 port, smart power management software, automatic file saving and shutting down at power abnormalities.
Special charging system design for better protection of battery life.
Short circuit, overload, over voltage and low battery protection.
Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
With standard on-line structure (three ports)and can be used as UPS.
Specification
| Model | 115V Models | 230V Models |
| OUTPUT |
| Power Levels crated at nominal inputs | 500VA/300W;1000VA /600W;1500VA / 900W | 500VA/300W;1000VA /600W;1500VA / 900W |
| Output Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable |
| Voltage Waveform | Pure Sine wave |
| Crest Factor | 3:1 |
| Output Frequency(Synchronized to Mains) | Auto Select for 50/60Hz;47Hz ~ 55Hz for 50Hz nominal;56Hz ~ 65Hz for 60Hz nominal |
| Regulation (Nominal) | ±10% typical of nominal voltage |
| Regulation(Battery mode) | ±3% of selected output voltage (adjustable with the remote set-up software) |
| Transfer time | 15ms Typical ,50ms Max |
| Over current protection | Over load alarm level 100% ~ 120%;Over load shutdown level 120% ~ 190%
(Adjustable by using the remote set-up software) |
|
| INPUT |
| Nominal Voltage | 110V/115V/120V Selectable | 220V/230V/240V Selectable |
| Input Frequency | 47Hz ~ 65Hz, 50/60Hz auto-sensing |
| Efficiency (Normal mode) | >95% |
| Noise Filtering | Full time EMI/RFI filtering |
| Over current protection | Re-settable over current protector;500VA ~ 5000VA | AC Fuse:500VA / 1500VA Re-settable over current protector:1500VA ~10kVA |
|
|
| Voltage Range | 75V ~ 155V | 145V ~ 310V |
AVR Range
(2 Bucks, 2 Boosts) | Enhanced Buck: +28% of selected nominal voltage;Buck mode: +10% of selected nominal voltage;Boost mode: -10% of selected nominal voltage
Enhanced Boost: -25% of selected nominal voltage |
|
|
| Surge Protection | 500VA / 1500VA:216 Joules
1500VA ~ 5000VA:324 Joules | 500VA / 1500VA:220 Joules
1500VA ~10000VA:440 Joules |
|
| BATTERY |
| Battery type | Lead-Acid 7Ah~200Ah (Recommended) | Lead-Acid7Ah~200Ah (Recommended) |
| DC Voltage | 500VA / 1000VA:12Vdc
1500VA:24Vdc | 500VA / 1000VA:12Vdc
1500VA:24Vdc |
|
| Typical backup time | No Limit |
| Charging method | Smart pulse charging with two charging modes:Quick charging when battery
is not fully charged;trickle charging when battery is 90% fully charged. |
|
| Maximum charging current | 500VA/ 1000VA:15A; 1500VA:20A | 500VA / 1000VA:15A; 1500VA:20A |
Average charging
voltage for each battery | Quick charging mode:14V maximum.
Trickle charging mode:13.5V (adjustable with the remote set-up software) |
|
| Protection | Over current protection & Over charging voltage protection (SCR control)Thermal protection (CPU control)When temperature inside the unit is over 45 , charger willstop charging for 2
minutes followed by an 2 minutes charging. The cycle will be repeate |
|
|
| Monitoring | Smart monitoring & warning for failed battery or open-circuit battery.
Auto-detection each time when power on or every 6 days. |
|
| SOLAR CHARGER (OPTIONAL) |
| Rating voltage | 12V / 24V / 48V | 12V / 24V / 48V |
| DC input range | 12V model:12 ~ 21Vdc; 24V model:24 ~ 42Vdc; 48V model:48 ~ 84Vdc |
| Charging method | Constant voltage with current limiting by PWM control |
| Charging voltage | 12V model:13.5Vdc; 24V model:27.0Vdc; 48V model:54.0Vdc |
| Power rating | 12V model:500W (13.5Vdc @ 37A); 24V model:1000W (27.0Vdc @ 37A)
48V model : 1000W (54Vdc @ 18.5A) |
|
| Protection | DC input polarity protection, DC input short circuit protection( when battery is
connected), DC output over current protection |
|
| COMMUNICATION&MANAGEMENT |
| Standard Interface port | UPSilon2000 compatible; optional for RS232 . |
| Optional Interface part | RJ45 (Surge protection), DB9, |
| Control panel | LCD or LED Selectable |
| Audible alarm | Alarm on battery:Low battery & Battery over voltage
Alarm on abnormal operation:Over load, Short-circuit, & Over heat |
|
Green mode function
(Auto-shut-off in blackout) | 1% to 14% of full load (adjustable by using the remote set-up software)
The default setting is OFF. |
|
| Cooling fan control | Auto on / off, controlled by temperature & operation mode |
| ENVIRONMENTAL & SAFETY |
| Operating Temperature | Up to 1500 meters:0 °C to 40 °C (32 °F to 104 °F) |
| Transit/storage Temp. | -15 °C to 55 °C (5 °F to 131 °F) |
| Relative Humidity | 5 - 95% non condensing |
| Operating Altitude | 0 ~ 3000 meters |
| Quality control system | ISO 9001:2000, ISO 14002-2004 |
| PHYSICAL |
| Appearance | Size(mm) L x W x H | 340 X 265 X 120 |
| Weight(Kg) | 500VA/300W:9kg ; 1000VA /600W : 10.1kg ; 1500VA / 900W :23kg |
| Carton BOX(mm)Lx WxH | 414*311*560(3pcs) |
| G.W:(Kg) | 500VA/300W:30kg ; 1000VA /600W :30.3kg ;1500VA / 900W :71kg |
