| Prod Model: |
Low frequency online three phase |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
380/400/415VAC 3-Phase |
| Voltage Tolerance: |
400V + 20%/ -25% |
| Frequency: |
45 ÷ 65 Hz |
| AC Ripple: |
< 1% |
| Number Of Phase: |
3 + N |
| Static Stability: |
± 1% |
| Dynamic Stability: |
± 5% in 10ms |
| Crest Factor (Lpeak/1RMS): |
3: 1 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Equipment Mode: |
Sorotec |
| Brand: |
Sorotec |
Product Description

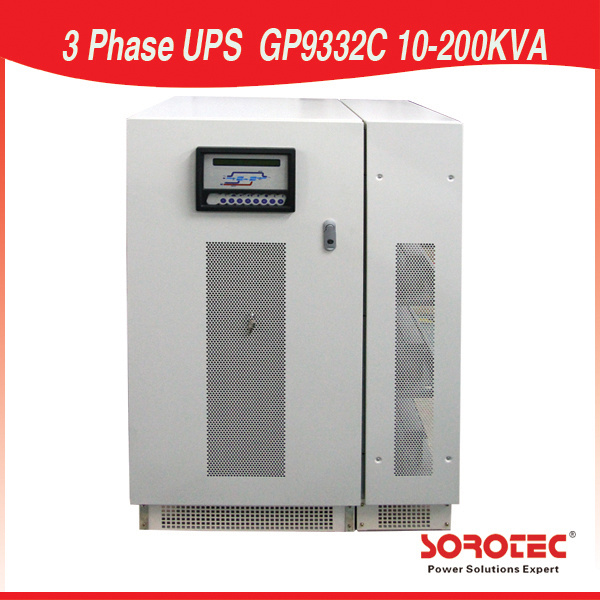

UPS Uninterruptible Power Supply
Low Frequency Online UPS
GP9332C 10-120kVA (3pH in/3pH out)
Key Features:
1. Up to 8 units in parallel
2. DSP control
3. Double CPU control
4. Modularize
5. Battery can be sharing
6. Advanced operation mode
7. Manual maintenance bypass
8. Wide input voltage range
7. High output power factor
9. Strong environmental adaptability
10. Advanced battery management
11. N+X parallel redundancy
12. Compatible with generator
13. Strong shock resistance ability
14. EPO function
15. Full protection against over-discharge, overcharge, over load.
LBS Function:
LBS function supports the two independent input to improve the reliability of the system.
High reliability
True on-line static bypass technology, to provide strong overload and fault protection device.
Internal manual maintenance bypass, further improve the reliability of continuous operation of the load.
Network management humanity
Communicate with PC by RS232.
Use SNMP adapter, UPS can realize remote network management function.
Optimized battery performance
Intelligent battery management function (ABM)
Automatically convert to constant-current constant-voltage charging technology.
Parallel Configuration of up to 8 units of Low Frequency Online UPS GP9332C 10-120kVA:
Can parallel 8 units UPS;
Parallel UPS units can share a battery pack;
Non-fixed master/slave parallel
Application:
Large-medium computer data center, industrial process and other mission-critical equipment
Technical Specifications of UPS Uninterruptible Power Supply GP9332C 10-120kVA
| Model | GP9332C 10-120KVA |
| Rated Power (KVA) | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA |
| Active Power (KW) | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 90KW |
| Input |
| Nominal Voltage | 380/400/415VAC 3-phase |
| Voltage tolerance | 400V + 20%/ -25% |
| Frequency | 45 ÷ 65 Hz |
| Soft Start | 0 ÷ 100% in 30' ' (selectable) |
| Permitted frequency tolerance | ± 2% (selectable from ± 1% to ± 5% from the front panel) |
| Standard features | Back Feed protection; separable bypass line |
| Battery |
| Type | Lead, flooded and VRLA AGM / GEL; NiCd |
| AC ripple | < 1% |
| Temperature compensation | -0.5V × º C |
| Typical charging current | 0.2 × C10 |
| Output |
| Number of phase | 3 + N |
| Nominal voltage | 380/400/415VAC 3-phase +N |
| Static stability | ± 1% |
| Dynamic stability | ± 5% in 10ms |
| Voltage distortion | < 1% with linear load; < 3% with no-Linear load |
| Crest factor (lpeak/1rms) | 3: 1 |
| Frequency stability on battery mode | 0.05% |
| Frequency | 50 or 60Hz (selectable) |
| Overload | 110% for 60' ; 125% for 10' ; 150% for 1' |
| Environment |
| Remote signaling | Voltage-free contacts |
| Remote commands | EPO and bypass |
| Communication | Double RS232 + remote contacts +2 communication interface slots |
| Operating Temperature | 0 º C/ + 40 º C |
| Relative humidity | < 95% non condensing |
| Colour | Light grey RAL 7035 |
| Noise | 54 | 60 | 62 | 63 ÷ 68 dBA at 1m |
| Protection rating | IP20 |
| Efficiency Smart Mode | Up to 98% |
| Compliance | European Directives: LV 2006/95/CE; EMC 2004/108/EC; Saftety IEC EN 62040-1; EMC IEC EN 62040-2 C2 |
| Classification according to IEC 62040-3 | (Voltage Frequency Independent) VFI - SS - 111 |
| Physical parameters |
| Weight (kg) without batteries | 210 | 220 | 230 | 280 | 330 | 450 | 600 | 640 | 650 |
| Dimension (h× w× d) (mm) | 1400 × 555 × 740 | 1400 × 800 × 740 | 1900 × 800 × 800 |
