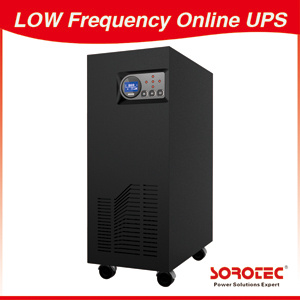

Low Frequency Online UPS Gp9311c 10-20kVA
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GP9311C 10-40KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Box Color: |
Gray (Optional) |
| Noise: |
60-65db |
| Steady-State Response Time: |
<10ms |
| Power Factor: |
0.8(Lagging) |
| Frequency Range: |
50/60Hz±10% |
| Rated Frequency: |
50/60Hz |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description
Low Frequency Online UPS GP9311C 10-20kVAKey features:1. 1ph/1ph or 3ph/1ph, support 380/400/415V, 50/60Hz power system.
2. Pure-online double conversion technology, to provide the best quality of power supply.
3. Suitable for all kinds of loads, and a high overload capacity.
4. Super wide range of input voltage anti-interferance,adapt to harsh environment in power network.
5. Intelligent battery management, extending the battery life.
6. Large LCD display in Chinese and English, and Friendly human-machine interface.High reliability design:1. Double-conversion online design, make the output for UPS frequency tracking, phase-locked regulator, filter noise,low distortion, without interference of pure sine wave power supply, so that UPS for use provide more comprehensive and perfect protection.
2. Output conversion time, is zero to meet the sophisticated equipment for power high-standard requirements.Technical Specifications of OEM UPS GP9110C GP9310C Series
Model | GP911C 6-15KVA | GP9311C 10-40KVA |
| 6KVA | 8KVA | 10KVA | 15KVA | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA |
Capacity | 6KVA/4.8KW | 8KVA/6.4KW | 10KVA/8KW | 15KVA/12KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW |
Rated voltage | 220V single phase | 380V three phase 4 wires+G |
| Rated frequency | 50/60HZ |
AC input |
| Voltage range | 220V±25% single phase | 380V±25% three phase 4 wires+G |
Frequency range | 50/60HZ±5% |
Soft strat | 0-100% 5sec |
| Power factor | >0.92(with input filter) |
Bypass input |
| Voltage range | 220V±25% singke phase | 380V±25% three phase 4 wires+G |
| Frequency range | 50/60HZ±10% |
| Inverter bypass | (overload)0ms |
| | |
Output |
| Voltage accuracy | 220V±1%(steady-state load),220V±3%(load fluctuations) |
Frequency accuracy | 50/60Hz±0.05Hz(battery power) |
Power factor | 0.8(lagging) |
| Distortion | <3%(linear load), <5%(non linear load) |
Steady-state response time | <10ms |
| Overload capacity | 110%load can run normally 125%10min 150%1min |
battery |
| Nominal voltage | 192V | 360V |
Float voltage | 216V | 405V |
Cut-off voltage | 168V | 315V |
Charger current | 1A-50A(According to the battery capacity can be set configuration) |
Other |
Display | LED\LCD |
Alarm | Sound and light alarm |
Protection | UPS over current,short circuit,under voltage,over temperature |
Environment | |
Noise | 60-65dB |
Operating | Temperature0-40°C Relative humidity 0-90% |
Box color | Gray (optional) |
Physical |
Wight
(KG) | Net | 122 | 125 | 143 | 175 | 182.5 | 235.5 | 285.5 | 354.8 | 354.8 |
Gross | 142 | 147 | 163 | 199 | 225.5 | 268.5 | 325.2 | 389.5 | 389.5 |
| Dimesions W×D×H(mm) | 210×600×560 | 305×586×850 | 350×675×920 | 430×792×1060 |
| APPLICATION OF OUR PRODUCT |
1. Living house and home building.
2. Office building, factory and warehouse.
3. Shopping mall, stadium and so on.
4. Power station, field operation and some huge engineer construction.
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip. Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards. 1, QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2, Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
1. How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power
.......................................................................................................................................................................
2. How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the
size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
.......................................................................................................................................................................
3. How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions
.......................................................................................................................................................................
4. How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
