| Prod Model: |
IG3115CT 1-6KW |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
DC/AC Power Inverter |
| Capacity: |
1-6kw |
| Wave Form: |
Pure Sine Wave |
| Transformer Type: |
Yes |
| Easy To Move: |
with Wheels |
| Mainly Application: |
Home and Office |
| Power Factor: |
0.9/1.0 |
Product Description

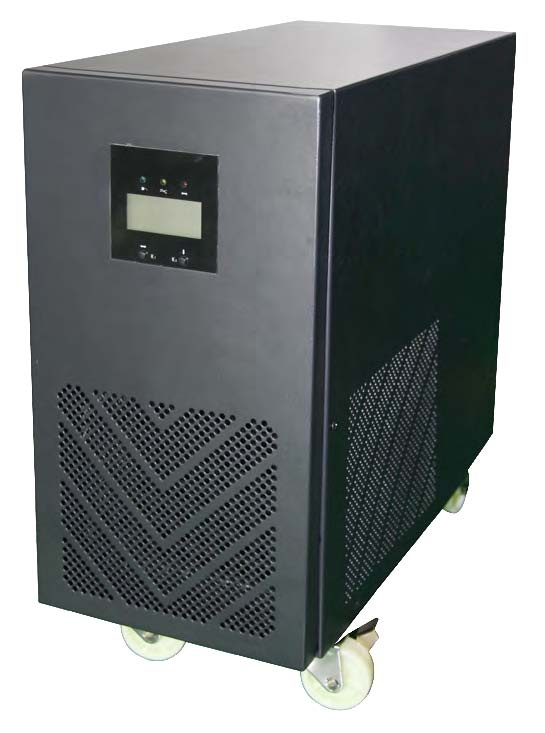

Low Frequency Pure Sine Wave Inverter IG3115CT 1000-6000WSOROTEC IG3115CT series Low Frequency Pure Sine Wave Power Inverter with wheels,easy to move and provide reliable long time backup power supply for PC,TV,fridge,electric fan,DVD,air conditional and so on.Key Features:1.Pure sine wave output
2.The charging current is big up to 70 Amp
3.Output power factor:s 0.9-1
4.Well accept generator's output
5.Full automatical and silent operation
6.Automatically transfer between battery and line modes
7.Microprocessor control guarantees high reliability
8.Remote control function
9.Four-steps intelligent charging control to recharging time
10.Bypass and bypass voltage regulation function
11.Could be setting frequency by LCD display for 50hz or 60hzFull protection:
Protection for low battery voltage,over load,output short circuitand over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances. Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.
Technical Specification of Pure Sine Wave Inverter IG3115CT Series:| MODEL | IG3115C 1000-6000W |
| 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Disconnect | 184Vac± 4% |
| High Line Disconnect | 253Vac± 4% |
| Max AC Input Voltage | 270Vrms |
| Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
Over-Load Protection
(SMPS load) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | > 95% |
| Transfer Switch Rating | 30A |
Transfer Time
(Ac to Dc) | 20ms (typical) |
| Output Voltage Waveform | Sine wave |
| Power Factor | 0~1.0 |
| Nominal Output Voltage (V) | 230Vac |
| Output Voltage Regulation | ± 10% rms |
| Nominal Efficiency | > 80% |
| Surge Ratings | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Nominal DC Input Voltage | 12/24 | 12/24 | 12/24 | 24/48 | 24/48 | 24/48 |
| Nominal Charge Current | 35/20A | 65/35A | 75/45A | 65/35A | 70/40A | 75/50A |
| Charge Current Regulation | ± 5Adc |
| Batteryinitial voltage | 0 - 15.7 Vdc (can operate with 0V battery) |
| Communication: | RJ11 (Used for factory testing. No customer interface available) |
| Safety Certification | Compliance with UL458 | CE(EN60950) |
| EMI Classification | FCC, CLASS A | EN50091-2, CLASS A |
| Operating Temperature Range | 0° Cto 40° C |
| Storage temperature | -15º C ~ 60º C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 4000/5000/6000 Model: 598*218*179 |
| Net Weight: | 18KG | 20KG | 22KG | 35KG | 45KG | 45KG |
| Wooden case | 28.5KG | 28.5KG | 30.5KG | 48KG | 58KG | 58KG |
Product Application1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip
Introduction of Company Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
WHY CHOOSE US ?1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
FAQ1.How to choose suitable inverter?
If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.
For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.
Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.
.......................................................................................................................................................................................................................................
2.How do I choose the size of the inverter?
Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Notice:
Resistive load: you can choose the same power as the load.
Capacitive loads: according to the load, you can choose 2-5 times power.
Inductive loads: according to the load, you can choose 4-7 times power.
........................................................................................................................................................................................................................................
3.How connection between batteries and an power inverter?
We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.
.....................................................................................................................................................................................................................................
4.How to calculate the load of working hours requires configuration of the battery size?
We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
