Low Frequency Transformer for Power Supply (EE20-10 0.5VA)

Prod Model:	EE20-10 0.5VA
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Rd

Product Description

EE20-10 SERIES-0.5VA

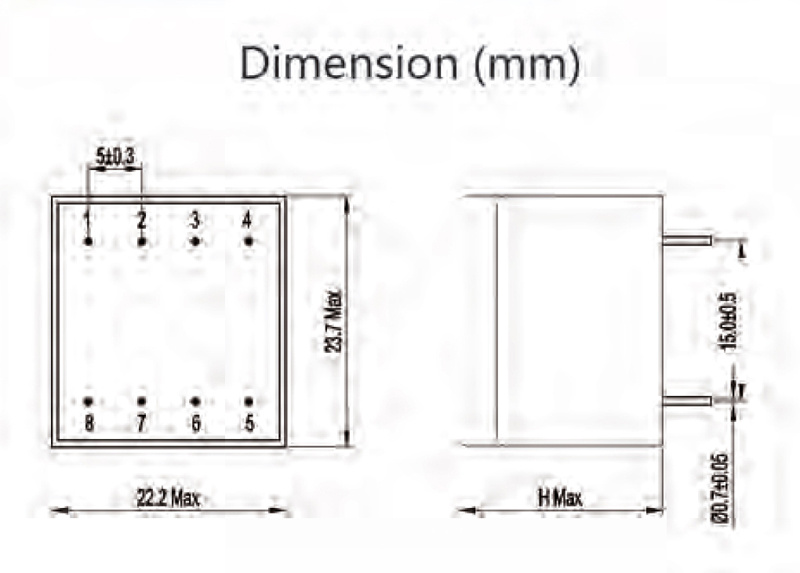

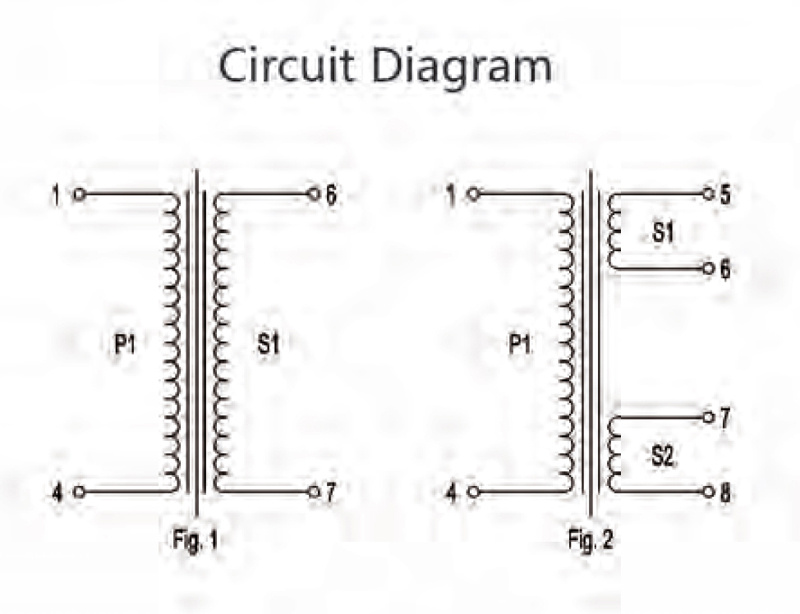

PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V
RD2010000	RD2010100	4.5	111	FIG.1
RD2010001	RD2010101	6	83	FIG.1
RD2010002	RD2010102	7.5	67	FIG.1
RD2010003	RD2010103	9	56	FIG.1
RD2010004	RD2010104	12	42	FIG.1
RD2010005	RD2010105	15	33	FIG.1
RD2010006	RD2010106	18	28	FIG.1
RD2010007	RD2010107	24	21	FIG.1
RD2010050	RD2010150	2 X 4.5	2 X 56	FIG.2
RD2010051	RD2010151	2 X 6	2 X 42	FIG.2
RD2010052	RD2010152	2 X 7.5	2 X 33	FIG.2
RD2010053	RD2010153	2 X 9	2 X 28	FIG.2
RD2010054	RD2010154	2 X 12	2 X 21	FIG.2
RD2010055	RD2010155	2 X 15	2 X 17	FIG.2
RD2010056	RD2010156	2 X 18	2 X 14	FIG.2
RD2010057	RD2010157	2 X 24	2 X 10	FIG.2

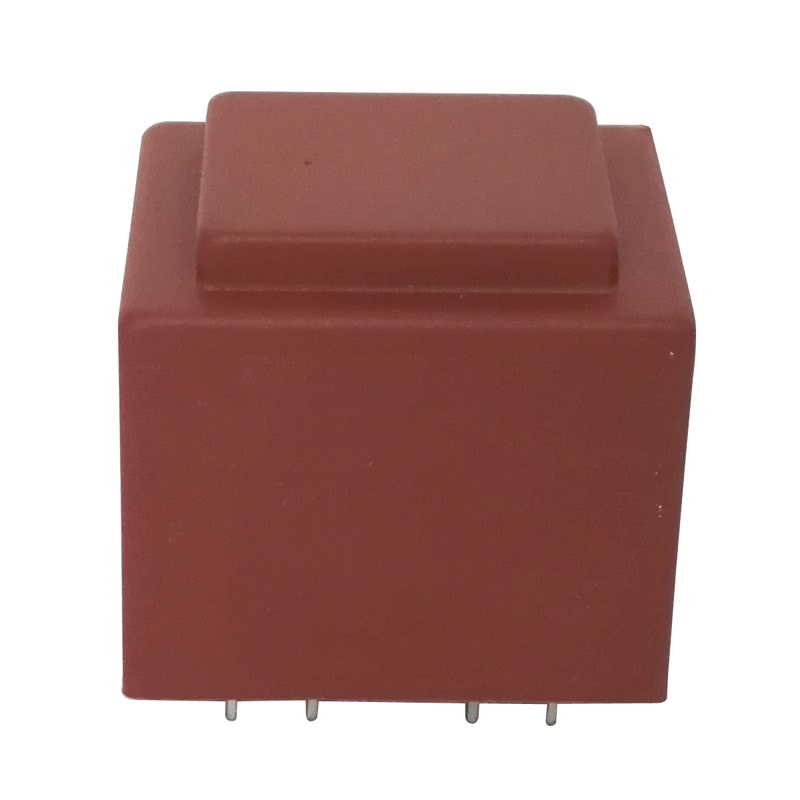

Encapsulated Transformer EE20 Series
Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity from 0.35 to 0.5VA
2. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
3. Minimum size
4. Temperature class ta 70 /B
5. Maximum safety and long-term durability
6. Individually tested with certificate
7. Excellent reaction to temperature changes
8. Self-extinguishing cast housing and sealing material
