Low Frequency Transformer for Power Supply (EE30-5 0.5VA)

Prod Model:	EE30-5 0.5VA
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Rd

Product Description



EI30-5 SERIES-0.5VA

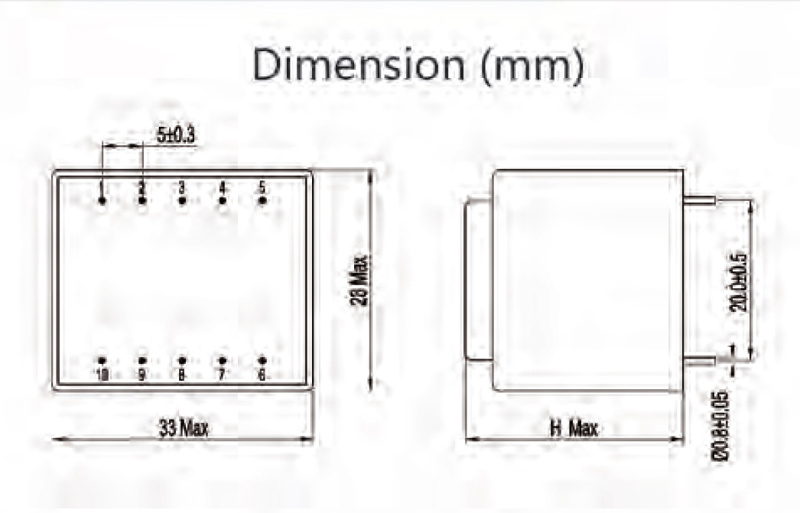

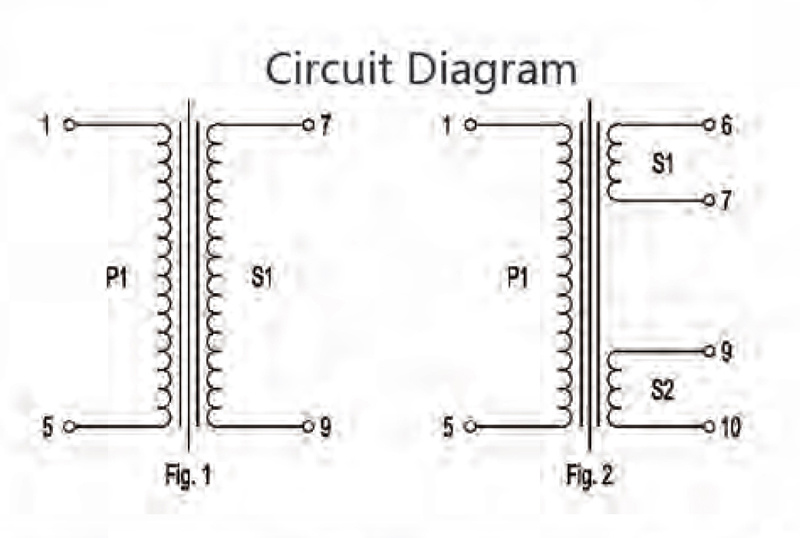

PART NUMBER		OUTPUT VOLTAGE(V)	OUTPUT CURRENT(mA)	CIRCUIT DIAGRAM
INPUT:230V	INPUT:115V
RD3005000	RD3005100	4.5	111	FIG.1
RD3005001	RD3005101	6	83	FIG.1
RD3005002	RD3005102	7.5	67	FIG.1
RD3005003	RD3005103	9	56	FIG.1
RD3005004	RD3005104	12	42	FIG.1
RD3005005	RD3005105	15	33	FIG.1
RD3005006	RD3005106	18	28	FIG.1
RD3005007	RD3005107	24	21	FIG.1
RD3005050	RD3005150	2 X 4.5	2 X 56	FIG.2
RD3005051	RD3005151	2 X 6	2 X 42	FIG.2
RD3005052	RD3005152	2 X 7.5	2 X 33	FIG.2
RD3005053	RD3005153	2 X 9	2 X 28	FIG.2
RD3005054	RD3005154	2 X 12	2 X 21	FIG.2
RD3005055	RD3005155	2 X 15	2 X 17	FIG.2
RD3005056	RD3005156	2 X 18	2 X 14	FIG.2
RD3005057	RD3005157	2 X 24	2 X 10	FIG.2

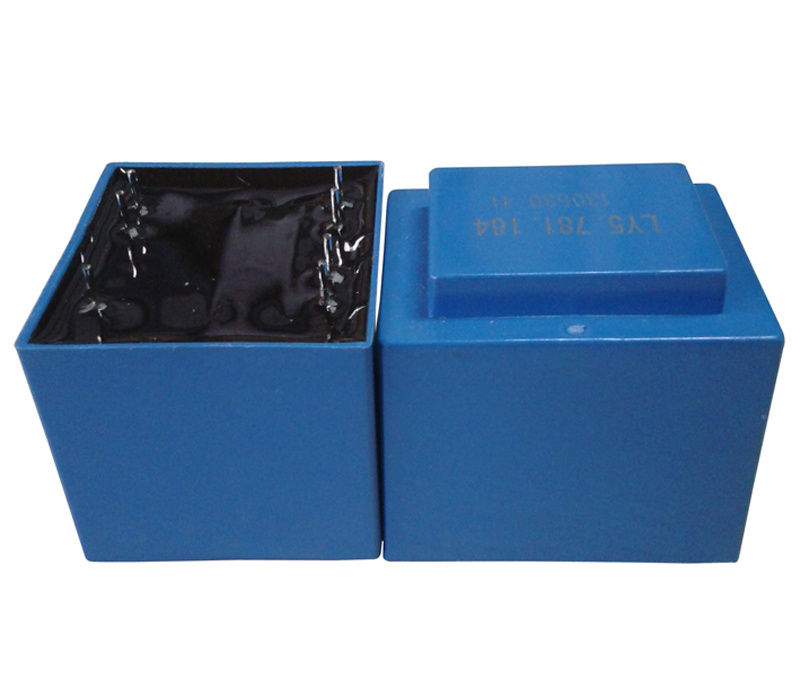

Encapsulated Transformer EE30 Series

Features:
Dielectric Strength-4000Vrms
High ambient operation temperature(+70 max)
Insulation class-class B(130 )
Custom design available
TECHNICAL INFORMATION:
1. High capacity up to 3.2VA
2. Secondary voltage 6V to 24V or 2x6V to 2x24V respectively
3. Minimum size availlable
4. Temperature class ta 70 /B
5. Maximum safety and long-term durability
6. Individually tested with certificate
7. Excellent reaction to temperature changes
8. Self-extinguishing cast housing and sealing material
