Low Loss 0.1dB Takfly Metal Sc APC Fiber Optic Adapter
| Price: |
US $ 0.1-12/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SC adapter |
| Item Name: |
Sc APC Metal Fiber Optic Adapter |
| Keywords: |
Sc APC Adapter/Sc Adapter/Fiber Adapter |
| Polish Interface: |
APC |
| Insert Loss: |
<=0.3dB |
| Sc Adapter Material: |
Metal |
| Customized: |
Available |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
Product Description

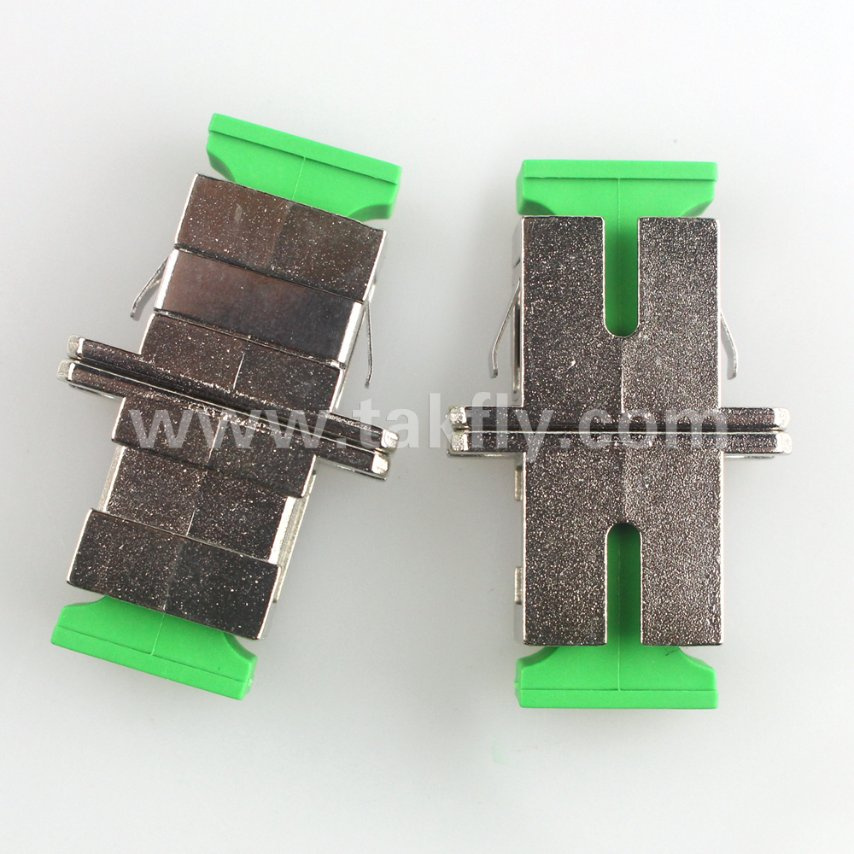

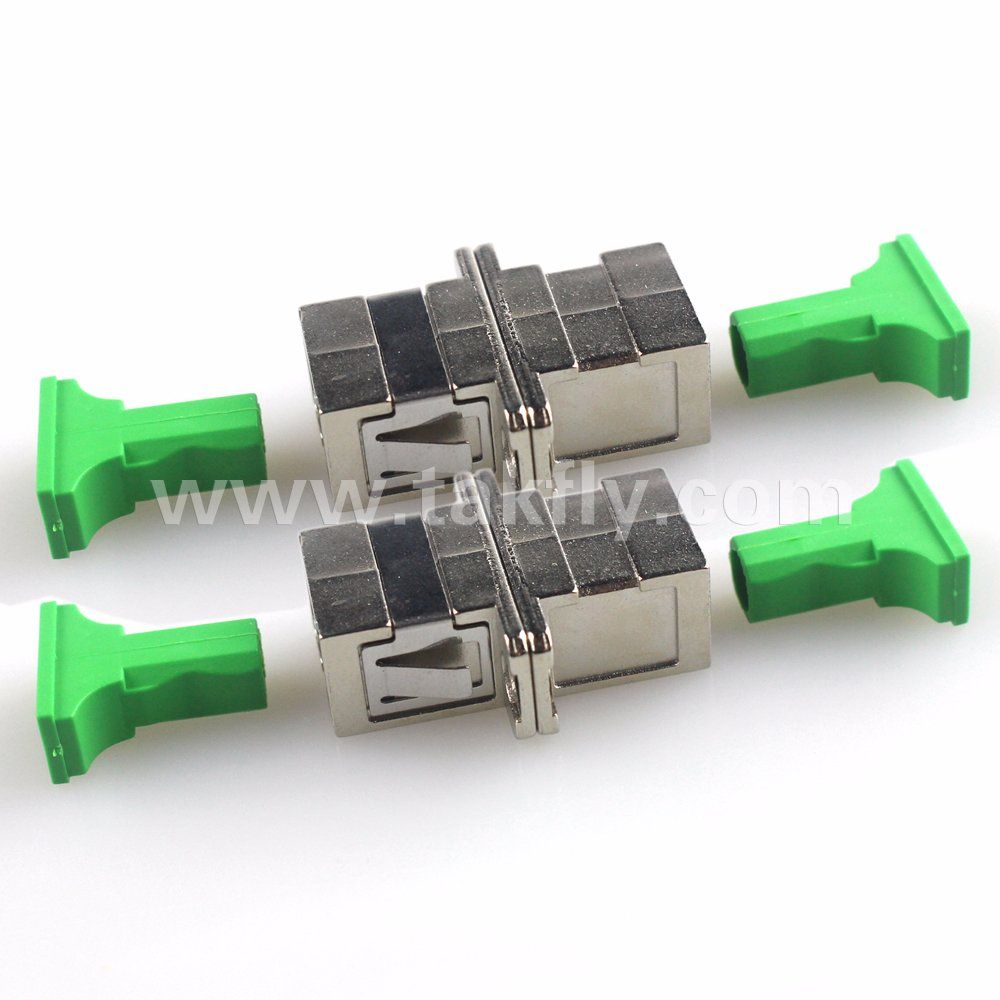

Low Loss 0.1dB Takfly Metal Sc APC Fiber Optic Adapter
SC Fiber optic adapters is also called mating sleeves, which are used to connect optical connectors of same type, such as FC, SC and ST. Optical adapters are widely uses in light distribution frame(ODF), the optical fiber communications equipment, the measuring appliance and so on.
The optical adapter connects fiber transmission by its placket tube. We offer various shapes of high-performance adapters to ensure maximum connectivity between the fiber jumper. In order to fix a varity of board level, our company designed various sophisticated fixed flange.
Features:
Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatibleAvailable without flanges or with flange for duplex, saving panel space
SC2 8Port high density for patch panel mount applications
Meet JIS5974 and bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts compliant with ROHS
Application:
Telecommunication
CATVLAN & WAN
Network
Broadband
FTTH
Sc Adapter/Fiber Optic Adapter Spec| Product | SC Adapter |
| Mode | S.M(Zroz) | M.M(P.B) |
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥45dB | -- |
| Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Return Loss Variability<5dB |
| Operating Temperature | -40ºC~+85ºC |
| Storage Temperature | -40ºC~+85ºC |
Ordeing information| CODE | SLEEVE | TYPE | HOUSING | FIGURE |
| H22 | 1. Zirconia
2. P.B
| 1. Simplex
2. Duplex
| 1.SM Blue
2.MM Beige
3.APC Green
4.SM Metal
| 1. With Flange
2. Without Flange
3. Customized Designs
|
What we can do for you??
Order inquiry: Keep working time from 8 AM to 23 PM to gurantee the first reply to clients,and 24 hours
no Cellphone power off
Order production: Keep very close touch with production department to gurantee the right delivery time to
clients Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoidlost and damage
After shipment: Keep tracking shipping status and reporting to clients
Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR
Any question about Sc Adapter/Fiber Optic Adapter,please leave me an inquiry or contact me diretly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
