| Prod Model: |
LMR500 Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Conductor: |
Cu/CCS/CCA |
| Inner Conductor Od: |
3.61 mm |
| Dielectric: |
9.40mm Foam PE |
| Shielding 1: |
Al Foil Bonded |
| Shielding 2: |
Tc/Bc Wire |
| Shielding Coverage: |
88%-98% |
| Jacket: |
PVC/TPE RoHS, UV |
| Jacket Od: |
12.7mm |
| Coaxial Cable LMR500: |
Coaxial Cable LMR500 |
| Impedance: |
50 Ohms |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
Coaxial |

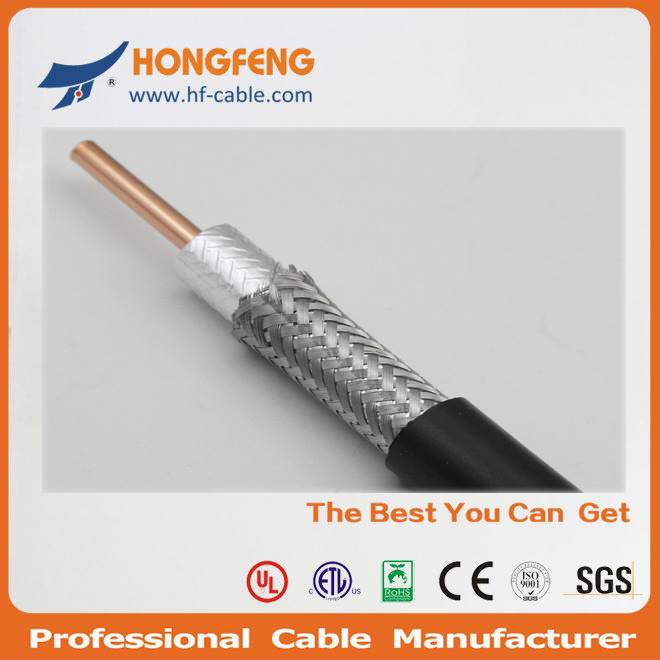

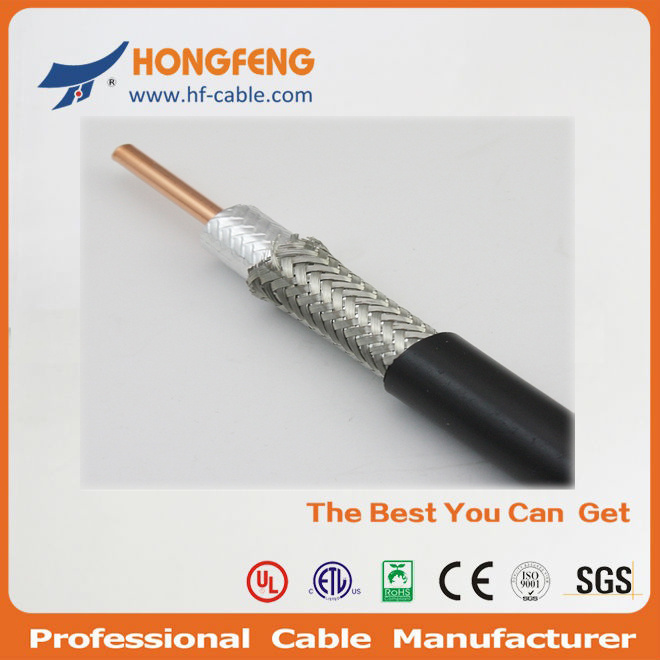

Product Description
coaxial cable lmr500:
Inner conductor: 3.61mm BC
Dielectric:9.4mm Foam PE
Wire Braided Shield: 90% TC Braiding
Jacket: 12.7mm PE
1. LMR500 50 Ohm RF cable Applications:
Jumper assemblies in wireless communications systems
Short antenna feeder runs
Coaxial Cable may be used in many applications
2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Q/A:
Q1: Are you a trading company or manufacture?
A1: HF cable is a professional manufacture, not a trading company, Thus, we can control your order from the first begining to the last.
Q2: What is your delivery time?
A2: Normally, our delivery time is 15-25 days after PO confirmation, but every inquiry will be based on the quantity.
Q3: What is your MOQ?
A3: Usally, the MOQ of our general coaxial cable product is 15-20M, but every inquiry will be considered individually.
Q4: What is your general payment term?
A4: Usally we require advanced payment, and the balance before shipment, but every inquiry will be quoted taking client, orders and other factors into consideration
Q5: What is your commerial item?
A5: Usually we adopt FOB Ningbo/Shanghai, CIF, CFR and others.
Q6: What is your main packing pattern?
A6: For inner packing: Wooden reel, plastic reel, paper reel, shrink wrap:
For outer packing: Carton box, pull-out box and pallet
Other packing methods are available after confirmation with clients
Q7: Can you produce the specfic cable strictly according to clients' requirement
A7: Yes, we can. We have talented technical team and production team.
Verified Information
This information was Verified by Bureau Veritas and is valid for the following period: 2013/09/28 --- 2014/09/27
The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >>
The competitive advantage of product line:
Coaxial Cable, it mainly exports to South America, Western Europe and Southern Asia. It is certified by CE and can be manufactured according to clients' requirements.
Production Capacity:
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|
| Coaxial Cable (for Communication) | 10,000 Kilometers/Month | 120,000 Kilometers |
Export Market Distribution:
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|
| North America | confidential | 3.0 |
| South America | confidential | 28.0 |
| Eastern Europe | confidential | 8.0 |
| Southeast Asia | confidential | 7.0 |
| Africa | confidential | 1.0 |
| Western Europe | confidential | 11.0 |
| South Asia | confidential | 28.0 |
| Domestic Market | confidential | 14.0 |
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|
| Extruding Machine 1 | SJ65*34 | 3 | 5.0 | Acceptable |
| Extruding Machine 2 | SJ65*28 | 3 | 5.0 | Acceptable |
| High Speed Braider | GSB-1A | 68 | 5.0 | Acceptable |
| Doubling Winder | No Information | 6 | 5.0 | Acceptable |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|
| RF Network Analyzer | B714ET | 1 | 5.0 | Acceptable |
| LCR Bridge | JC2812A | 1 | 5.0 | Acceptable |
| Density Tester | MP3002 | 1 | 5.0 | Acceptable |
| Pull Force Tester | JPL-2500N | 1 | 5.0 |
Product Range:
1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
