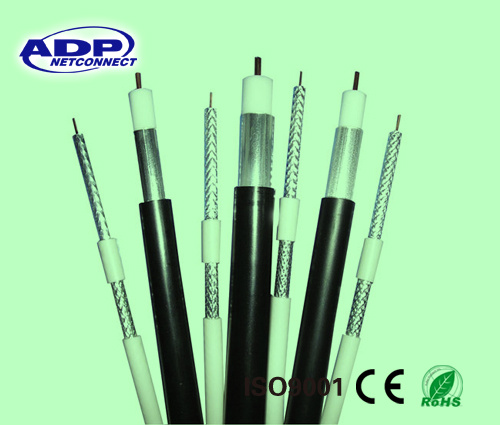

Low Loss 90% Shield Coaxial Cable RG6

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Coaxial Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Copper-Clad Steel
Type:	Telecommunication and Security

Product Description

COPPER-CLAD STEEL, FPE, BONDED LAMINATED ALUMINUM TAPE, 90% ALUMINUM BRAID, PVC JACKET, STEEL MESSENGER

CENTER CONDUCTOR:

1.02 mm COPPER-CLAD STEEL

DIELECTRIC:

GAS EXPANDED POLYETHYLENE

NOMINAL DIAMETER OVER DIELECTRIC: 4.57 mm

SHIELD:

1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC

2ND SHIELD: 128*0.16 mm ALUMINUM BRAID WIRE 90% COVERAGE

JACKET:

PVC JACKET

NOMINAL DIAMETER OVER JACKET: 6.91 mm

NOMINAL JACKET THICKNESS: 0.76 mm

MESSENGER:
NOMINAL DIAMETER OF MESSENGER: 0.051" (1.30 mm)
MINIMUM BREAKING STRENGTH: 180 lbs. (82 kgF)

ELECTRICAL PROPERTIES:

IMPEDANCE: 75.0 +/- 3.0 Ohms

VELOCITY OF PROPAGATION: 85.0% NOMINAL

ATTENUATION @ 68° F (20° C):

@ Frequency MHz
DB/100 ft. (MAX. )
DB/100 meters (MAX. )

5 MHz
0.58 dB
1.90 dB

55 MHz
1.60 dB
5.25 dB

83 MHz
1.95 dB
6.40 dB

187 MHz
2.85 dB
9.35 dB

211 MHz
3.05 dB
10.00 dB

250 MHz
3.30 dB
10.82 dB

300 MHz
3.55 dB
11.64 dB

350 MHz
3.85 dB
12.63 dB

400 MHz
4.15 dB
13.61 dB

450 MHz
4.40 dB
14.43 dB

500 MHz
4.66 dB
15.29 dB

550 MHz
4.90 dB
16.08 dB

600 MHz
5.10 dB
16.73 dB

750 MHz
5.65 dB
18.54 dB

865 MHz
6.10 dB
20.01 dB

1000 MHz
6.55 dB
21.49 dB
