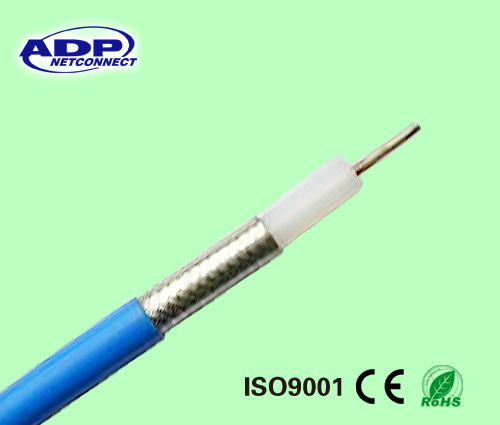

Low Loss CATV Coaxial Cable

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	DVD Player
Type:	Coaxial
Connector:	HDMI
Certification:	UL

Product Description

Sell 2012 High Quality Low Loss CATV Coaxial Cable RG6U
1, 1.02CCS+ 4.57FPE+ bonded AL foil +AL wire +6.8PVC
2, ISO, CE, RoHS
3, Low dB loss
4, OEM is ok
Coaxial Cables:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540 etc;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+ LAN cable;
1, Description
CCS, FPE, Bond Aluminum Foil Shielded, 90% Aluminum
Braided Shield PVC Jcaket, 305meter package
Center Conductor: CCS, Φ0.04"(1.02 mm)
Dielectric: Foam PE, Φ0.18" (4.57mm)
Bond Aluminum Foil Shielded: 0.00205" (0.052mm)
Aluminum Braided Shield: 0.0063" *6*16 ( 0.16*6*16mm)
Jacket: PVC FLAME-RE, 0.272"(6.91mm)
2, Mechanical characteristic
Minimum Bend Radius: 10.2mm(0.253")
Maximum Pulling Tension: 10.2mm(0.253");
3, Electrical performance
Impedance: 75± 3 ohms
Velocity of Propagation: 85% (Nominal)
Attenuation:
Frequency(MHz)
dB/100ft. (nominal. )
dB/100ft. (max. )
dB/100m(norminal. )
dB/100m(max. )
5
0.54
0.67
1.77
2.20
55
1.45
1.60
4.76
5.25
211
2.64
2.87
8.66
9.42
500
4.09
4.48
13.42
14.70
750
5.11
5.59
16.76
18.34
862
5.47
5.98
17.96
19.62
1000
5.99
6.56
19.65
21.46
1450
7.80
8.00
25.60
26.20
1800
8.60
8.80
28.20
28.90
2250
9.80
10.00
32.20
32.80
3000
11.30
11.90
37.10
39.00
4, Application
HFC
