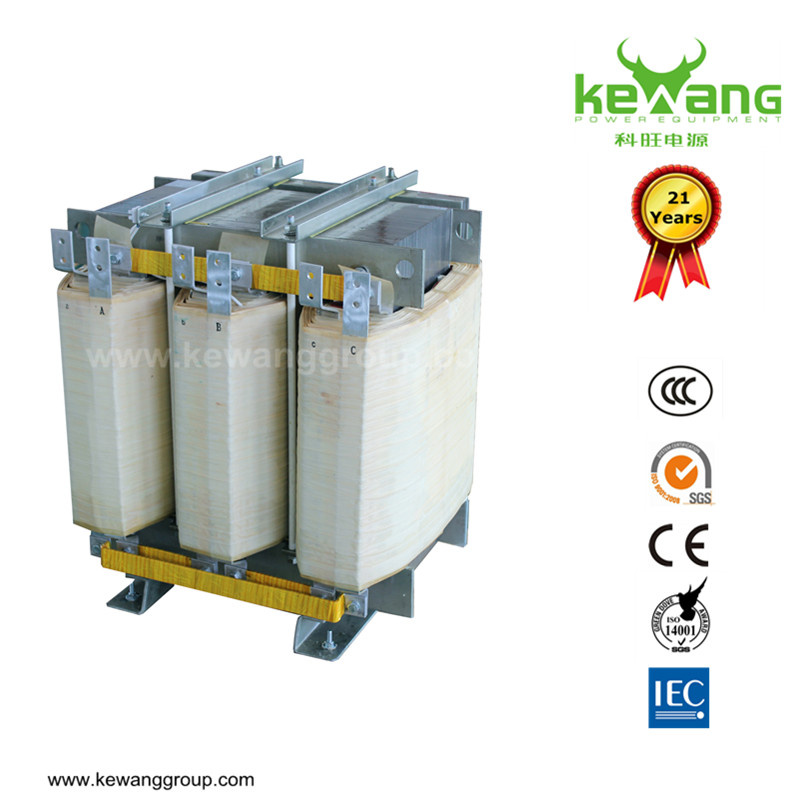

Low Noise Dry-Type Distribution Transformer (SC10-315kVA)
| Price: |
US $ 680/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
SC10-315KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: 50Hz/60Hz: |
Capacity:50kVA-2000kVA |
| Winding Coupling: Yna0 Dyn11: |
Insulation Class:a |
| Application: |
Lighting |
| Phase: |
Three |
| Coil: |
Shell-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Kewang |
Product Description
Low noise dry-type distribution transformer(SC 10-30KVA)
Fearture Advanced and reasonable structure, small volume light weight, convenient
installation, maintenance-free and economical.
Low noise and low loss, good heat dissipation performance, strong loading ability.
Moisture proof performance, it can run in 95% relative humidity
Low value of partial discharge, can guarantee long term safety operation in working voltage
It can increase 40-50%of rated capacity shortly in forced air cooling
Good insulation performance, high tolerance for lightning impulse level, and strong ability to bear sudden short circuit.
It is high mechanical strength and good thermal stability. With rational combination of insulation material, it can obtain the same temperature expansion coefficient with copper conductor.
The computer temperature controller automatic monitoring and protection provides reliable safeguard for transformer's safety operation.
It is with strong ability of flame retardant and automatic flameout. It can install in load center.SpecificationRated high voltage:10 (10.5,11,6,6.3,6.6.)kV
High voltage tapping range: ±5% or ±2*2.5%
Rated low voltage: 0.4kV, 0.415kV, 0.433kV
Connection symbol: Dyn11, Yyn0
Insulation level: LI75AC35/LI0AC3
Product standard
GB1094.11-2007(Instead of GB6450-1986)
GB/T10228-2008(Instead of GB/T10228-1997)
IEC60076-1993| Model | rated capacity
kVA | no-load
loss
W | Loading Loss
W(75ºC) | No-Load current
% | Sound Level
dB | Impedance voltage
% | Base gauge
mm | Weight
kg | Outer Dimension
mm(L*W*H) |
| SC10-30/10 | 30 | 190 | 610 | 2.4 | 43 | 4 | 550 | 360 | 940*600*800 |
| SC10-50/10 | 50 | 270 | 870 | 2.1 | 43 | 4 | 550 | 460 | 1010*610*930 |
| SC10-80/10 | 80 | 360 | 1200 | 1.8 | 45 | 4 | 550 | 630 | 1010*610*960 |
| SC10-100/10 | 100 | 400 | 1370 | 1.8 | 45 | 4 | 550 | 690 | 1010*610*980 |
| SC10-125/10 | 125 | 470 | 1610 | 1.6 | 45 | 4 | 550 | 750 | 1010*880*1040 |
| SC10-160/10 | 160 | 540 | 1850 | 1.6 | 45 | 4 | 550 | 920 | 1180*880*1055 |
| SCB10-200/10 | 200 | 620 | 2220 | 1.4 | 46 | 4 | 660 | 1130 | 1320*760*1085 |
| SCB10-250/10 | 250 | 720 | 2420 | 1.4 | 46 | 4 | 660 | 1280 | 1320*760*1155 |
| SCB10-315/10 | 315 | 890 | 3040 | 1.2 | 46 | 4 | 660 | 1390 | 1320*760*1155 |
| SCB10-400/10 | 400 | 980 | 3500 | 1.2 | 48 | 4 | 660 | 1760 | 1380*760*1315 |
| SCB10-500/10 | 500 | 1170 | 4290 | 1.2 | 48 | 4 | 660 | 2040 | 1380*760*1365 |
| SCB10-630/10 | 630 | 1350 | 5160 | 1.0 | 50 | 4 | 660 | 2200 | 1420*760*1410 |
| SCB10-630/10 | 630 | 1300 | 5240 | 1.0 | 50 | 6 | 660 | 2390 | 1450*760*1435 |
| SCB10-800/10 | 800 | 1530 | 6100 | 1.0 | 50 | 6 | 820 | 2570 | 1600*970*1480 |
| SCB10-1000/10 | 1000 | 1780 | 7150 | 1.0 | 52 | 6 | 820 | 3180 | 1600*970*1510 |
| SCB10-1250/10 | 1250 | 2100 | 8530 | 1.0 | 52 | 6 | 820 | 3630 | 1720*970*1615 |
| SCB10-1600/10 | 1600 | 2470 | 10300 | 1.0 | 55 | 6 | 820 | 4280 | 1720*1000*1825 |
| SCB10-2000/10 | 2000 | 3060 | 12720 | 0.8 | 55 | 6 | 1070 | 5530 | 1850*1200*1715 |
| SCB10-2500/10 | 2500 | 3600 | 15110 | 0.8 | 57 | 6 | 1070 | 6220 | 1920*1200*1955 |
| SCB10-1600/10 | 1600 | 2480 | 11390 | 1.0 | 55 | 8 | 1070 | 4410 | 1720*1000*1825 |
| SCB10-2000/10 | 2000 | 3060 | 14050 | 0.8 | 55 | 8 | 1070 | 5690 | 1850*1200*1715 |
| SCB10-2500/10 | 2500 | 3600 | 16630 | 0.8 | 57 | 8 | 1070 | 6400 | 1920*1200*1955 |
Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:
1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
