Low Power Cost SP-500W 12V with PFC Power Supply

Name: Low Power Cost SP-500W 12V with PFC Power Supply
Brand: all-electronics-online.com
SKU: 831932145
Availability: InStock
Rating: 5 (57 reviews)

Price:	US $ 41-51/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP-500-12
Output Current:	40A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	1.8kg
MOQ:	1-5PCS
Output Type:	Single
Warranty:	2 Years
Output Power:	401 - 500W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

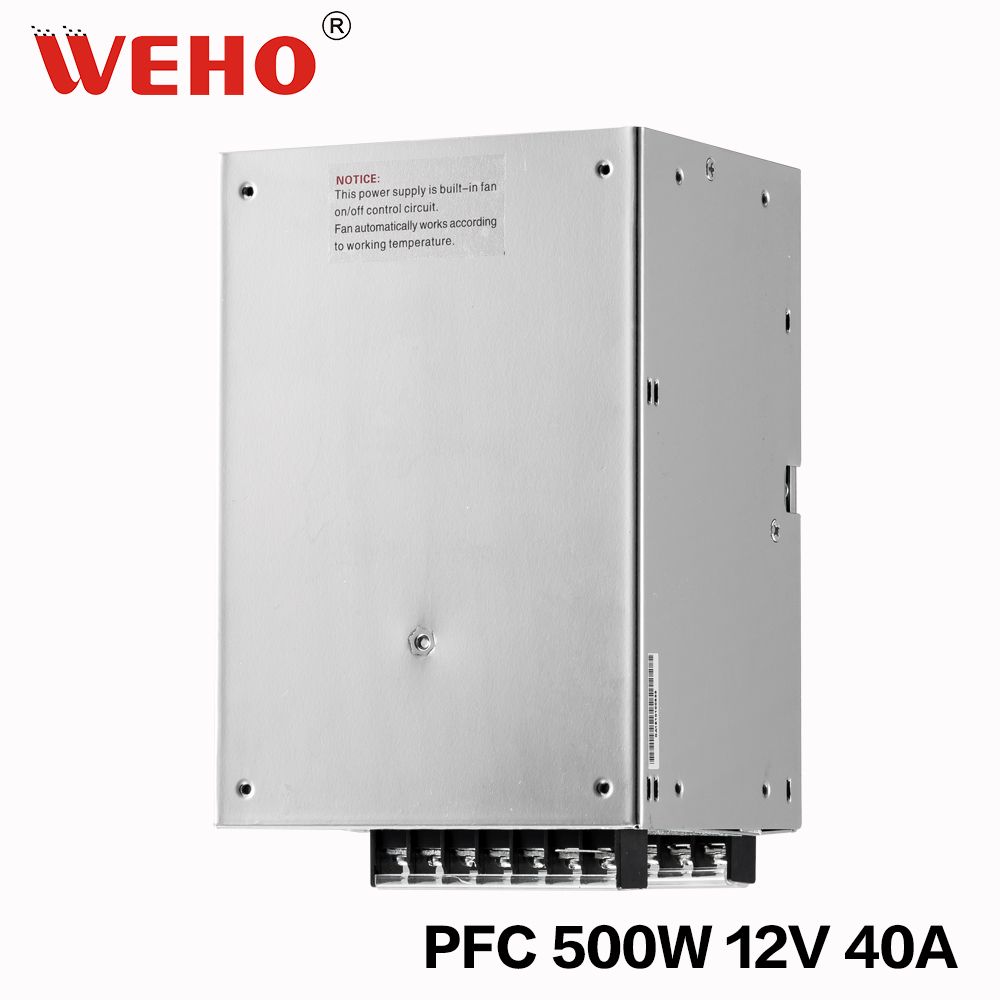

500W 12V Power Supply with PFC Function

Features:

1. PF>0.96@115VAC: PF>0.93@230VAC

2. AC input 85~264VAC 120~370VDC

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

Model Specification	SP-500-12	SP-500-13.5	SP-500-15	SP-500-24	SP-500-27	SP-500-48
DC output voltage	12V	13.5V	15V	24V	27V	48V
Output voltage error	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	40A	36A	32A	20A	18A	10A
Output current rage	0-40A	0-36A	0-32A	0-20A	0-18A	0-10A
Wave and noise	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	480W	486W	480W	480W	486W	480W
Efficiency	84%	84%	83%	85.5%	86.5%	87%
Adjustable range for DC voltage	10-13.2V	12-15V	13.5-18V	20-26.4V	24-30V	41-56V
AC input voltage range	88132VAC/176264VAC BY SWITCH 4763Hz;124370VDC
AC Input current	7A/115V 3.5A/230V
Power Factor	0.95/100240VAC
AC impulse current	18A/115V 36A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%135% TypePULSING HICCUP SHUTDOWN Reset: auto recovery
Over-voltage protection	13.816.2V	15.518.2V	1821V	27.632.4V	3136.5V	57.667.2V
Fan control,O.T.P.	RTH1 OR RTH2>=50 FAN ON,<=45 FAN OFF,>=70 Cut off output
Temperature coefficient	±0.03%(050)
Setup rise hold up time	1.5s,50ms,20ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval3KVAC,Input and enclosure1.5KVAC Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure500VDC/100M Ohms
Working temperature and humidity	-10+50,20%90%RH
Store temperature and humidity	-20+85,10%95%%RH
Overall dimension	18512093mm
Weight	1.8Kgs
Safety standards	UL1950,TUV EN60950
EMC standards	IEC1000-42,3,4,5,6,8,11 IEC100-3-2

Our Workshop:

Packaging:

Certificate:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
