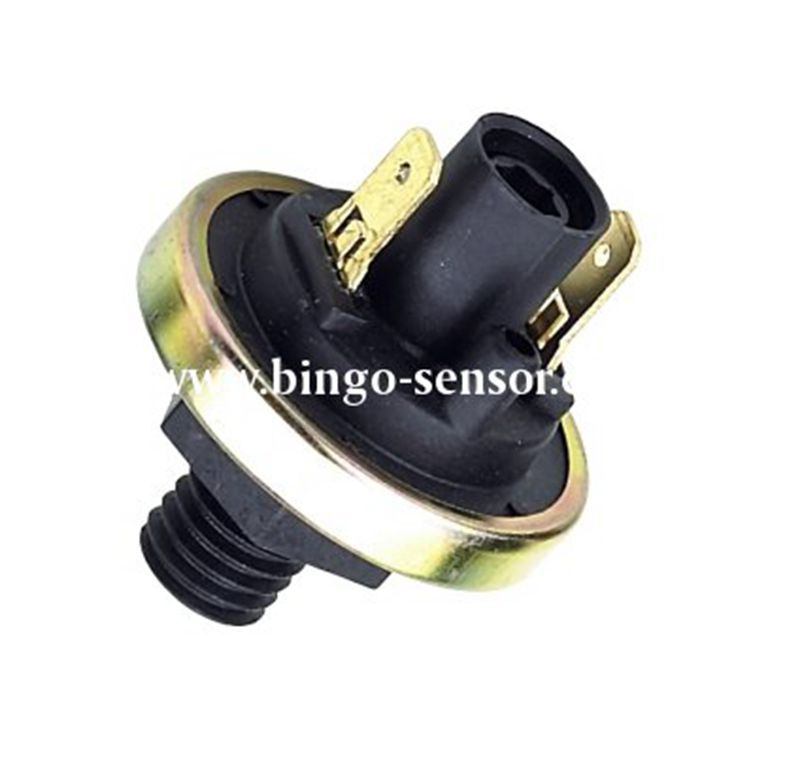

Low Pressure Gas, Air Pressure Switch

Name: Low Pressure Gas, Air Pressure Switch
Brand: all-electronics-online.com
SKU: 670470581
Availability: InStock
Rating: 4.7 (115 reviews)

Price:	US $ 1-11/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PS-LA7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contacts:	Normally Open
Application:	Industrial
Medium:	Non-Hazardous Gas Only (Air)
Electrical Feature:	1 Pole No 1 Pole Nc
Type:	Electronic

Product Description

We are wholesaler and exporter for Low Pressure Switch PS-LA7 in China since 2009. Quick response, fast delivery.
Introduction:
Low Pressure Switch PS-LA7 is designed as an control parts in pressure system. It is stable&reliable and can be used to sense positive/negative pressure with almost no hysteresis. Its unique terminal design allows the switch to be able to bear high current and can be installed conveniently.
Technical Data:

Model	PS-LA7
Medium	Non-hazardous gas only (air)
Electrical feature	1 pole NO 1 pole NC
Electrica rating	1 pole NO: 2.5(0.5) A 250V~1E4 1 A 250 V~5E4 20 mA 250 V~5E4 1 Pole NC: 2.5(0.5) A 250V~1E4 0.5 A 250 V~5E4 20 mA 250 V~5E4
Pressure Range	Pressure: 15 to 2500 mbar Tolerance: +/- 10% NO; +/- 15% NC Negative: 15 to 600 mbar Tolerance: +/- 15%
Max. working pressure	3000 mbar
Ambient temperature	Ambient: -10 to +85ºC
Electrical Connections	Tab terminals 6.4 x 0.8 mm Tab terminals 4.8 x 0.8 mm(1 pole NO only)
Pressure Connections	Tube Inlet 4.0 or 5.5 mm (up to 500 mbar) Threaded inlet M10 x 1 mm or 1/4 gas
Materials	Lower body: PA 66
	Upper body: PA 66
	Adjust. screw: PA 66
	Contact carrying parts: Brass Silver plated (gold plating on request) Membrane: Nitrile, EPDM, (Silicone, Perbunan on request) according to application
