Low Pressure Solar Water Heater Intelligent Controller Sr500 with Ce

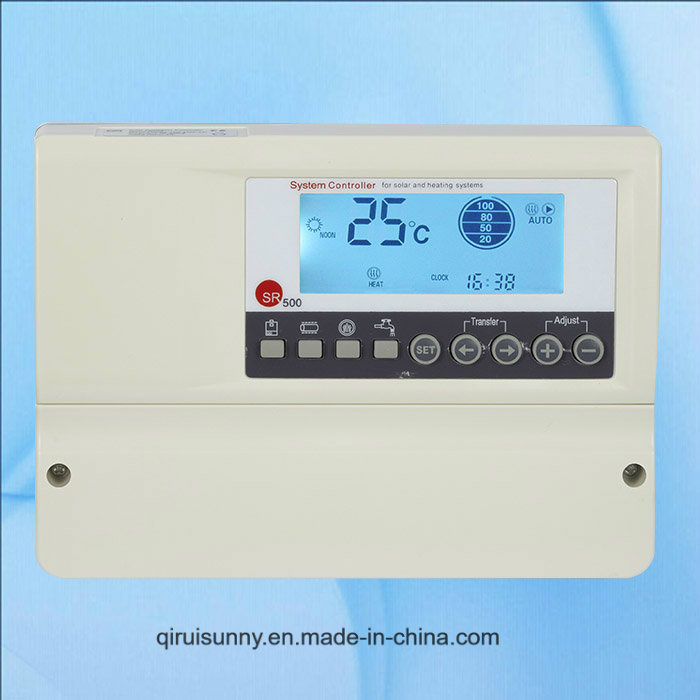

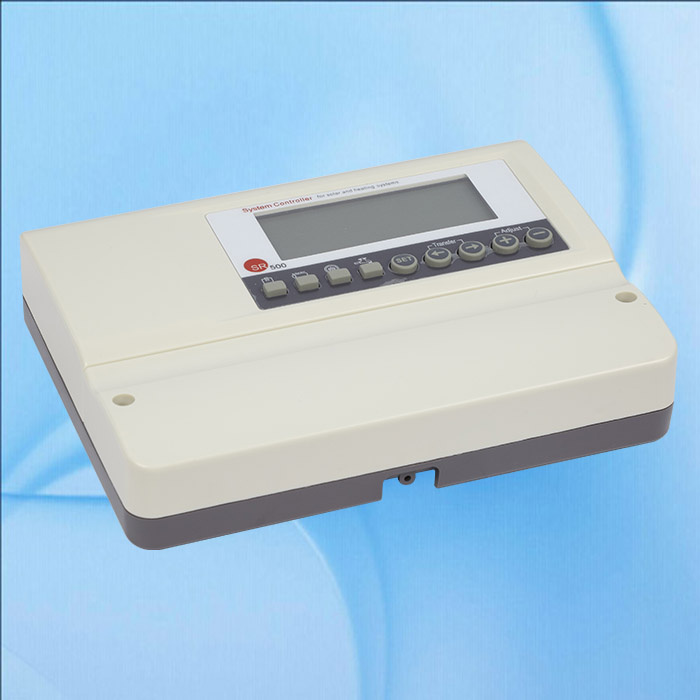

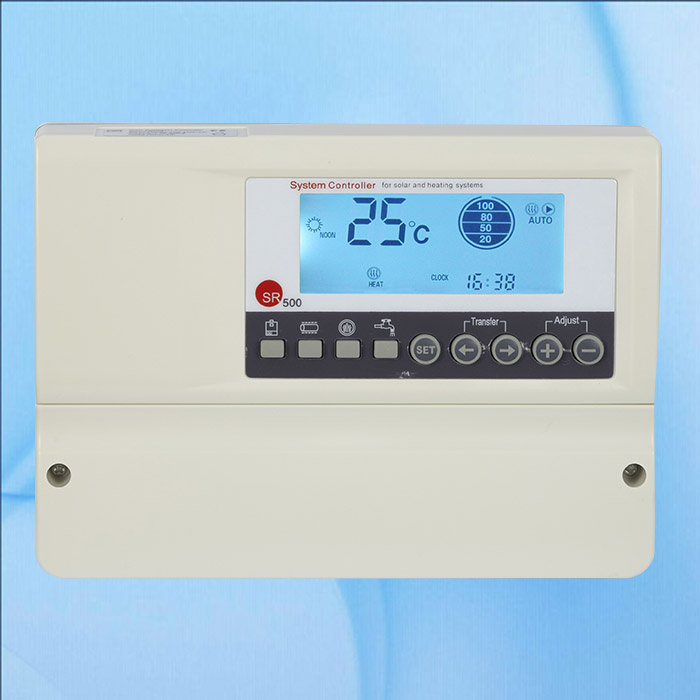

Name: Low Pressure Solar Water Heater Intelligent Controller Sr500 with Ce
Brand: all-electronics-online.com
SKU: 814527215
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 21/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR500
Power:	110V or 220V
Plug:	Europe, Japan, America etc.
Size:	210 mm X 145mm X 40mm
Intelligent Heating:	Less Than 3000W

Product Description

low pressure solar water heater intelligent controller SR500 with CE

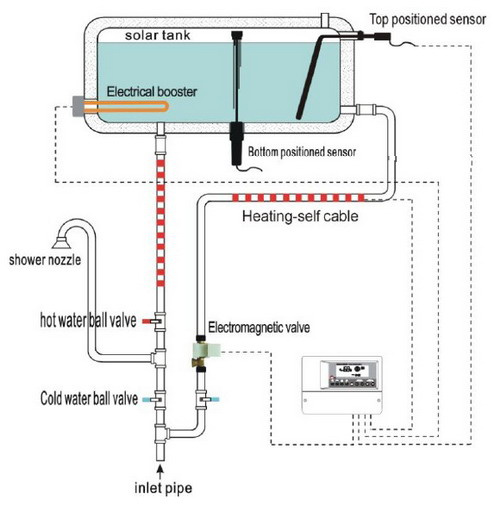

Suitable for open loop solar water heater: low pressure solar water heater(CNP-58) and Pre-heated solar water heater.

Model	SR500
Power	110V DC or 220V AC
Function	adding water in tank automatically; control electric heater automatically; show water temperature in water tank

The device type SR500 is fully automatically controlled by micro computer inside as well as designed with human personality.its sensor is adopted the advanced foreign technology which is avoid water leaking.water temperature and water level is displayed with large aized LCD.loading water can be automatically operated by its own.its main functions are water lever preset,low lever alarm,low water pressure loading,timer and manual control which makes this device safe convenient and practical.

Main technical data:

1,Dimension: 210 mm x 145mm x 40mm
2,Self power consumption: <3W
3,Measuring accuracy of temperature: ±2ºC
4,Temperature range of measurement: 0~99ºC
5,Maximum power of controlled pump: ≤600W
6,Power of accompanied electrical heating wire: ≤800W
7,Power of auxiliary electrical booster ≤2000W ( standard collocation),
≤3000W (not standard selection available )
8,Electromagnetic valve parameter: DC 12V AC 220V pressurized
valve and un-pressurized valve are available for selection
operation pressure of pressurized valve: 0.02Mpa ~ 0.8Mpa
suitable for providing water directly
operation pressure of un-pressurized valve: 0.0Mpa
connected with water tank or low pressure water providing

Main functions:

1, Time display
2, Water temperature display
3, Water level display
4, Auto mode
5, Water level pre-setup
6, Manual water loading
7, Temperature controlled water loading
8, Timing water loading
9, Water loading when tank is lack of water
10,Compulsive water loading
11,Increasing Water pressure during water is loaded.
12,Manual heating
13,Timing heating
14,Hot water circulation
15,Hot water pipe insulation
16,Low pressure protection
17,Collector tube protection
18,Memory protection when power is failure
