Low Pressure Solar Water Heater Intelligent Controller Tk-8A with Ce

Name: Low Pressure Solar Water Heater Intelligent Controller Tk-8A with Ce
Brand: all-electronics-online.com
SKU: 814197085
Availability: InStock
Rating: 4.6 (59 reviews)

Price:	US $ 21/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK-8A
Power:	110V or 220V
Plug:	Europe, Japan, America etc.
Size:	20133.6cm
Intelligent Heating:	Less Than 2000W

Product Description

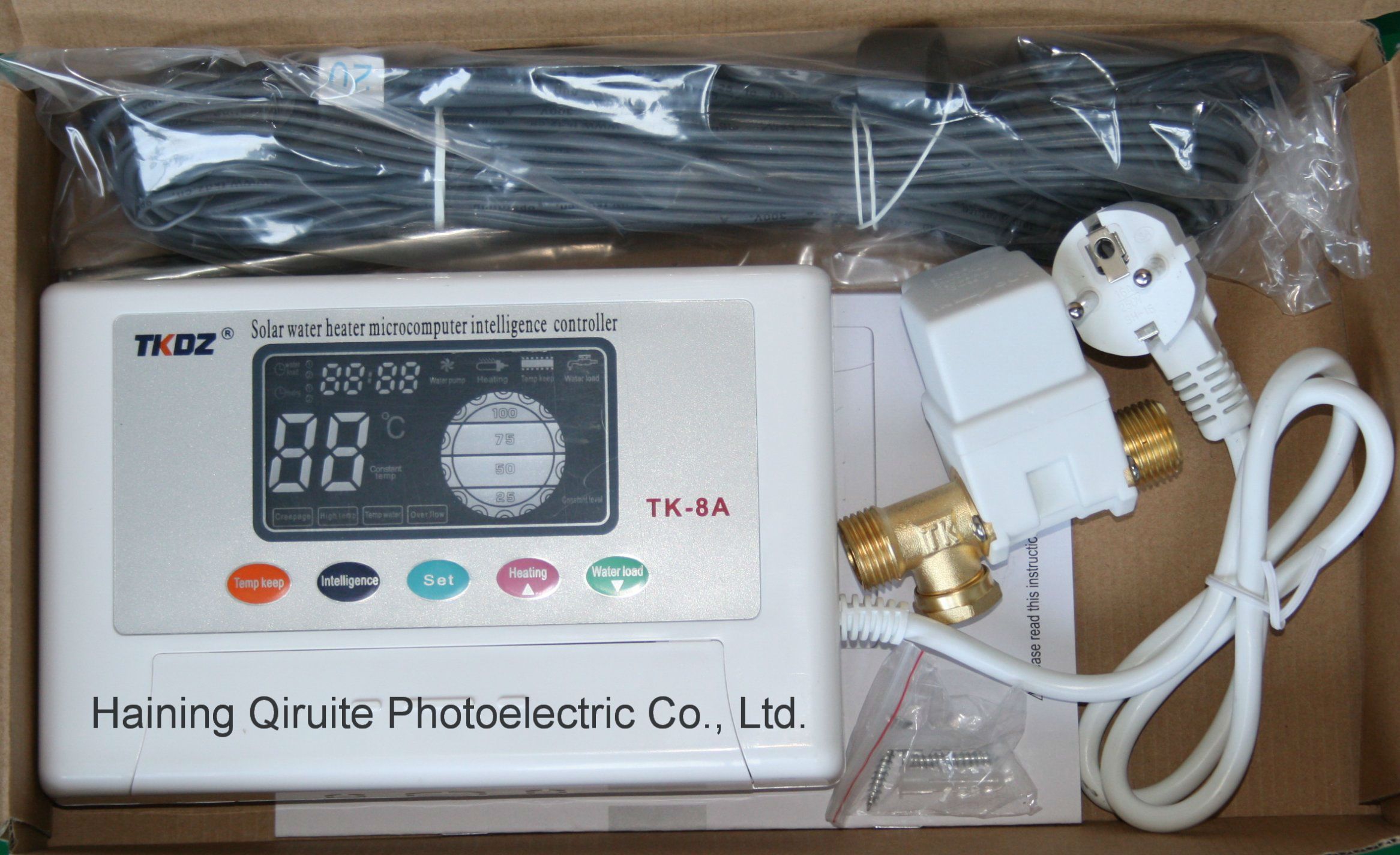

low pressure solar water heater intelligent controller TK-8A with CE
Suitable for open loop solar water heater: low pressure solar water heater(CNP-58) and Pre-heated solar water heater.

Model	TK-8A
Power	110V DC or 220V AC
Function	adding water in tank automatically; control electric heater automatically; show water temperature in water tank

1, Technical datas:

<1> Power: 220VAC±10%
<2> Size: 20x13x3.6cm
<3> Temperature detective precision: ±2°C
<4> Temperature detect range: 0~90°C
<5> Power loss: <5W
<6> Auto control supercharging pump/Electric heating belt ≤ 500W
<7> Intelligent heating ≤ 2000W

2, Main functions:

<1> Beijing standard time
<2> Start self-checking
<3> Water temperature preset
<4> Water level preset
<5> Water insufficiency loading
<6> Temperature loading
<7> Constant water level coding
<8> Manual control
<9> Second time timing loading
<10> Second time timing heating
<11> Pipe heat keeping
<12> Pipe supercharging
<13> Constant temperature heating
<14> Electricity leakage protection
<15> Auto drainage
<16> High temperature loading protection
<17> Dry heating prevent
<18> Electric heating belt fire protection
<19> Power off memory

Haining Qiruite Photoelectric Co., Ltd. was founded in 2001 and specialized in producing of solar water heaters(mainly), solar lights. In addition, we also have the capacity of researching, developing, designing, manufacturing and installing large scale solar-heat-collector projects and its central-control system. Our factory covers an area of 28, 000 square meters and has an annual production capacity of 100, 000 solar water heaters.
We trust product quality is our life. Therefore, we have got the certificates of Solar keymark, CE, ISO9001: 2000 and CCC. Our production line include over fifty working procedures, and we manipulate strictly under the measure requirements and working order. Our products are exported to many countries with good honor, such as EU, North America, Middle East, South Africa, Southeast Asia and etc.
We can guarantee high product quality. According to different individual requirements such as area, climate and consumption level, more and more productions come into the market from Qiruire. All our successes are based on the research and analysis of the market. If you are interested in any of our products, please feel free to contact us without hesitation. and we are looking forward to having opportunities to become your future honor supplier.
