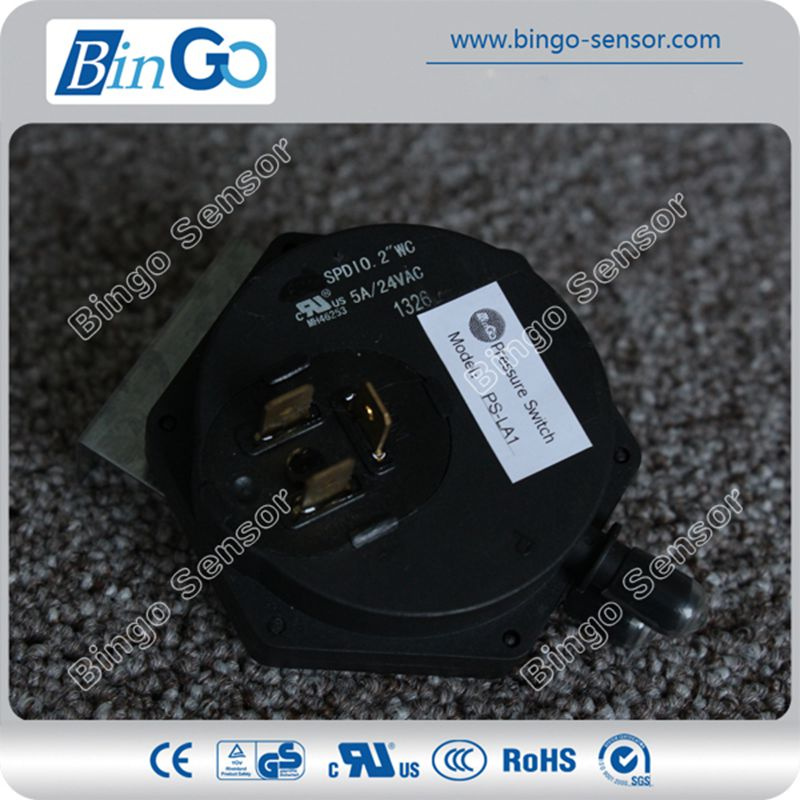

Low Pressure Switch for Water Heater, Furnace

Prod Model:	PS-LA1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	PS-La1
Media:	Air, Natural Gas
Operating Pressure Range:	0.15" W.C. to 34" W.C.
Proof Pressure:	100" W.C. (3.6 Psi)
Type:	Electronic
Application:	Vehicles
Explosion-proof Type:	Flameproof
Contact:	Normally Open
Brand:	Bingo

Product Description

1. Introduction:

PS-LA1 switch is designed for using in the Heating, Ventilation, Air-conditioning (HVAC) industry, where safety and reliability are essential. This model switch has been proved to be a viable solution for gas-fired warmer, hot air furnace, water heater and other heating appliances.  Available in pressure, vacuum and differential models with fine silver or gold-platinum-silver alloy contacts, it is capable of sensing pressure as low as 0.05inches of water and switching current up to 5A resistive, 2.5A inductive.Smaller and lighter than any other HVAC pressure switch, PS-LA1 is built for the same temperature range and operating life as conventional switches made of stamped steel. PS-LA1 will perform equally well in other applications which demand low OEM unit cost, robust design, set point accuracy, and high reliability.

PS-LA1 features a unique integral snap switch, with positive snap action and self-wiping silver contacts for ultra-reliable switching. Factory calibrated units maintain set point tolerances of ±10% against the temperature range of -40 °F~185 °F, due to its molded precise silicone diaphragm and the stable body.

2. Technical Parameter:


Model  PS-LA1 Media  Air, natural gas Operating Pressure Range  0.15" W.C. to 34" W.C.  Proof Pressure  100" W.C. (3.6 PSI) Operating Temperature   -40 °C ~ 85 °C (-40 °F~185 °    F) Contact Arrangement  SPST or SPDT Electric Rating  Resistance: Initial: <50 milliohms  Current: 100mA minimum, 5A resistive maximum                 (fine silver alloy contacts);                 15mA minimum, 0.5A resistive maximum                 (gold-platinum-silver alloy contacts); Terminals  6.3 mm (0.25") copper alloy Connection  Inlet 0.25" for tube connection   Agency Approval  UL, CE

Conversion:  1"W.C. = 1 inch/H2O=249Pa   1mbar=100Pa

3. Our service:

1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.

4. Guarantee:

1.12 months warranty for most of our products;
2. We will arrange delivery of the goods on time;
3. Within the warranty period, we will bear all the quality problem of our products;
4. Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5. Without any problem, we will gain the feedbacks of our products to help improve better products.
