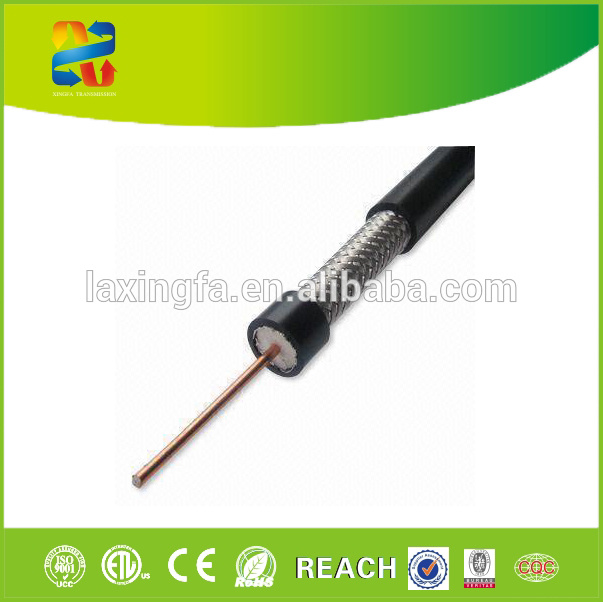

Low Price 50 Ohm Coaxial Cable LMR 400 Wire and Cable

Low Price 50 Ohm Coaxial Cable LMR 400 Wire and Cable
Price: US $ 0.5-1km
Min Order: 30km
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: coaxial cable lmr 400
Center Conductor: Stranded Bare Copper/Copper Clad Steel
Dielectric: Solid PE
Shield: Bonded Al Foil
Braiding Wire Material: Al or Bc or Tinned Copper
Jacket: PVC
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: Reach ETL
Type: Coaxial Cable

Product Description

 Low Price Coaxial Cable for Communication Antenna Telecom LMR400

Cable description

Construction



Center Conductor:              7*0.75mm Strand copper

Dielectric:                             7.25mmSolid PE

Braid:                                    Tin/BC Copper

Braid Coverage:                   95%

Jacket:                               10.1mm+0.1mmPVC



Characteristics





Sparker Test:                    4000VAC

Impedance:                      50+3 Ohm

Capacitance:                     30.8+3pF/m

Velocity of Propagation:   66.0%



Attenuation                                                                   {@68 *   F.(20 * C.)}



Attenuation:

Frequency (MHz)                                 Maximum (dB/100 ft.)

         100                                                       2.20

         400                                                       4.60

         1000                                                     9.00



Packing

1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients' request


Workshop
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
