| Prod Model: |
GS-LFD3015 |
| X Axis Travel: |
300mm |
| Y-Axis Travel: |
400mm |
| Z Axis Travel: |
175mm |
| W-Axis Travel: |
100mm |
| Maximum Operating Speed: |
5 M / Min |
| Thickness: |
20 ~ 60mm |
Product Description
Description

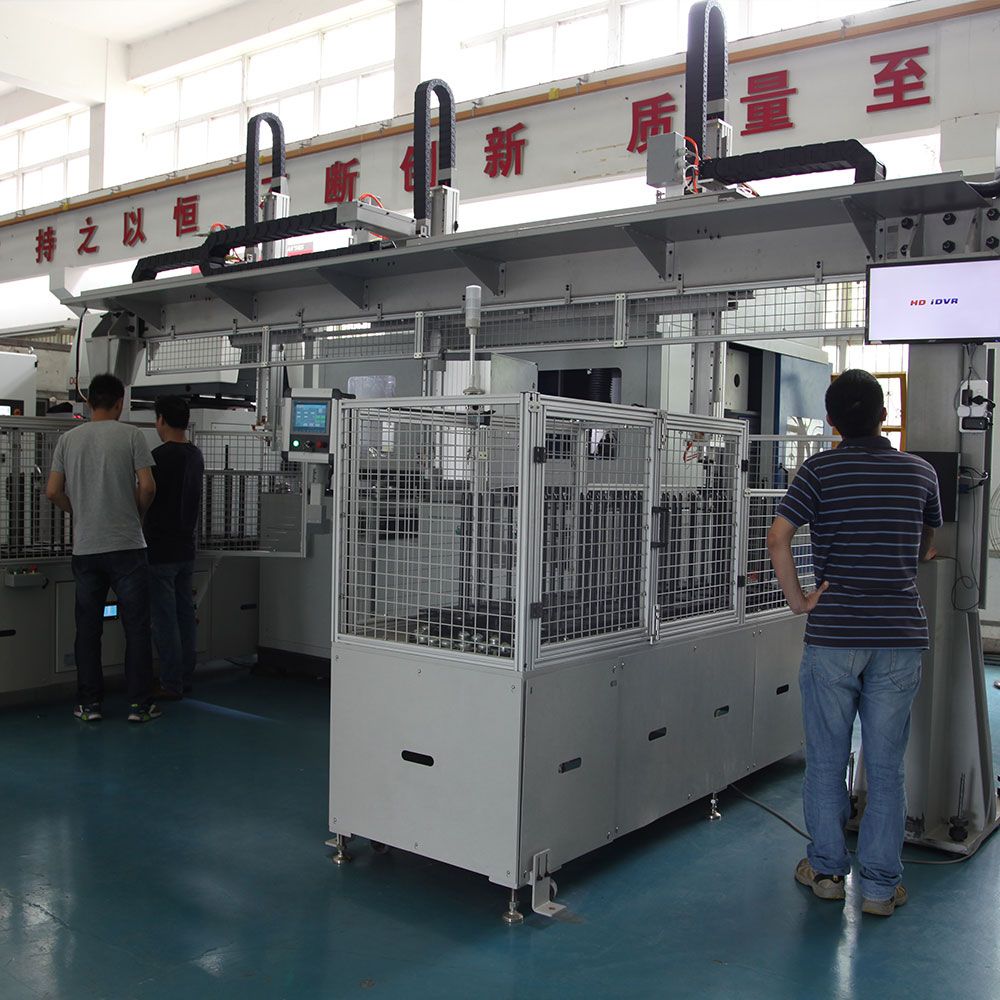

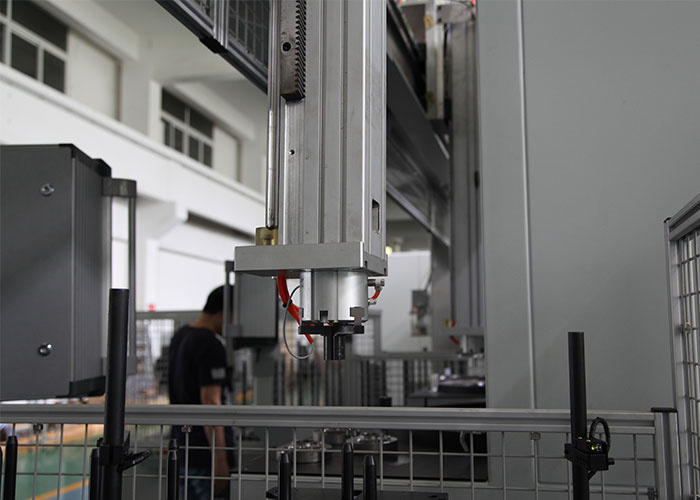

HAN'SGS-HC03 laser welding machine mainly consists of high power Rofin- DC030 / DC035 laser source, chiller unit, processing machine, automatic preheating machine, loading and unloading manipulator, CNC system and so on.The control system can realize the integrated control of the whole system such as machine tool, laser, water cooling unit and protective gas unit. The parameter adjustment is convenient, centralized display and strong anti-interference ability.The system hardware and software configuration is reasonable, stable and reliable operation, durable, equipment, laser protection to meet the safety requirements of the operator's life.This gear laser welding machine for the automotive gearbox double gear, double gear shaft laser welding special equipment.
Performance
| Laser | Rofin-DC030 laser (fiber optic, optional) |
| Output wavelength | 10.6μm |
| Output power range | 300-3000W |
| Power stability | ±2% |
| Laser beam diameter | 20-25mm |
| Beam stability | ≤0.15mrad |
| Water-cooled unit | LSJR-500BX cooling system |
| Rated cooling capacity | 50KW |
| CNC machine tools (X, Y, Z axis) |
| positioning accuracy | ≥±0.02m |
| Repeatability | ≥±0.01mm |
| Four stations automatically feeding turntable | 0.9s / station |
| Processing parameters and requirements |
| Maximum welding depth | 5mm |
| The minimum weld width | 1mm |
| Welding speed | 1.5-3.0m/min |
| Workpiece size range |
| Disk teeth outside diameter | φ40-φ130mm |
| the inside diameter of | φ35-φ70mm |
| thickness | 20-50mm |
| Gear shaft maximum length | 350mm |
| Gear shaft positioning maximum diameter | φ35mm |
| Control System | Siemens 828D + auxiliary PLC |
Welding machine main technical parameters
1.X axis travel: 300mm (servo motor drive).
2.Y-axis travel: 400mm (servo motor drive).
3.Z axis travel: 175mm (servo motor drive).
4.W-axis travel: 100mm (servo motor drive).
5.U-axis Rotating speed: 7.5 ~ 37.5rpm (i = 80) (servo motor drive).
6.X, Y, Z axis: positioning accuracy ≥ ± 0.02mm.
7.Repeat positioning accuracy ≥ ± 0.01 mm.
8.Maximum operating speed: 5 m / min.
Control system
The welder host uses SINUMERIK 828D BASIC M control system, compact structure, set of display, CNC keyboard and CNC system in one.A small number of interfaces and cables ensure that the system is easy to use.The operation panel is durable and it's made of die-cast magnesium alloy.In the harsh working conditions, SINUMERIK828D can still maintain a good running state.The
SINUMERIK 828D is completely maintenance-free due to the abandonment of consumable parts such as fans, hard drives and spare batteries.With advanced NV-RAM technology, even after long downtime, the machining program can still be kept intact.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
