Low Price Large Quantity 50 Kg Bathroom Scale Sensor

Name: Low Price Large Quantity 50 Kg Bathroom Scale Sensor
Brand: all-electronics-online.com
SKU: 684802631
Availability: InStock
Rating: 4.9 (33 reviews)

Price:	US $ 1.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-C5
Capacity:	5kg to 50kg
Accuracy:	0.1%Fs
Signal Output:	1.0mv/V
Recommended Excitation:	6~12VDC
Application:	Body Scale, Personnel Scale, Kitchen Scale
Pattern:	Micro Load Cell
Out-Wire:	3 Wires
Material:	Alloy Steel

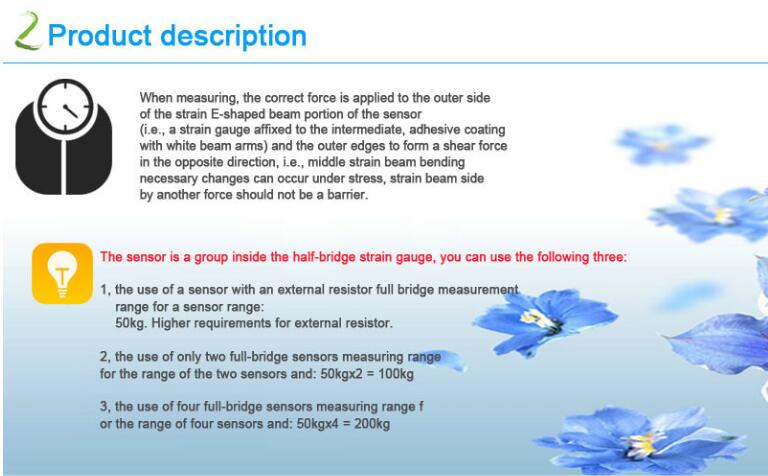

Product Description

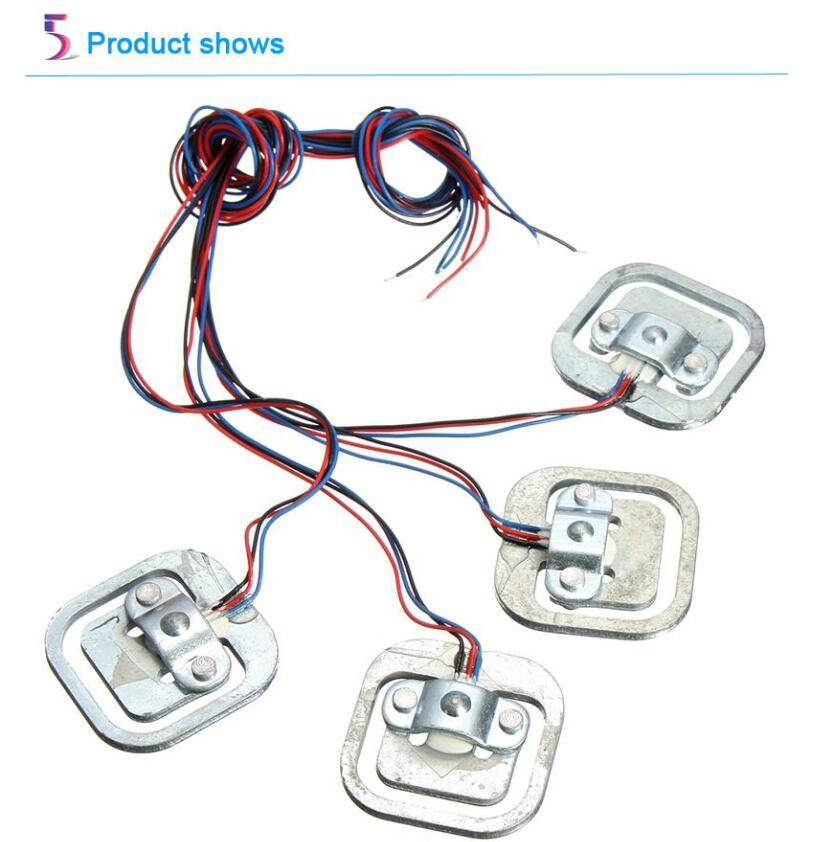

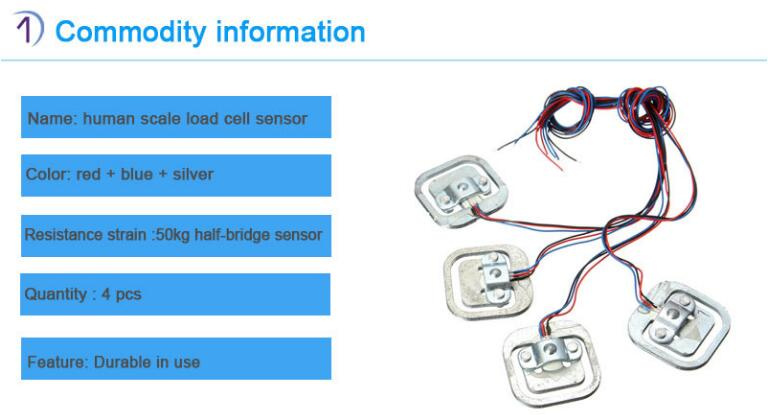

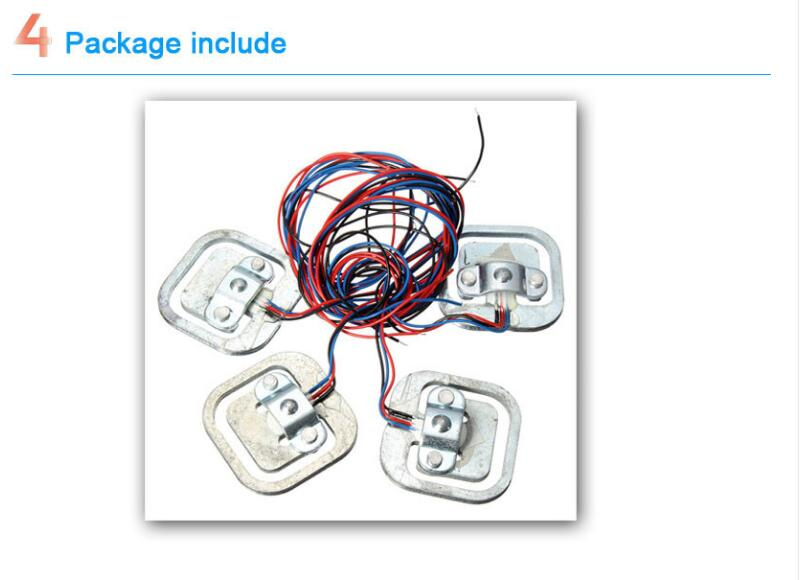

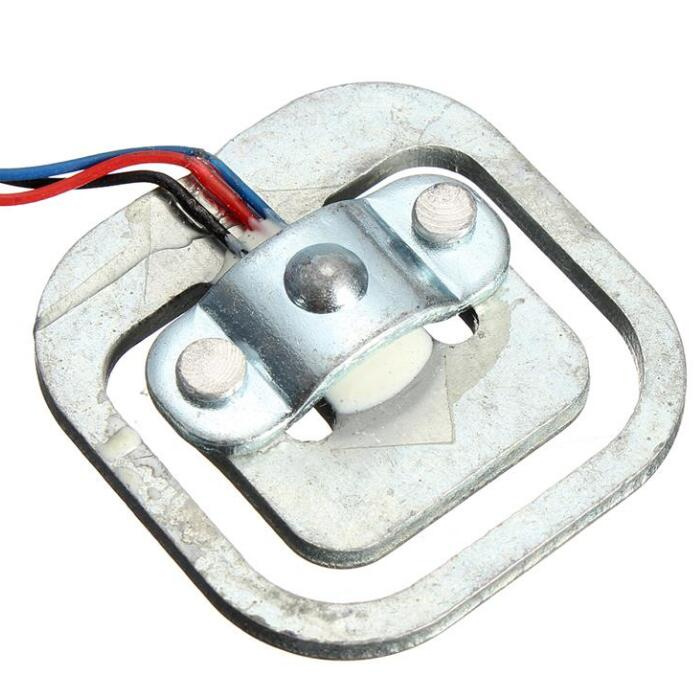

Low cost 50 kg Load Cell

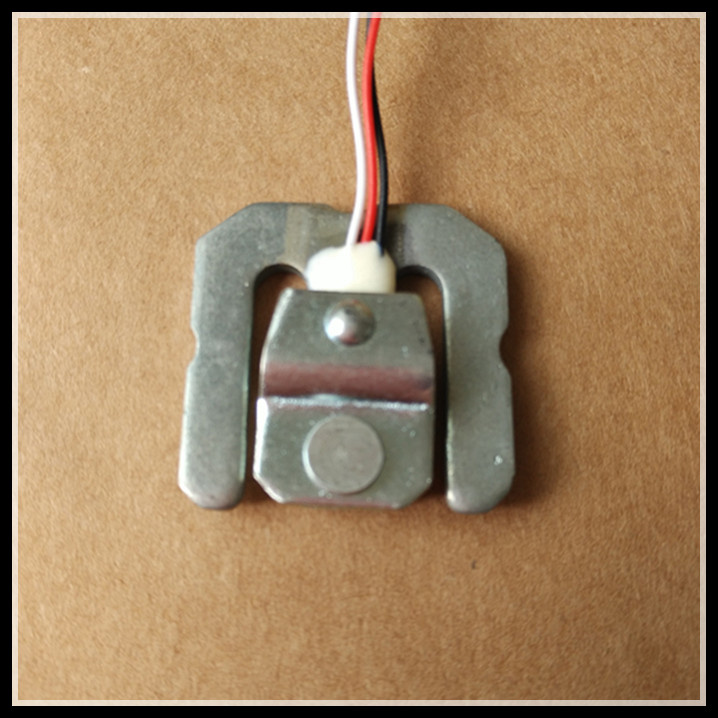

QH-C5 micro load cells are available in the capacity from 5kg to 50kg.
Alloy steel construction.
Silicon adhesive, hermetically sealed, anti-oil, anti-corrosion and suitable for a variety of environment.
Integral structure and easy installation.
Suitable for hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighting systems.

Features:

Capacity:5kg to 50kg.
Defend grade: IP65
Tension and/or compression loading.
Reliable performance, integral structure and easy installation.

Technical Specifications:

SPECIFICATIONS	UNIT	RESULTS
Capacity	Kg	5,10,15,20,25,30,50
Rated Output	mV/V	1.0±0.15
Combined Error	%FS	≤±0.3
Non-linearity	%FS	≤±0.1
Hysteresis	%FS	≤±0.2
Repeatability	%FS	≤±0.2
Creep(5min)	%FS	≤±0.1
Temp. Effect on SPAN	%FS/10^oC	≤±0.2
Temp. Effect on ZERO	%FS/10^oC	≤±0.2
Input Resistance	Ω	1000±10
Output Resistance	Ω	500±10
Recommended Excitation	V	6~12
Maximum Excitation	V	15
Insulation Resistance	MΩ	≥5000
Compensated Temp. Range	^oC	-10~+40
Operating Temp. Range	^oC	-20~+60
Safe Overload	%FS	120
Ultimate Overload	%FS	150
Wiring Code	excitation: Red signal(+): Black signal(-): White

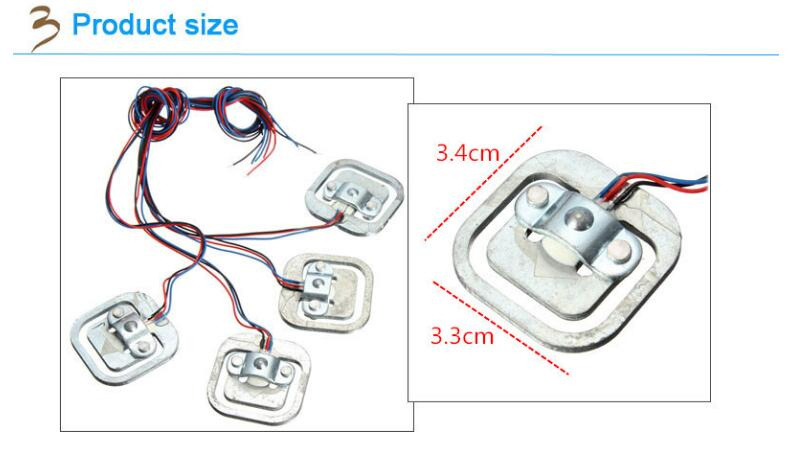

Cable	φ0.8×350mm

1. What is the MOQ?

If we don't have it in stock, the MOQ is 5 pcs

If we have it in stock, we can ship you even 1 pc as sample.

2. What is lead time?

If we have it in stock, we can ship it to you within about 7 working days.

If we don't have it in stock, the lead time will be 30-45 days.

3. What is the payment terms?

T/T, Western Union, is acceptable.

4. What is the express delivery?

DHL, Fedex, TNT ,EMS, UPS etc.

We will choose the safe and cheapest way for you to reduce your cost.

Economic shipping way: by sea, by air transport

If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.

5. What is the quality guarantee?

Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.

6. Is there any after-sale service?

After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
