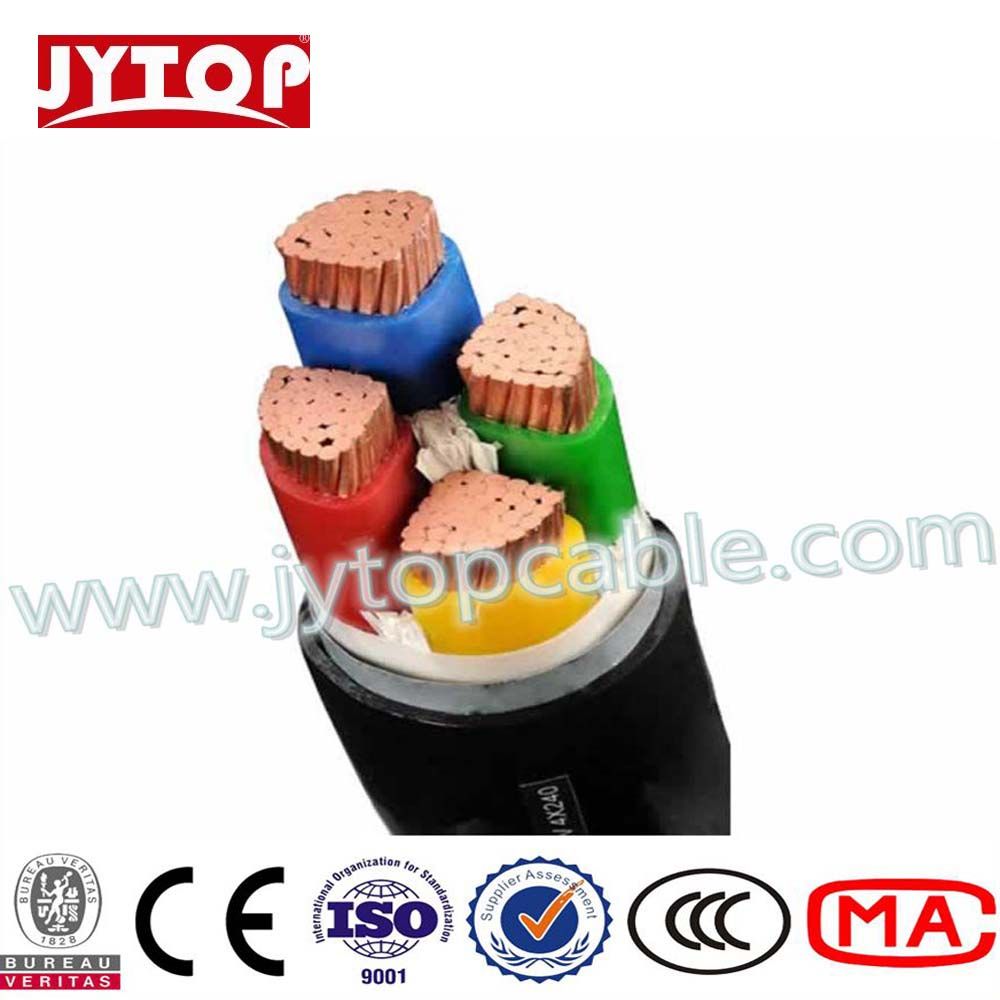

Low Smoke Zero Halogen Power Cable for Size of 4X120

Standard:IEC 60754-1/BS6425-1,BS 6004

• Application:

  Low smoke zero Halogen cable used in public and government buildings and where there is sensitive electronic equipment (i.e. Hospitals, Supermarkets, Airports, Control Rooms & Computer Suites) these cables are designed for increased safety in the case of a fire:Reduction in hazardous fumes which can cause injury when inhaled; Reduction in corrosive chemicals which can cause damage to electronics; Most cables used in installations have been insulated with PVC or similar materials.XLPE Insulated halogen-free low smoke cable may prevent human from being suffocated by toxic gas generated from accidental burning of wire and cable.Such as fire-resistant flame-retardant cable, do not catch fire easily and do not spread the fire or give off toxic gas when on fire.They are suitable for using in the circumstance with fairly strict flame retardant and environmental protection requirement,such as high-rise buildings,hospitals,subways and shopping malls.

• Property:
  1) The temperature of laying cable is not lower than 0oC.
  2) Max. continuous normal operating Temperature: 90oC
  3) Max. permissible temperature at short circuit (5s. at longest): 250oC.
  4) Permissible bending radius:
  Single core: ≥20(d+D)±5%.
  Three-core:≥15(d+D)±5%
  (D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).

  LSZH Cables intended to fulfil this type of function are often labelled as one of the following:
  LSZH - Low Smoke Zero Halogen
  LSOH - Low Smoke Zero Halogen
  LSF - Low Smoke and Fume
  OHLS - Zero Halogen Low Smoke
  Both LSZH and LSF are used to limit smoke, fumes and halogen given off in fire conditions.

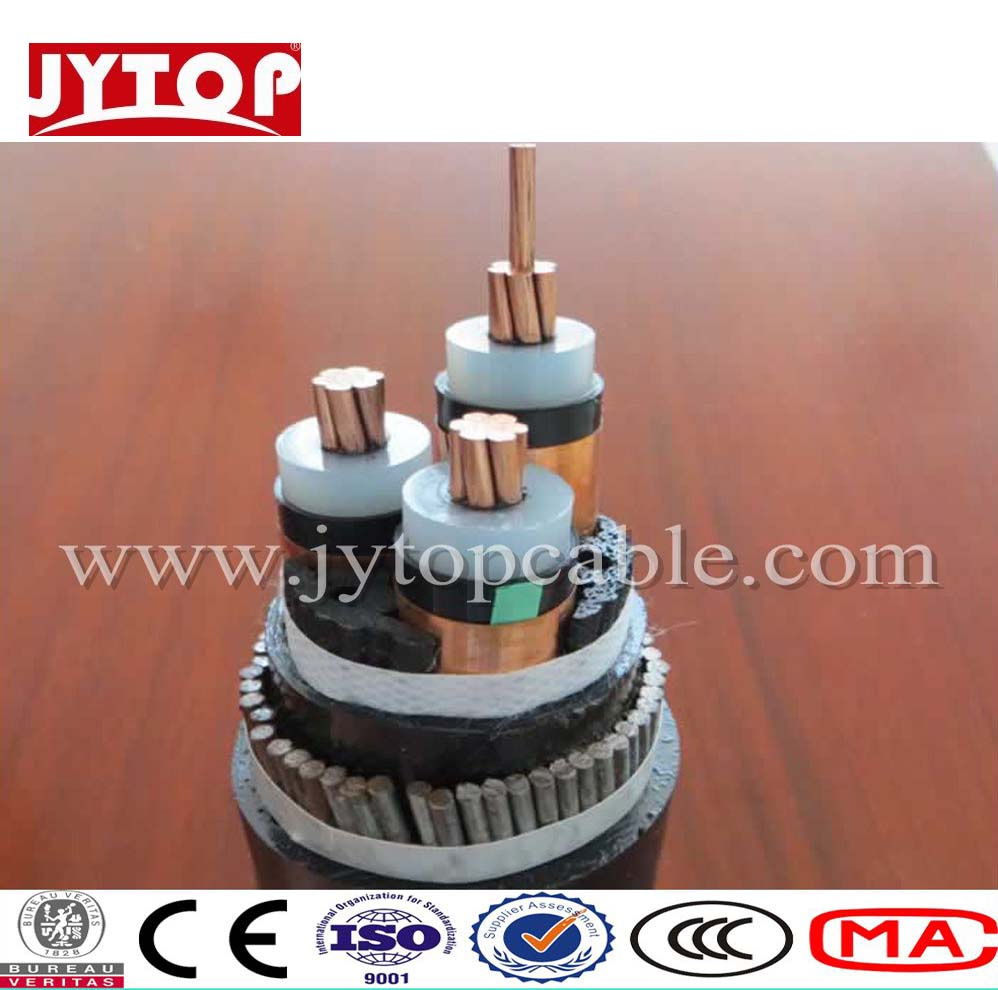

• Construction:

  Conductor	Solid, Stranded Copper or Aluminum
  Insulation	XLPE
  Amouring	1)Non-armoued  2)Steel tape armoured (STA)  3)Steel wire armoured(SWA)  Aluminum wire armoured(AWA)
  Sheath	LSOH material




Zhengzhou Jinyuan Wire and Cable Co.,ltd, is located in Zhengzhou city, the capital of

Henan province. As a professional cable manufacturer, JYTOP  has been produced various kinds of

customrized cable based on high quality, excellent service and competitive market price. Our factory,

Henan Castle Cable Co.,ltd founded in 1986, formerly known as Zhengzhou Castle Cable Factory and

Zhengzhou Castle Industry Co.ltd, is a large joint stock enterprise specialized in R & D, production

and sales of electrical wires and power cables. Castle Cable is one of the key high-tech enterprises of

Henan province, with an area of 100,000 square meters and construction area of 60,000 square

meters. At the end of 2014, the company's total assets have reached more than 100 million RMB.

There are more than 300 staffs, among which, more than 40% are good at technology and

management with colleage degree or above level.
