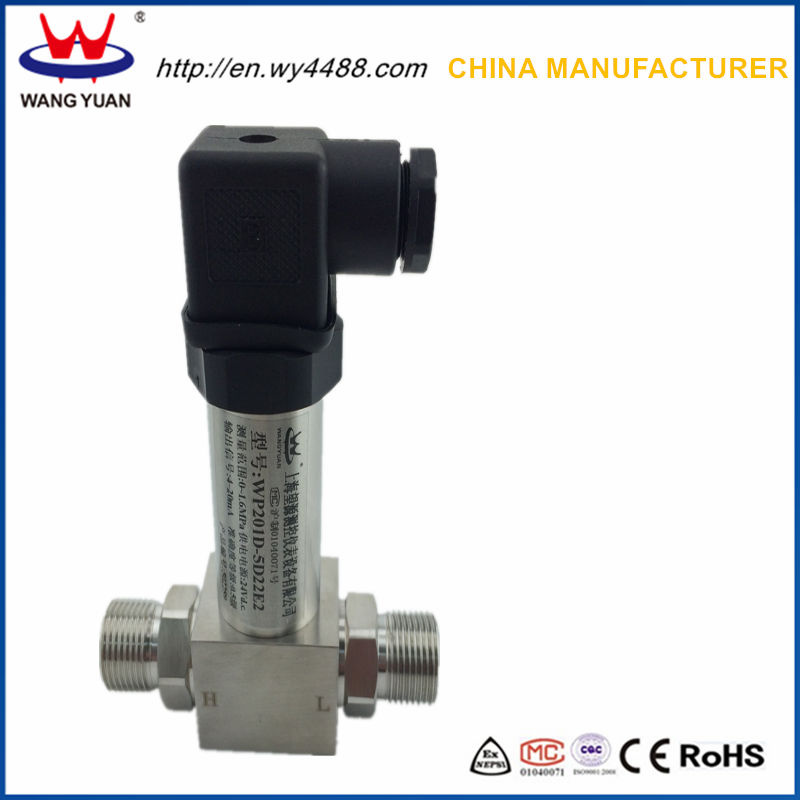

Low Static Pressure Differential Pressure Transmitter

Prod Model:	WP201D
Pressure Type:	Gauge Pressure(G), Absolute Pressure(a), Sealed Pr
Electrical Connector:	Cable, Terminal Block
Process Connection:	M20*1.5, G1/2, 8mm-30 Barb Fittings
Output Signal:	4-20mA (1-5V); 4-20mA with Hart Protocol
Operation Temperature:	-40~85 Celsius,
Power Supply:	24VDC
Name:	Low Pressure Differential Pressure Transmitter
Measuring Medium:	Gas, Oil, Liquids, Steam, Pulp
Pressure Range:	0-0.2~ 700kpa

Product Description

WP201 Series Low static pressure Differential Pressure transmitter
Model: WP201D

Application:
This series differential pressure transmitters can be used to measure & control the pressure in:
Boiler
Furnace pressure
Soot control
Forced-draught fan
Air conditioner and etc.

Description
WP201D differential pressure transmitters adopt advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology. The product is designed to work well under various conditions. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure transmitters. Differential pressure was transferred to 4-20mA (2-wire), 0-10mA or 0-5V output signal.
This series differential pressure transmitter have these functions of various process connector and electric connection, configuring one part pointer or digital gauge, reading differential pressure value on-site. Zero and span can be adjusted. The transmitter can measure gauge pressure by using single terminal.

Features
Imported sensor component
Various output signal
HART protocol is available
Light weight, easy to install, maintenance-free
High stability & reliability
High precision 0.1%FS, 0.2%FS, 0.5%FS
100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
Explosion-proof type: Ex iaIICT6, Ex dIIBT4

Specification
Pressure range: 0-0.2~ 700kPa
Pressure type: Gauge pressure(G), Differential pressure(D), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol;
Power supply: 24V DC;
Electrical connection: Cable, Terminal block
Compensation range: -10-70C
Operation temperature: -40-85C
Overload pressure: 150%FS
Pressure connection: M20*1.5, G1/2,
Accuracy: 0.5%FS, 1.0 %FS,
Wetted part: Stainless steel 304 or 316L


Ordering guide: WP201D-1.6kPa(g)-0.5%FS-M20*1.5-DIN Connector-4-20mA-24VDC

More information of this differential pressure transmitter, please feel free to contact with us.
