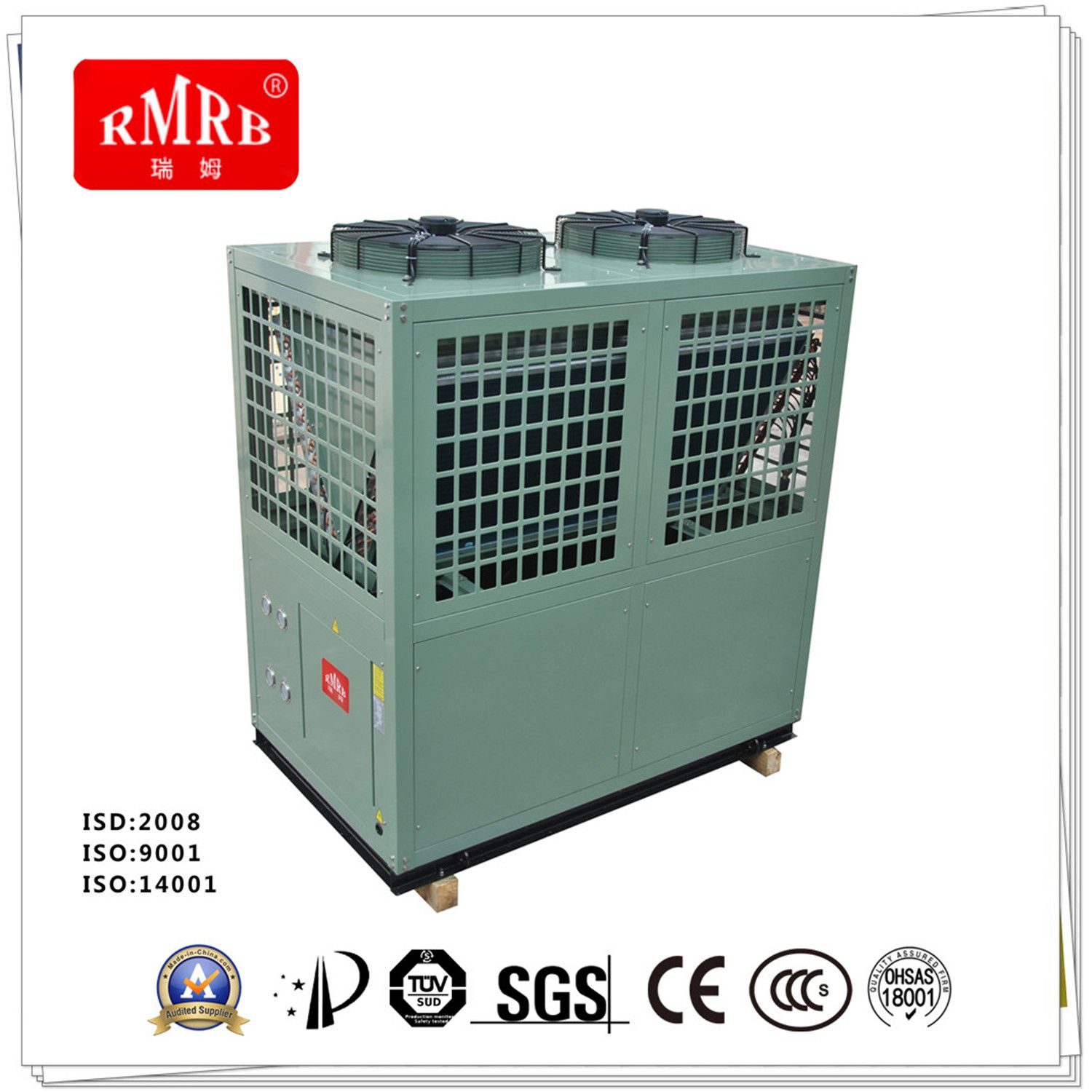

| Prod Model: |
RMRB-25DWSR-2D |
| Compressor: |
Copeland (Effective Scroll Type) |
| Rated Heating Capacity Under Abient Temp: |
70.5kw(44.6f) / 49kw(19.4f) / 42kw(5f) |
| Rated Output Water Quantity: |
1732L/H |
| Rated Input Power (Kw): |
21kw |
| Voltage Fit For: |
380V ~420V, 50Hz or 60Hz |
| OEM Service: |
Also Available |
| Comman Style: |
Available |
| Stainless Steel Style: |
Available |
| Application To: |
Hot Water Supply Projects |
| Cooling/Heating Units (or Plus Hot Water: |
Available |
Product Description
Application To:
Widely used in Cooling/Heating with Hot Water supply projects of large/small industries & civil building, to supply stable hot water. For example, large hotels, guesthouse, health centers, schools, entertainment centres, bath centers, and so on. Especially sites with higher requirement on noise and surrounding environment, sites that not allow the installation of the boiler, also sites which are not easy to install cooling tower. RMRB HEAT PUMP will be your best choice.
Performance Characteristic:
1. Module intelligent central controller, automatically monitor the machine, reliable performance.
Apply world famous compressor, 4-way valve, expansion value, the performance is higher and more stable.
2. Microcomputer LCD controller, assures free attendance.
3. Intelligent de-forsting technology, completely remove frost, higher efficiency.
4. Silent work, no pollution to the environment.
5. Evaporator applies clear water membrane, high heat absorbing ability, high effciency anti-corrosion.
6. Convenient installation, small occupation, saves cost.
7. They can be compatible with solar energy, save energy, prevent hot water shortage in rainy and shade day, assure nomal use and hot water.
Technical Parameter (of Model RMRB-25DWSR-2D):
1)Rated heating output: 70.5kw(under ambient temp.7ºC) , 49kw(under ambient temp.-7ºC), 42kw(under temp.-15ºC).
2)Rated output water quantity 1732L/h
3)Rated heating input power 21.5kw.
4)Voltage 380V ~420v / 50Hz or 60Hz
5)Hot water temperacture 55-60º C
6)Weight Package within 780kg, size: 1810*1100*1920 mm.
7)Control Mode: Microcomputer central processor (linear control)
8)Protection Function: High pressure protection, low pressure protection, phase failure, reversed phase, water current switch, overpower protection, freeze protection
9)No pollution to the environment, it is the world's highest energy saving and environment protective product within the air conditioner and water heater range.
| Compressor | Form | Effective flexible scroll type |
| Quantity | 2 |
| Brand | Copeland |
| Heat Exchanger | Form | Effective spiral double pipe heat exchanger |
| Circulation WaterPipe Diameter | DN65 |
| Pressure drop | 50Kpa |
| Draught | Form | External Rotor Motor |
| Power (W) | 550*2 |
| Package Weight (KG) Within | 780 |
| Control Mode | Microcomputer central processor(linear control) |
| Protection Function | High pressure\low pressure\phase failure\reversed phase\ove |
Guangzhou Realm Energy-Saving Equipment Co., Ltd (Realm), registered May 2005. Has its own brands RMRB (Realm). As a manufacturer who proffessional produce heat pump. Near Baiyun Airport. It located at No. 1-3, Building58 Back Seat, Zhuliao Avenue, Zhongluotan Town, Baiyun District, Guangzhou City, Guangdong Province, China.
Realm major in producing all kinds of heat pump. Such as, EVI Heat Pump, Swimming Pool Heat Pump, Hot Water Heat Pump, Triple Supply Heat Pump System provide cooling / heating & hot water, Air Source Heating Unit, Air-cooled Modular Cooling Unit, Water-cooled modular Unit, and other Heat Pumps. Widely application to Student Dormitory, Worker Dormitory, Guest House, Village, Settlements Living Area, Hotel, Hospital, Entertainment Center, Super Market, Pretty Home, Chamber Centre, Constant Temperature Pool, SPA Center, House, Villa, Beauty Salon, Laundry Shop, Restaurant, Culture Farm, Army Department, and so on. More and more popullar for different projects.
The energy saving times requires us to select energy source products which can meet the development of the society better. RMRB heat pump, as the leading in the industry, provide the best selection due to advanced technology and market management.
RMRB heat pumps are manufactured strictly following USA ATSE quality control system and technique requirements, have passed OHSAS18001, ISO14001, ISO2008, ISO9001 certification, USA EMC member certification, Germany SGS authority, China CCC certification, CE, CB and other energy saving certificates.
Guangzhou Realm Energy-Saving Equipment Co., Ltd possesses top R&D team, advanced equipments and outstanding development environment, be capable of constantly promoting quality products. What is more important: After constant development, with profound knowledge to the marker, the company has summarized the practical and effective strategy with complete and systematic solutions and rich engineering experience.
Brands: RMRB / Realm
Number of Employees: 101 - 200 People
Trade & Market
Main Markets:
Eastern Europe
Western Europe
South America
North America
Southeast Asia
Africa
Oceania
MID East
Eastern Asia
Export Percentage: 31% - 50%
Factory Information
Factory Size (Sq. Meters): About 5, 000 square meters
Factory Location: Back seat 3 of No. 58 Zhuliao Avenue, Zhongluotan Town, Baiyun District, Guangzhou City, China.
QA/QC: In House
Number of Production Lines: 3
Number of R&D Staff: 5 - 10 People
Number of QC Staff: 5 - 10 People
Contract Manufacturing:
OEM Service: Offered
Design Service: Offered
Buyer Label: Offered
Our Target: Develop international famous brand on energy saving. Set up the worldwide RMRB heat pump chain stores and warranty service systems.
Our Service and Guarantee: The entire machine enjoys one or two year of warranty service, the defective parts enjoy replacement service within two year; Nomal service life of our products reaches 10 to 15 years or more; Free patrol inspection service once a year within China; Products are insured by PICC.
Realm offer Dedicated Lifelong Service.
