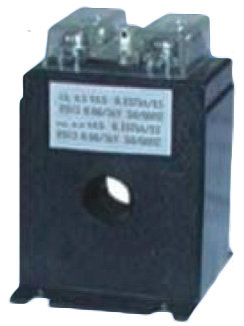

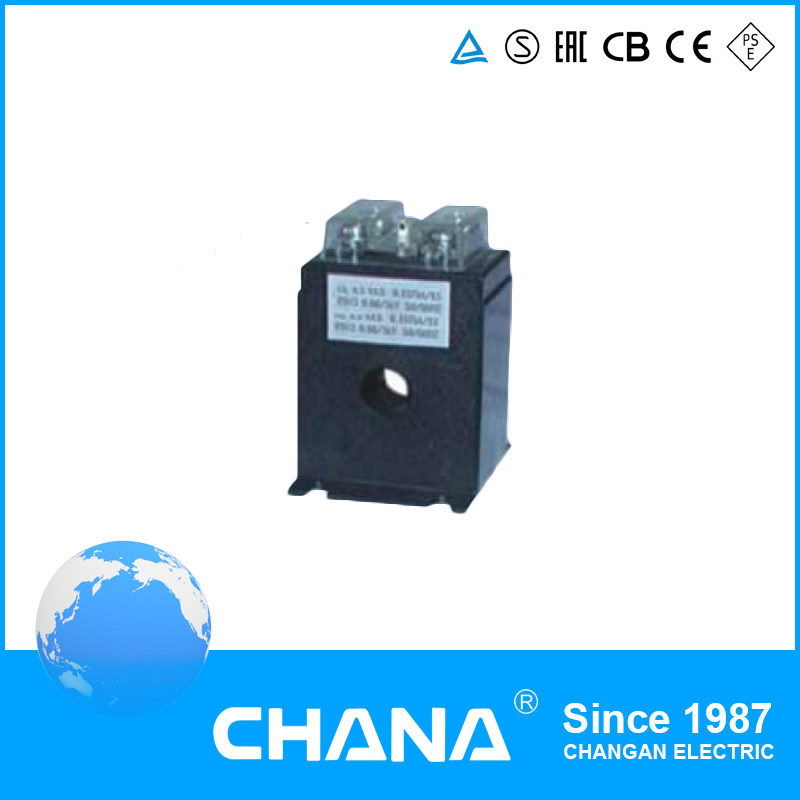

Low Voltage 1A-5000A Mini Current Transformers with PBT Bobbin

Prod Model:	CP-4
Rated Output:	1A 5A
Rated Input:	1-5000A
Case:	PC/UL94-V0
Frequency:	50/60Hz
Bobbin:	PBT
Core:	Silicon Steel
Application:	Instrument
Type:	Current Transformer
Phase:	Single
Operation Condition:	Power
Usage:	Single-Phase Transformer
Winding Form:	Tie

Product Description

Electrical 5000a low voltage 3kv mini current transformers




1. Application

AMC series current transformer is compact .smaller than other models with the current ratio of the transformer is small,clamshell-style terminal cover is well protected by the second terminal.With related accessories you can use Din rail mounting,a current from 5A to 2500A

Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system.Current , power and energy monitoring device.
Relay protection device.

2. Feature

Safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installations

3. Technique Index


Frequency	50-60hz
Rated Input	1a-5000a
Measuring range	5%in-130%in
Rated Output	1A 5A
Rated voltage	0.72KV(AC)
Dielectric strength	3.0kv/1mA/1min
Insulation Resistance	DC500V/100MΩ/min



Case	PC/UL94-V0
Bobbin	PBT
Core	Silicon steel
Construction	Screw
Operating Temp	-25ºC~+75ºC
Operating Humidity	<=85%
Output Connection	Terminal

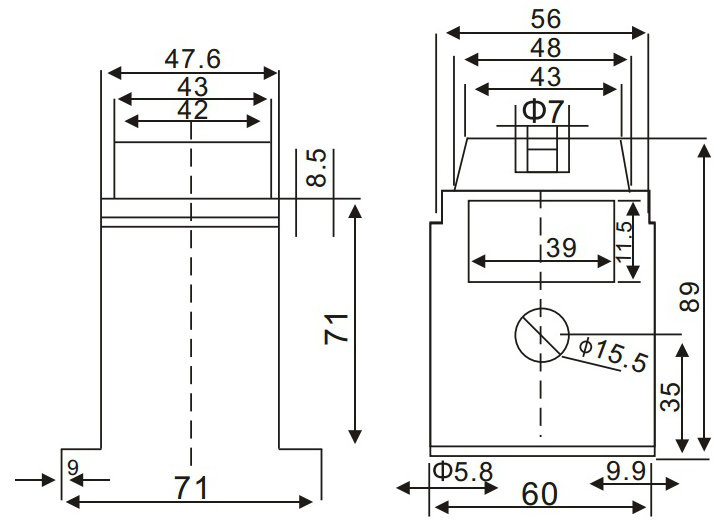

4. Dimension(mm)



5. Company Profile

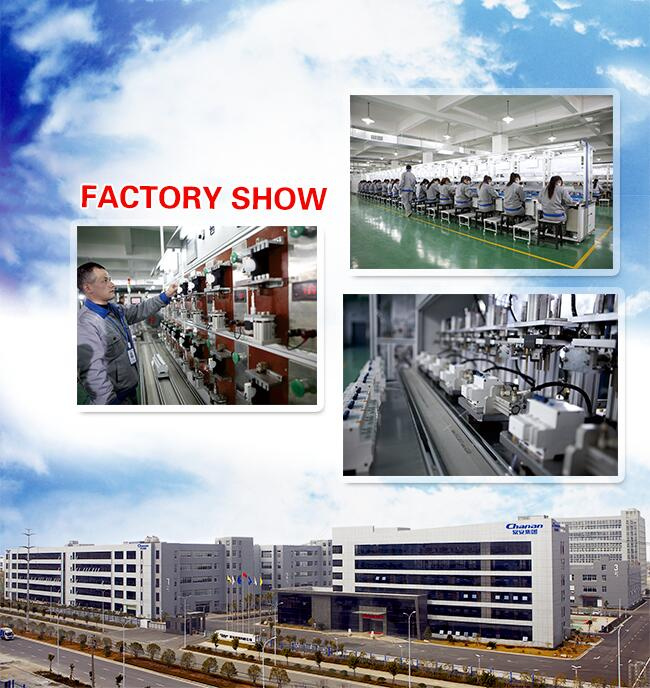

Changan Group Co., Ltd,Establised in 1987,Comprising more than 62 factories with over 2500 employees and the whole corporaion occupies 82000m2 ground during past 30years.we manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,Contactor,Relay,Switch,Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia,Turkey,Europe,south america,Mid-east and Africa Market.

7. Feature product
