| Prod Model: |
BV/BVV/BVR |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Application: |
Building Wire |
| Range Of Application: |
Building Wire |
| Brand: |
Jinshui |
Product Description
Application
The PVC insulted wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750v(U0/U).Part of the plastic insulted wires are used at the equipment with AC rated voltage up to 300/300v.
Specification
The rated voltage of wires should equal to or higher than rated voltage of the system when wires are used at AC system. If the wires are used at DC system, rated voltage of system should be lower than 1.5 times as high as rated voltage of cable and wires. The working voltage of system could be 1.1 times as high as the rated voltage of cable.
The long term working temperature should lower then 70 °C . The working temperature of BV-90 should lower then 90 °C . And laying temperature should higher than 0 °C .
The curve diameter of wire should longer than 8 times of diamet er of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If diameter of cable and wires is above 25 mm, curve diameter should be at least 12 times of outer diameter of cable and wire

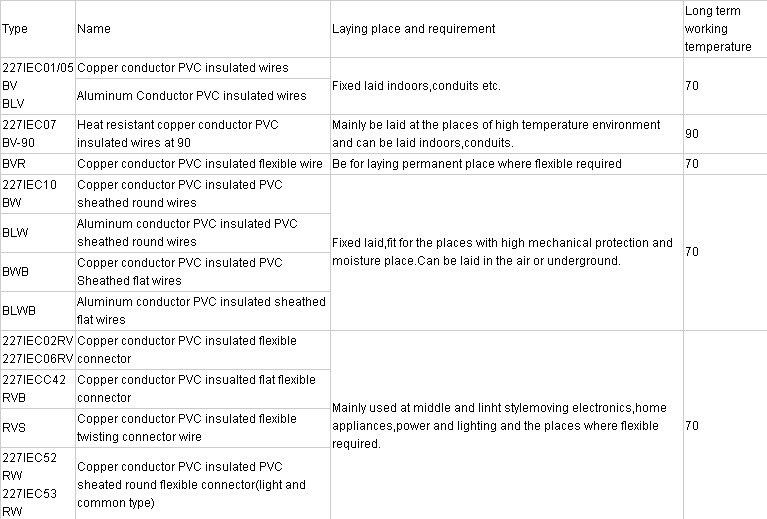

Type
Company Profile:
Henan Jinshui Cable Group mainly specialized in cables' R&D,manufacturing and distribution and contributes to promote Chinese excellent wire &cable products with competitive price in the worldwide market.
As a professional exporter in Chinese cable industry, we take the lead in obtaining ISO9001, CCC and Certificate for product exemption from inspection by Chinese government. We can manufacture more than 1300 types of cables and wires of high, medium and low voltage which meet the standard of GB, IEC, BS, ASTM, JIS, DIN and etc. In order to guarantee quality, the process and manufacturer of all our products are complied with or excess international,relative national standards.
Nowadays, our business partners spreads all over Asia, Mid-east, South European, Central America, South America, South Africa areas, and etc. A stable and close relationship has been founded between us and some world famous companies such as PLN in Indonesia, Unicable in Singapore, Riyadh Cable Group in Saudi Arabia. It will be everlasting to satisfy each our client with good quality and excellent service. And we always insist on our principle"Honesty,Fair, Perfect, Efficiency". Sincerely welcome friends all overthe world and gain a mutual progress together in future.
The main products are as follow:
Bare Conductor (AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Our service:
We provide high-standard quality-control and manufacturing system. The service life of our products are highly guaranteed. We offer operating constructions to our customers.
Our goal is to provide first-class wire and cables and back them up with timely superior service.
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
