Product Description

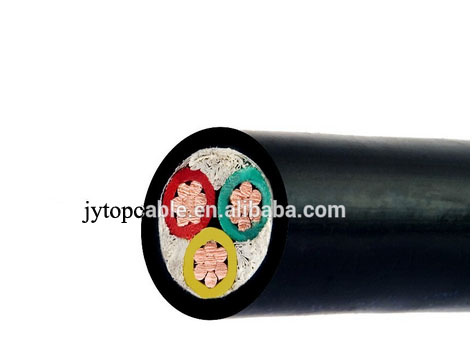

Low voltage 0.6/1KV NYY ELECTRICAL CABLE :1. Operating CharacteristicsRated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160° C;
Nominal cross section of conductor >300mm2: 140° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 20 times of the diameter of cable
For multi-core cable: Not less than 15 times of the diameter of cable
2. ApplicationThe cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or in conduit, unable to bear external mechanical force.
3. Manufacturing StandardsIEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
KINDLY NOTE: If you want to know more details about this kind of products, please visit our website:
www.jytopcable.com for further information. Thanks.Note: RE= round conductor RM = stranded conductor SM=sectional conductor
Cable size |
Conductor type | Nominal thickness of PVC insulation(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 20 0 C (Ω/km) |
Phase
core | Earth
core | Phase
core | Earth
core | Phase
core | Earth
core |
| 3x2.5+2x1.5mm 2 | RE | RE | 0.8 | 0.8 | 1.8 | 12.5 | 7.41 | 12.1 |
| 3x4+2x2.5mm 2 | RE | RE | 1.0 | 0.8 | 1.8 | 14.3 | 4.61 | 7.41 |
| 3x6+2x4mm 2 | RE | RE | 1.0 | 1.0 | 1.8 | 16.1 | 3.08 | 4.61 |
| 3x10+2x6mm 2 | RM | RE | 1.0 | 1.0 | 1.8 | 18.7 | 1.83 | 3.08 |
| 3x16+2x10mm 2 | RM | RM | 1.0 | 1.0 | 1.8 | 21.8 | 1.15 | 1.83 |
| 3x25+2x16mm 2 | SM | RM | 1.2 | 1.0 | 1.8 | 23.3 | 0.727 | 1.15 |
| 3x35+2x16mm 2 | SM | RM | 1.2 | 1.0 | 1.8 | 24.8 | 0.524 | 1.15 |
| 3x50+2x25mm 2 | SM | SM | 1.4 | 1.2 | 1.9 | 28.3 | 0.387 | 0.727 |
| 3x70+2x35mm 2 | SM | SM | 1.4 | 1.2 | 2.1 | 32.0 | 0.268 | 0.524 |
| 3x95+2x50mm 2 | SM | SM | 1.6 | 1.4 | 2.2 | 36.8 | 0.193 | 0.387 |
| 3x120+2x70mm 2 | SM | SM | 1.6 | 1.4 | 2.4 | 40.7 | 0.153 | 0.268 |
| 3x150+2x70mm 2 | SM | SM | 1.8 | 1.4 | 2.5 | 43.7 | 0.124 | 0.268 |
| 3x185+2x95mm 2 | SM | SM | 2.0 | 1.6 | 2.7 | 49.2 | 0.0991 | 0.193 |
| 3x240+2x120mm 2 | SM | SM | 2.2 | 1.6 | 2.9 | 55.0 | 0.0754 | 0.153 |
| 3x300+2x150mm 2 | SM | SM | 2.4 | 1.8 | 3.1 | 60.8 | 0.0601 | 0.124 |
