| Prod Model: |
P-11-Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pin Insulator: |
High Voltage |
| Standar: |
ANSI |
| OEM: |
Accept |
| Size: |
as You Required |
| Application: |
High-voltage |
| Material: |
Porcelain |
| Structure: |
Pin Insulator |
| Type: |
A Type Insulator |
| Color: |
Brown |
| Brand: |
Vic |
Product Description
* In comply with ANSI, IEC, BS, AS etc standard;
* Brown or grey glazed;
* Advise Model No or supply drawing when enquire;
* Disc insulator, suspension insulator, cap insulator.

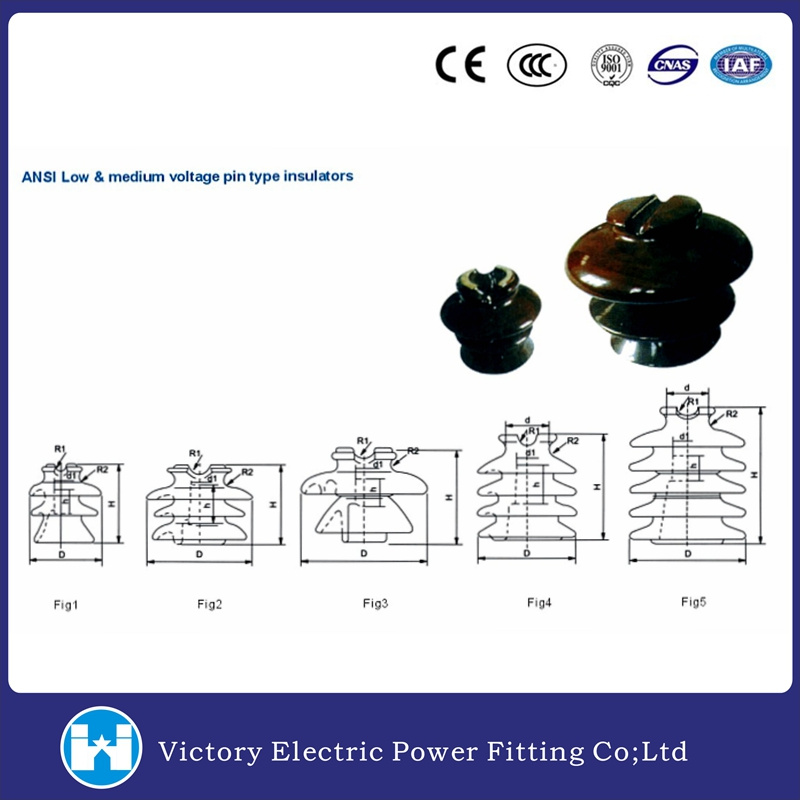

Cat No.
| Fig NO.
| Mian Demension in (mm)
| Gtee-page
Dist-
ance (mm)
| Cant-ilever
Stre-
ngth 1b(KN)
| withstand Voltage
| Power Frequ-aency Puncture Voltage
KV
| Radio influence Voltage
| Used Spin-dles
|
D
| H
| d1
| H
| R1
| R2
| d
| one minute Wet power Frqu-ency
| Dry
Im-
pulse With-stand Voltage KV
| Test Volt-age
To
Gro-
und
KV
| Max
Riv
At
1M
Hz V
|
P-
11-
Y
| 1
| 140
| 133
| 18.29
| 48
| 13
| 9.5
|
| 240
| 11
| 45
| 810
| 150
| 15
| 8000/
100
| Small steel head
|
P-
15-
Y
| 1
| 152
| 137
| 18.29
| 48
| 13
| 12.7
|
| 298
| 11
| 50
| 95
| 450
| 15
| 8000/
100
|
P-
22-
Y
| 2
| 230
| 165
| 27.78
| 52.63
| 19
| 14.3
|
| 432
| 11
| 70
| 125
| 200
| 22
| 12000/
100
| Large steel head
|
P-
33-
Y
| 3
| 279
| 244
| 27.78
| 52.63
| 19
| 13
|
| 630
| 13.8
| 90
| 170
| 210
| 30
| 16000/
100
|
P W -
15-
Y
| 4
| 170
| 182
|
| 52.63
| 16
| 16
| 76
| 432
| 11
| 50
| 95
| 150
| 22
| 12000/
100
|
P W -
22-
Y
| 5
| 205
| 255
|
| 52.63
| 16
| 16
| 76
| 673
| 11
| 70
| 125
| 200
| 30
| 16000/
100
|
P W -
33-
Y
| 5
| 240
| 320
|
| 52.63
| 16
| 16
| 76
| 851
| 11
| 90
| 170
| 210
| 44
| 25000/
100
|
