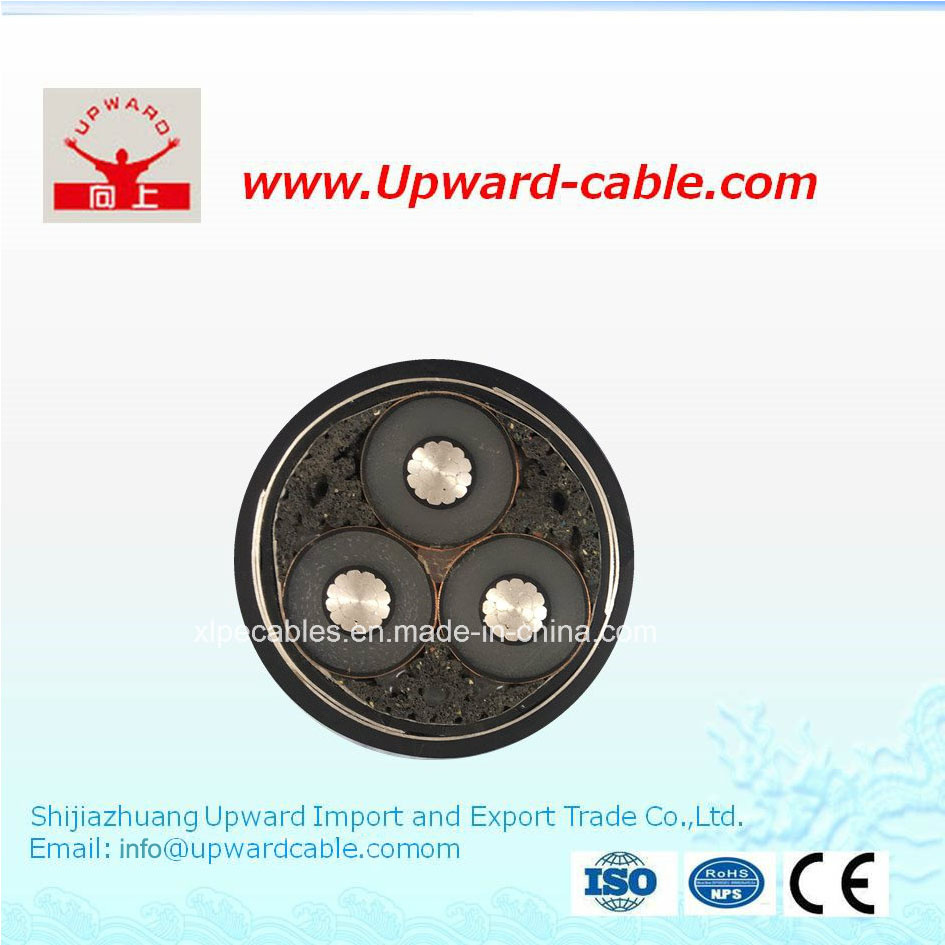

Low Voltage Armored Underground Cable

Low Voltage Armored Underground Cable
Price: US $ 1-10/Meter
Min Order: 100/Meter
Pay Type: T/T,Western Union
Prod Model: YJLV
Color: Black
Model Number: Armoured Power Cable
Sectional Area: 1.5-400mm2
Packing: as Your Requirement
Application: Industrial
Voltage: Low and Medium Voltage Cable
Current: DC & AC
Insulation Material: XLPE
Certification: CE
Brand: Upward

Product Description

Underground cable structure
Conductor: Solid or stranded copper
Insulation:  Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

Underground cable Operating characteristics
1) Rated Voltage: 0.6/1kV
2) Max. working temperature: 70°C (pvc insulation), 90°C (xlpe insulation)
3) Max. temperature during short circuit (≤5S): 160°C (PVC insulation), 250°C(XLPE insulation)
4) Conductor: class 1 and 2 copper or aluminum
5) Shape of conductor: circular and sectional
6) Sectional area: 1.5 - 630mm2
7) Insulation: PVC / XLPE
8) No. of cores: 1, 2, 3, 3+1, 3+2, 4, 4+1, 5
9) Armor: steel wire or steel tape available
10) Sheath: PVC
11) Min. beding radius: 15 times cable radius (single core),  12 times cable radius (multi cores)
12) Max. conductor DC resistance at 20 °C

Underground cable application
TYPEDescription of Cable

Main Applications

CU coreAL core
VV32VLV32Copper/Aluminum core,PVC insulated,thin steel wire armored,PVC sheathed power cableThin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces.
VV33VLV33Copper/Aluminum core,PVC insulated,thin steel wire armored,PE sheathed power cable
VV42VLV42Copper/Aluminum core,PVC insulated,thick steel wire armored,PVC sheathed power cableThick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces.
VV43VLV43Copper/Aluminum core,PVC insulated,thick steel wire armored,PE sheathed power cable
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.

The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.

As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
