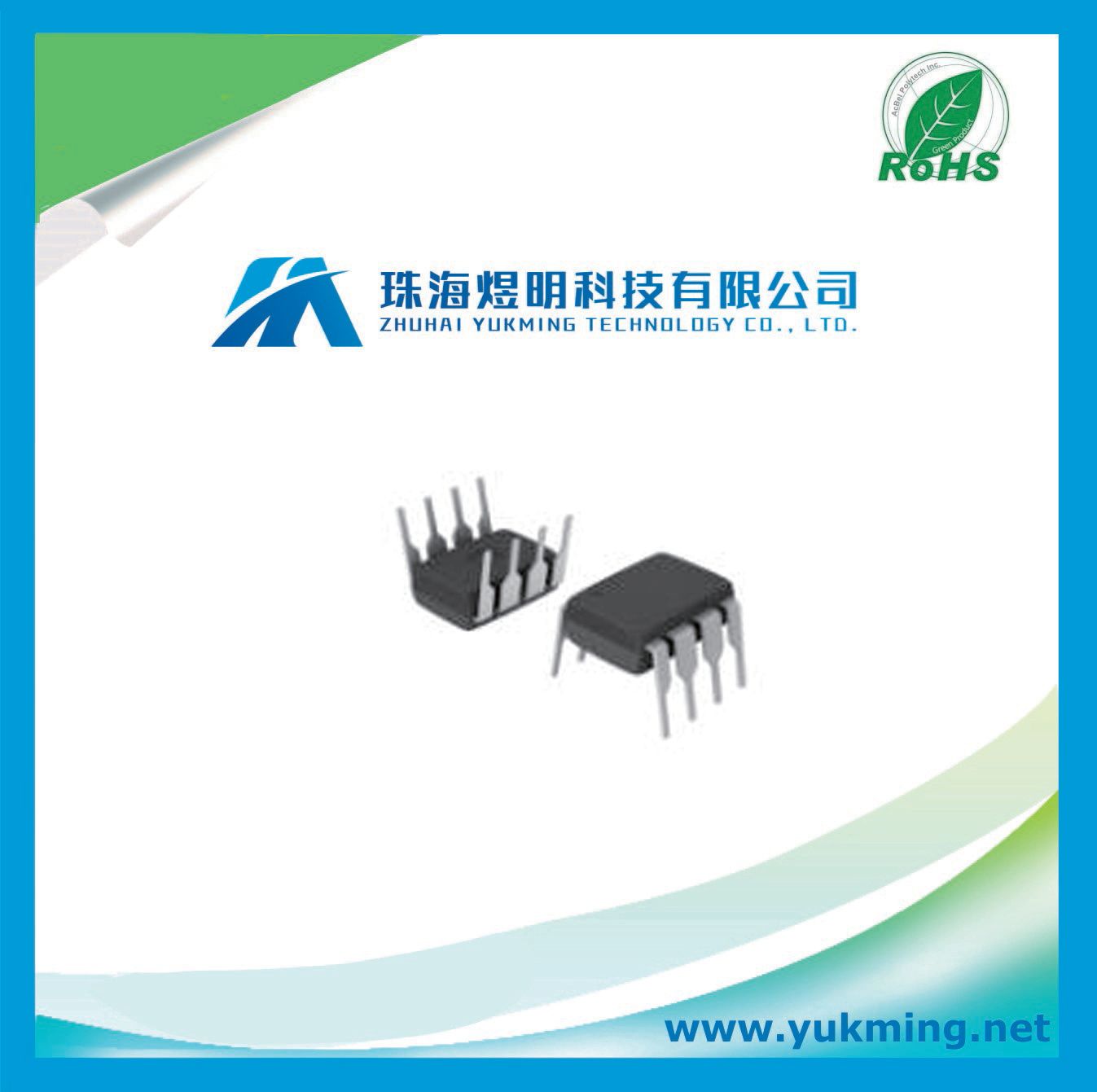

Low Voltage Audio Power Amplifier IC Lm386n Integrated Circuit

Name: Low Voltage Audio Power Amplifier IC Lm386n Integrated Circuit
Brand: all-electronics-online.com
SKU: 801888375
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	US $ 0.3456/Piece
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM386N

Product Description

Low Voltage Audio Power Amplifier

General Description
The LM386 is a power amplifier designed for use in low voltage
consumer applications. The gain is internally set to 20 to
keep external part count low, but the addition of an external
resistor and capacitor between pins 1 and 8 will increase the
gain to any value up to 200.
The inputs are ground referenced while the output is automatically
biased to one half the supply voltage. The quiescent
power drain is only 24 milliwatts when operating from a
6 volt supply, making the LM386 ideal for battery operation.

Features
Battery operation
Minimum external parts
Wide supply voltage range: 4V-12V or 5V-18V
Low quiescent current drain: 4 mA
Voltage gains from 20 to 200
Ground referenced input
Self-centering output quiescent voltage
Low distortion
Available in 8 pin MSOP package
Applications
AM-FM radio amplifiers
Portable tape player amplifiers
Intercoms
TV sound systems
Line drivers
Ultrasonic drivers
Small servo drivers
Power converters

Supply Voltage
(LM386N-1, -3, LM386M-1) 15V
Supply Voltage (LM386N-4) 22V
Package Dissipation (Note 3)
(LM386N) 1.25W
(LM386M) 0.73W
(LM386MM-1) 0.595W
Input Voltage ±0.4V
Storage Temperature −65˚C to +150˚C
Operating Temperature 0˚C to +70˚C
Junction Temperature +150˚C

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
