| Prod Model: |
RDCM1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
6-3200A |
| Protection Grade: |
IP20 |
| Frequency: |
50/60Hz |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description

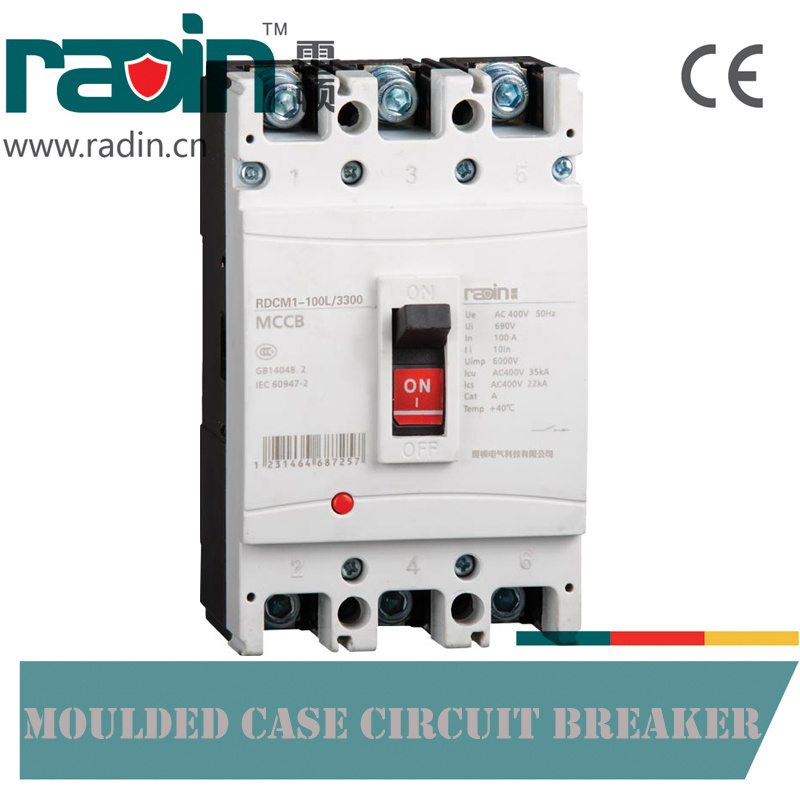

Low voltage CM1 Circuit Breaker
Application
RDCM1(CM1) series MCCB is mainly used in the circuit of AC 50/60Hz,rated insulating voltage 690V (630 type is 500V),rated working voltage up to 690V,and rated current from 6A-800A in distribution line for distributing power,protecting line,overload,short-circuit and under-voltage protection. It also can be used for infrequently starting of motor for overload,short-circuit and under-voltage protections.
It is small size,high breaking capacity and short arcing (without arcing).
The products can be installed vertically and horizontally.And it have front connection,rear connection and plug-in connection.
The product meets the standards of GB14048.2 and IEC60947-2.
Normal Working Condition
Altitude: not exceed 2000m
Ambient air temperature:
1) Temperature: -5° C---+ 40° C
2) 24 hours average air temperature shall not exceed + 35° C
3) If the air temperature is more than + 40° C, it need remark the special ordering.
Air conditions:
At mounting site,relative humidity not exceed 50% at the max temperature of +40° C,higher relative humidity is allowable under lower temperature.For example,RH could be 90% at +20° C,special measures should be taken to occurrence of dews.
Pollution grade:Grade 3
Protection Grade: IP20
