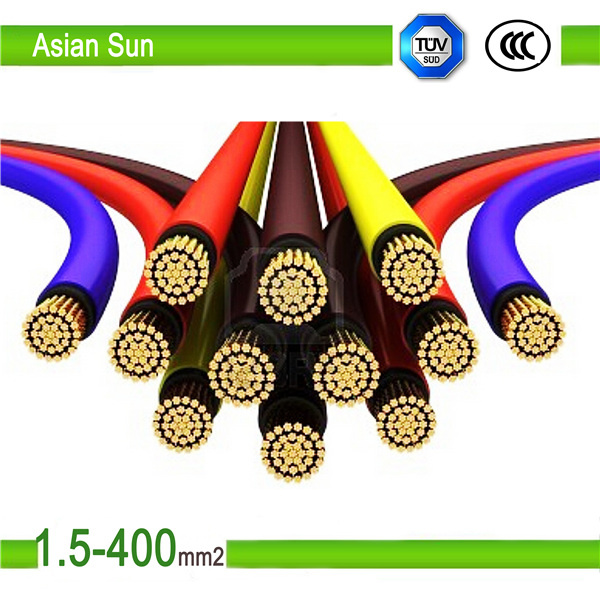

Low Voltage Copper Core PVC Insulation House Wiring Electrical Wire
| Price: |
Negotiable/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C |
| Prod Model: |
EW01 |
| Name: |
Electrical Wire |
| Payment: |
L/C T/T |
| Trade Terms: |
Fob CFR |
| Port: |
Qingdao |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
UL |
| Brand: |
Dayuan |
| Application: |
Home Use |
Product Description
Low Voltage Copper Core PVC Insulation House Wiring Electrical WireApplication for electrical wire PVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U). Standard for electrical wire The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.Brief construction for electrical wire 1) Conductor: Copper or aluminium, Solid2) Insulation: PVC3) Number of cores: Single core4) Other special characteristics: Design and manufacture according to the requirements of customers.Service performance for electrical wire 1) Rated voltage: 450/750V2) Long-term working temperature: not be higher than 70°C3) When laying the cable, the ambient temperature should not lower than 0°C4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.| Specification and technical data for electrical wire |
| Size of conductor | Nominal thickness of
insulation mm | Mean overall diameter Upper limit mm | Approx.net weight per km
kg |
| Nominal cross-sectional area mm2 | Number and
diameter of wires no./mm |
| 1 | 32/0.20 | 0.6 | 3 | 16 |
| 1.5 | 30/0.25 | 0.7 | 3.5 | 21 |
| 2.5 | 50/0.25 | 0.8 | 4.2 | 33 |
| 4 | 56/0.30 | 0.8 | 4.8 | 50 |
| 6 | 84/0.30 | 0.8 | 6.3 | 70 |
| 10 | 80/0.40 | 1 | 7.6 | 120 |
| 16 | 126/0.40 | 1 | 8.8 | 175 |
| 25 | 196/0.40 | 1.2 | 11 | 290 |
| 35 | 276/0.40 | 1.2 | 12.5 | 400 |
| 50 | 396/0.40 | 1.4 | 14.5 | 565 |
| 70 | 360/0.50 | 1.4 | 17 | 770 |
| 95 | 475/0.50 | 1.6 | 19 | 1010 |
| 120 | 608/0.50 | 1.6 | 21 | 1260 |
| 150 | 756/0.50 | 1.8 | 23.5 | 1580 |
| 185 | 925/0.50 | 2 | 26 | 1900 |
| 240 | 1221/0.50 | 2.2 | 29.5 | 2500 |

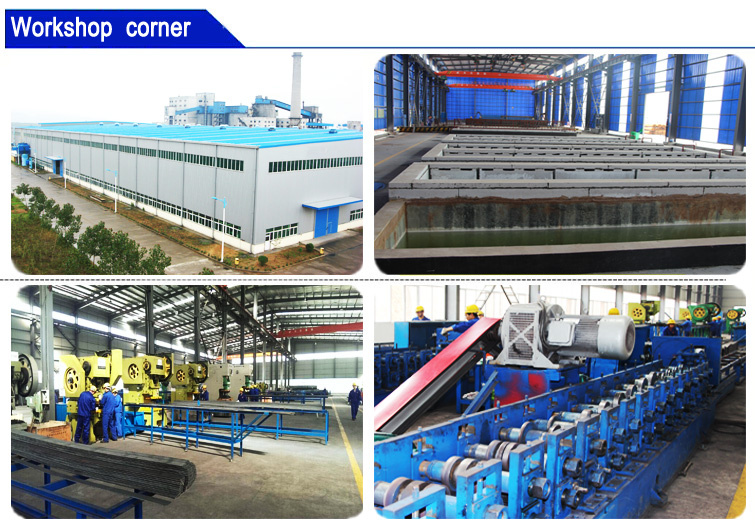

Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
