Product Description

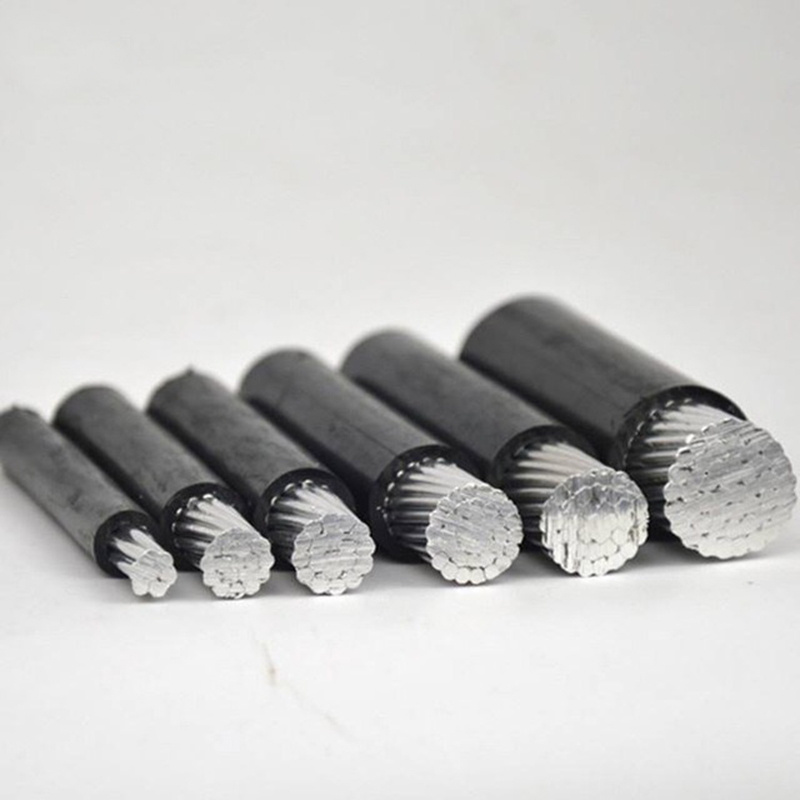

Low Voltage Covered Line Aluminum Wire cable for Overhead Distribution
Covering Material:
The standard covering on the conductor is black linear low-density polyethylene (LLDPE). Alternatively, a covering of black low-density crosslinked polyethylene (XLPE) with a 90°C temperature rating is available upon request.
FEATURES:
The product is used primarily for, but not limited to, overhead secondary distribution lines. Installed on insulators, otherwise treated as a bare conductor.
Ease of erection and stringing.
Practically no tree-trimming required.
Less maintenance.
Relative immunity to short circuits caused by external forces (wind, fallen branches), unless they abrade the insulation.
Construction:
Conductors are aluminum alloy 6201-T81, 1350-H19, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density(HD) polyethylene or crosslinked polyethylene (XLP).
Standards:
ASTM B-230, B-231, B-232 and B-399 & ICEA S-61-402 and S-66-524
Specification :
Code
Name | Size
AWG
or
MCM | Strand | Insulation
thickness
(mls) | Outside
diameter
(inches) | Rated
strength
(lbs) | Weight | *Ampacity
(Amps)
XLP |
| XLP | Poly |
| AAC |
| Apple | 6 | Solid | 30 | .222 | 445 | 33.0 | 32.0 | 105 |
| Pear | 4 | Solid | 30 | .264 | 675 | 48.5 | 47.3 | 135 |
| Apricot | 4 | 7/w | 30 | .285 | 790 | 51.5 | 50.8 | 140 |
| Peach | 2 | 7/w | 45 | .373 | 1220 | 87.1 | 84.0 | 180 |
| Quince | 1/0 | 7/w | 60 | .477 | 1790 | 140.7 | 135.6 | 240 |
| Orange | 2/0 | 7/w | 60 | .522 | 2260 | 171.9 | 166.2 | 280 |
| Fig | 3/0 | 7/w | 60 | .570 | 2740 | 210.5 | 204.0 | 320 |
| Olive | 4/0 | 7/w | 60 | .626 | 3450 | 258.7 | 251.4 | 370 |
| Pomegranate | 4/0 | 19/w | 60 | .632 | 3620 | 254.8 | 247.9 | 370 |
| Mulberry | 266.8 | 19/w | 60 | .692 | 4470 | 313.5 | 305.8 | 430 |
| Anona | 336.4 | 19/w | 60 | .766 | 5535 | 387.6 | 378.8 | 495 |
| Molles | 397.5 | 19/w | 75 | .852 | 6400 | 469.2 | 457.4 | 545 |
| Huckleberry | 477.0 | 37/w | 75 | .921 | 7820 | 550.0 | 537.5 | 610 |
| Paw Paw | 556.5 | 37/w | 75 | .982 | 8950 | 633.0 | 619.4 | 670 |
| Breadfruit | 636.0 | 61/w | 95 | 1.080 | 10510 | 742.6 | 724.7 | 720 |
| Persimmon | 795.0 | 61/w | 95 | 1.187 | 12900 | 910.0 | 890.0 | 825 |
| Grapefruit | 1033.5 | 61/w | 95 | 1.327 | 16500 | 1156.7 | 1133.8 | 970 |
Code
Name | Size
AWG
or
MCM | Strand | Insulation
thickness
(mls) | Outside
diameter
(inches) | Rated
strength
(lbs) | Weight | *Ampacity
(Amps)
|
| XLP | Poly |
| ACSR |
| Walnut | 6 | 6/1 | 30 | .258 | 1131 | 49 | 47 | 105 |
| Butternut | 4 | 6/1 | 30 | .303 | 1170 | 71.8 | 70.0 | 135 |
| Hickory | 4 | 7/1 | 30 | .309 | 2240 | 81.6 | 79.8 | 135 |
| Pignut | 2 | 6/1 | 45 | .397 | 2710 | 118.1 | 114.8 | 180 |
| Beech | 2 | 7/1 | 45 | .405 | 3460 | 134.1 | 130.7 | 180 |
| Chestnut | 1 | 6/1 | 45 | .434 | 3370 | 145.5 | 141.8 | 210 |
| Almond | 1/0 | 6/1 | 60 | .506 | 4160 | 190.4 | 184.9 | 235 |
| Pecan | 2/0 | 6/1 | 60 | .554 | 5040 | 234.2 | 227.9 | 270 |
| Filbert | 3/0 | 6/1 | 60 | .607 | 6290 | 288.5 | 281.4 | 305 |
| Buckeye | 4/0 | 6/1 | 60 | .666 | 7930 | 356.5 | 348.5 | 345 |
| Hackberry | 266.8 | 18/1 | 60 | .711 | 6540 | 354.8 | 346.8 | 435 |
| ALLOY 6201-T81 |
| Hornbeam | 4 | 7/w | 30 | .310 | 1480 | 62.1 | 60.1 | 145 |
| Linden | 2 | 7/w | 45 | .406 | 2520 | 96.1 | 93.3 | 190 |
| Oilnut | 1/0 | 7/w | 60 | .518 | 4010 | 166.1 | 160.0 | 250 |
| Waterash | 2/0 | 7/w | 60 | .567 | 4850 | 203.3 | 196.4 | 290 |
| Shellbark | 3/0 | 7/w | 60 | .622 | 6110 | 249.4 | 241.4 | 335 |
| Planetree | 4/0 | 7/w | 60 | .683 | 7700 | 307.3 | 298.1 | 385 |
