Low Voltage Dual Rocker Switch ATS for Family Used Generator
| Price: |
US $ 14-14.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Description
ATS automatic transfer switch
ATS normal operating conditions:
1.The ambient temperature shall not be higher than +40ºC, or lower than -5ºC, and the daily average shall not exceed +35ºC.
2.The altitude of installation site shall not exceed 2000m.
3.Relative humidity shall not exceed 50% at the ambient temperature of +40ºC , a higher humidity is allowable at a lower temperature, the average maximum relative humidity is 90% in the wettest month at a monthly average minimum temperature of + 25 ºC,and special measures shall be taken for the condensation on surface of product due to temperature change.
4.Pollution class: class .
5.In place of no intense vibration and impact, no harmful gas corrosive and disruptive to the insulation, no sever dust, no conducting microparticle and explosive substance, no high electromagnetic interference.
ATS automatic transfer switch:
FTS series automatic transfer switch are mainly composed of power conversion actuator, circuit breaker and controller. This dual power switch with automatic, manual, power indicator, normal switch indicator, ready switch indicator working state. Switch's features are small volume, long life, low power consumption, light weight, stable work, easy to use and so on.2P 3P 4P 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,140A,160A,180A,200A,225A, 250A,315A,350A,400A,500A,630A.
moulded case ATS Technical Date:
| Model | FTS-63 | FTS-100 | FTS-225 | FTS-400 | FTS-630 |
| standard | GB/T 14048.11 |
| Electrical characteristic parameter | |
| Shell Frame Current | 63A | 100A | 225A | 400A | 630A |
| Rated Current(A) | 10, 16, 20, 25, 32, 40, 50, 63 | 25, 32, 40, 50, 63, 80, 100 | 100, 125, 140, 160, 180, 200, 225 | 225, 250, 315, 350, 400 | 400, 500, 630 |
| Rated operating voltage(Ue) | AC400V 50Hz |
| Rated insulation voltage(Ui) | AC500V | AC800V | AC800V | AC800V | AC800V |
| Rated impulse withstand voltage(Uimp) | 6KV | 8KV | 8KV | 8KV | 8KV |
| Switching Poles | 3P, 4P |
| Life | 6000 | 6000 | 6000 | 4000 | 3000 |
| Use Category | AC-33iB |
| Electrical level | CB Class |
| Protection level | IP30 |
| Control characteristic parameter | |
| Rated control supply voltage(Us) | AC230V 50Hz |
| Switching time | ≤3s | ≤3s | ≤3s | ≤4s | ≤4s |
Packaging & Shinpping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
ATS automatic transfer switch shingping:
1.Shipment port:SHANGHAI/NINGBO
2.By Air or by Sea for batch goods,Airport/ Port receiving;
3.Customers specifying freight forwarders or negotiable shipping methods!
Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
Company Information
FAQ
Q: If I'm interested in your ATS-automatic transfer switch when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your ATS-automatic transfer switch seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our ATS automatic transfer switch are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your ATS-automatic transfer switch quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

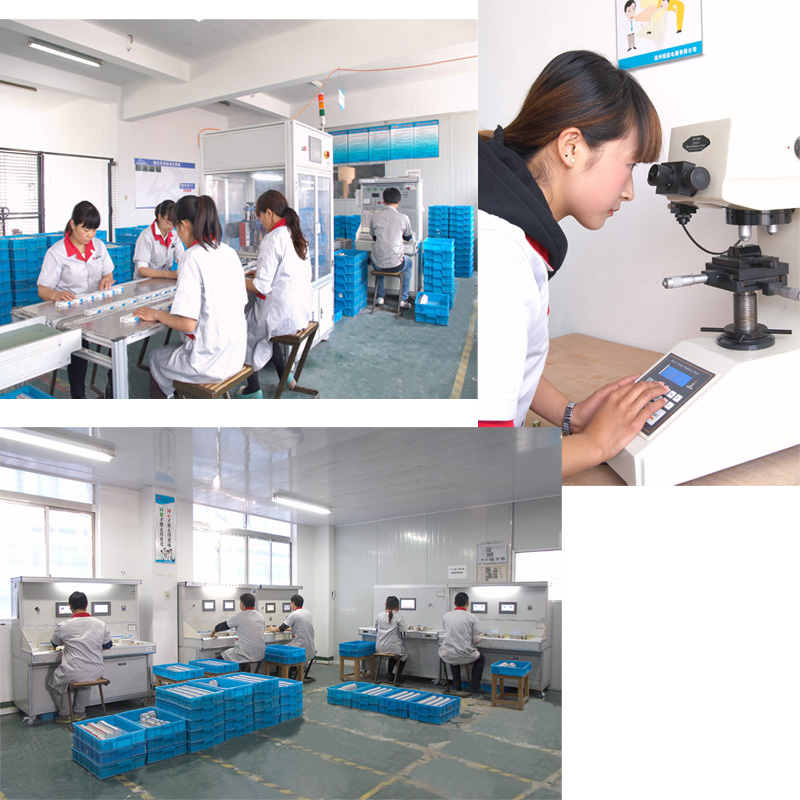

WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.
The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.
It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
