Low Voltage Ggd Metering Cabinet Switchgear
| Price: |
US $ 4000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Rated Voltage: |
AC 660 (1000) V |
| Rated Frequency: |
50 (60) Hz |
Product Description

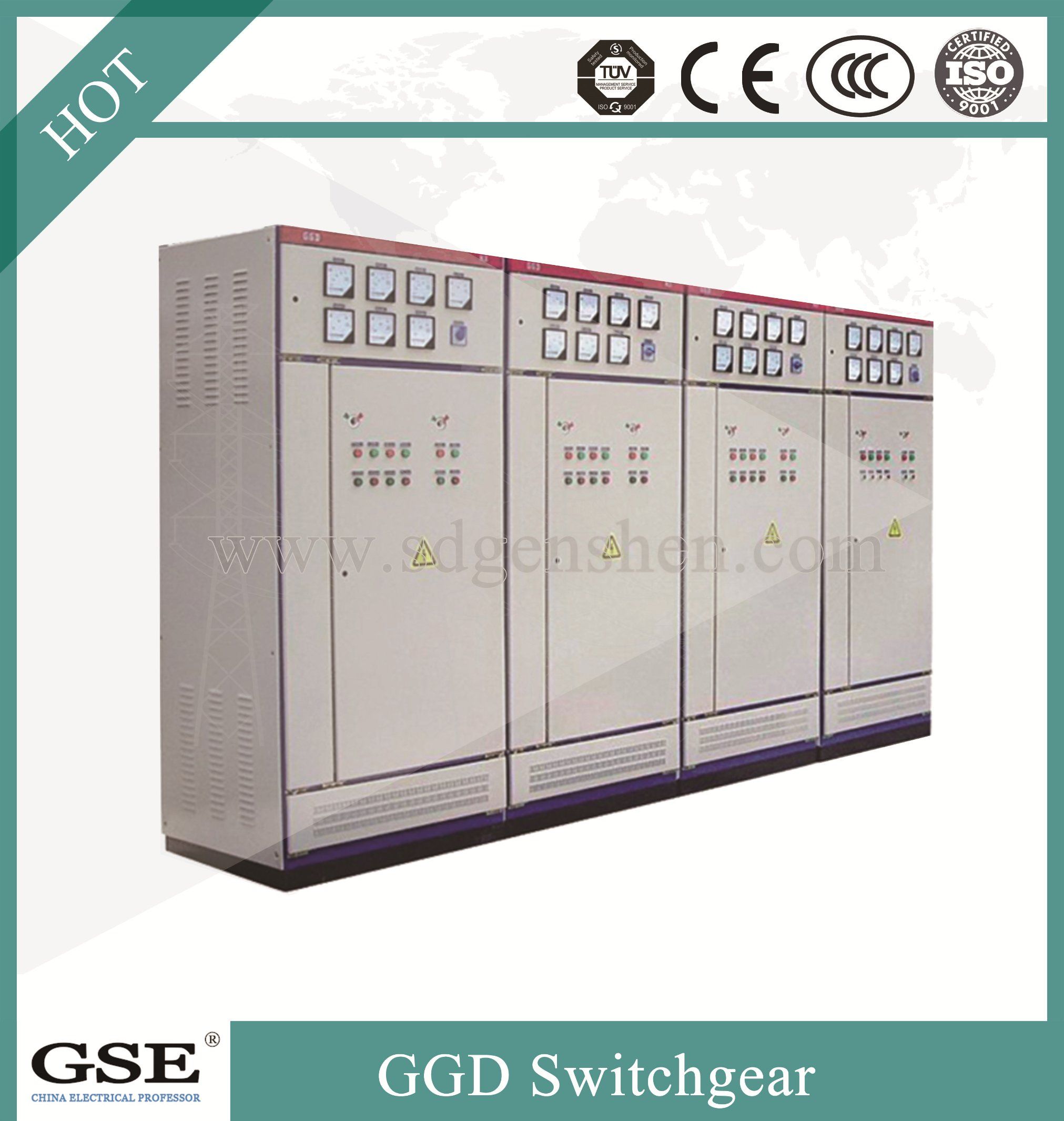

Low Voltage GGD Metering Cabinet Switchgear
The partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard
1.Product Overview:
The device is suitable for use in power plants, substations, petrochemical sectors, industrial enterprises, and high-rise buildings as the control center of power, distribution and motor of low-voltage distribution system, power conversion, distribution and controlling of capacitor compensation.
When using in situations like low-voltage power control center and motor control center of power plants and large-scale petrochemical industries, it can meet special requirements of the interface with the computer.
The device is designed according to the electric ministry, general electric power users and requirements of design department, in order to meet the needs of the continuously developmental power market in the areas of expansion in computer interface, power centralized control, convenient installation and maintenance, shorter time for accident treatment. The device is a innovative type of low-voltage draw-out switch cabinet that is in line with the safety, economic, reasonable and reliable principles. The product has high capability of breaking and connecting, high thermal stability, flexible electrical scheme, convenient combination, high practicability, innovative structure, high protection grade, etc. It can be used as the upgraded replacement of the low-voltage draw-out switch cabinet.
The device conforms to ICE 439-1 < Low-voltage complete switchgear and control equipment >, GB7251.1-1997 < Low-voltage complete switchgear>, ZBK 36001 < Low-voltage complete switchgear and control equipment > standards.
2.Normal working environment:| Air temperature around | No higher than 40ºC and lower than -5ºC |
| Average temperature | No more than +35ºC within 24 hrs. Needs to drop the capacity according to actual conditions; |
| When the highest temperature is +40ºC, the relative air humidity is no more than 50%. Larger relative humidity is allowed when the temperature is relatively low: ex. +20ºC 90%. Consider the frost effect due to temperature change accidentally; |
| Vertical of the ground | No more than 5 degrees, and the whole cabinets are in relatively same level (conforms to GBJ232-82 standard). |
| The device should be installed in a place without violent vibration and impact, and no corrosion to its electric components. |
3.Main technical parameters:| Item | parameter |
| Rated insulation voltage | |
| Rated working voltage | Primary loop | AC 660 (1000) V |
| AC 380 (660) V |
| Auxiliary circuit | AC 380, 220, 24 V |
| DC 220, 110 V |
| Rated frequency | 50 (60) Hz |
| Rated current of horizontal bus | < 4000 A |
| Rated current of vertical bus | 1000 A |
| Rated peak tolerant current | 105 (176) KA |
| Rated short-term tolerant current (1s) | 50 (80) KA |
| Power frequency testing voltage | Main loop to the ground | 2500 V/min |
| Auxiliary circuit to the ground | 2000 V/s |
| Protection grade | IP3x |

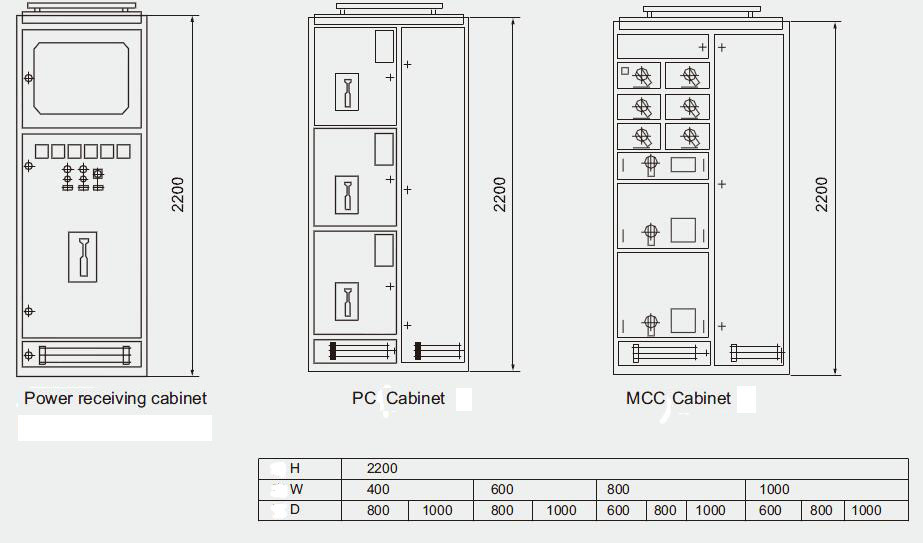

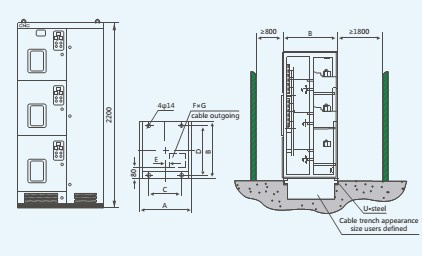

4.Drawn
5.Package
6.Our Company
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao.We are specialized in JP Cabinet, Power Distribution, Electric Energy Metering box, High Voltage Switch Cabinet, Box Type Substation, Transformer, Protection Devices, Low voltage switchgear and other electrical equipment and accessories with ISO9001, TUV, and CE standard in China, which is the partner of State Grid Corporation and National Railway Administration of China.We have always cooperated with China's government.We guarantee the highest quality of our products and services with every order.Taking exceptional care with every request is not only our policy, it's our promise.We will at all times be known as professional and honorable operators who are as good as our word.
7.Certificate
8.RFQ 8.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
8.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
8.3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
8.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
8.5.Q: How can I pay you?
A: T/T, L/C is very well used.
8.6.Q: What about the production?
A: Produce time is 4~6weeks.
8.7.Q: Could you offer some spare parts?
A: Yes, no problem.
8.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
9.Contact
Should you have any problem,please contact with us,we will reply to you in 24 hour.
Manager:Alvin
Mobile:+86 177 6202 7849
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary, Qingdao Yaoutongxing International Trading Co. Ltd, is founded in Qingdao. Registered capital of 50 million yuan, covers an area of 50 acres, production workshop 15000 square meters, 150 employees, annual sales reached about 80000000 yuan is a high-tech enterprise integrating a production, sales and system, company to the electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, glass steel material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales is one of the strongest influence and expertise in North China enterprises, is the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environmental management system certification, 3C certification enterprises.
The company is located 14 kilometers west of Yangxin County, the provincial highway and the intersection of the 317 provincial highway in the north, from the Binzhou-Dezhou freeway 3 km, strategic location, convenient transportation, and the transportation is convenient, and the transportation is convenient. Company covers an area of 26934.7 square meters, production workshop covers an area of 50 million square meters, office area of 2000 square meters, . With advanced production lines, testing equipment, thereby ensuring the quality of products, the formation of the development, testing to mass production of modern industrial production scale.
The company spirit of "technology and development, quality of survival" principle, adhere to the "customer first, quality first" purpose; Follow the "from the society and serving the society" the principle of "service above all, responsibility weightier than Mount Tai" for the purpose. We are committed to the prosperity and development of electric power and security. We sincerely welcome customers both at home and abroad to come and visit us.
