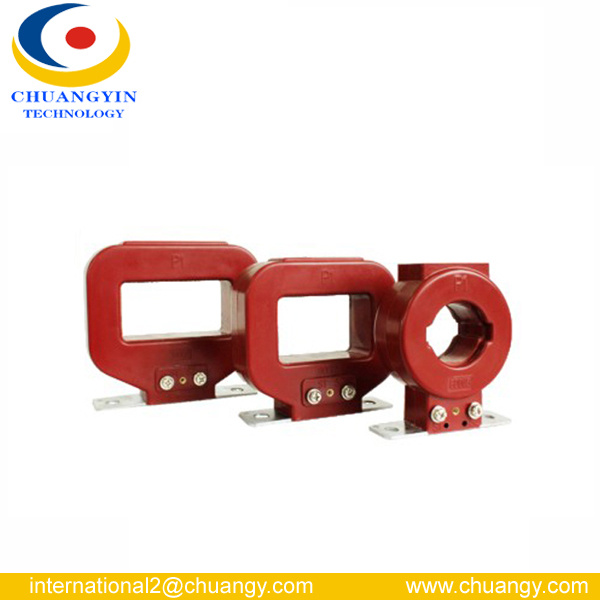

Low Voltage Indoor Epoxy Resin Current Transformer

Name: Low Voltage Indoor Epoxy Resin Current Transformer
Brand: all-electronics-online.com
SKU: 757848915
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 9-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMZJ1-0.5 Current Transformer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	Epoxy Resin
Different Size:	LV
Current Transformer:	CT
China:	Factory
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

LMZJ1-0.5 Current transformer is used indoor,
be suitable for rated voltage 0.5/0.66kV.
It is widely used for measuring current,
electric energy and protective relaying
in the power system with the rated frequency 50Hz,
epoxy resin casting current transformer adopts fixed bottom plate
Compliant:
IEC60044-1 standard
IEC61869-1&2 standard

Main technical parameter and dimension

Rated Current Ratio(A)	Rated output (VA)				Np
Rated Current Ratio(A)	0.5	0.5s	0.2	0.2s	Np
5/5	5	5	5	5	30
10/5	5	5	5	5	15
15/5	5	5	5	5	10
20/5	5	5	5	5	10
25/5	5	5	5	5	6
30/5	5	5	5	5	5
40/5	5	5	5	5	5
50/5	5	5	5	5	3
50/5	5	5			1
75/5	5	5	5	5	2
75/5	5	5			1
100/5	5	5	5	5	2
100/5	5	5			1
150/5	5	5	5	5	1
200/5	5	5	5	5	1
250/5	5	5	5	5	1
300/5	5	5	5	5	1

Rated Current Ratio(A)	Rated output (VA)				Np
Rated Current Ratio(A)	0.5	0.5s	0.2	0.2s	Np
400/5	5	5	5	5	1
500/5	10	5	5	5	1
600/5	10	5	5	5	1

*600/5	5				1
750/5	10	10	10	5	1
800/5	10	10	10	5	1
*1000/5	10	10	10	5	1

1000/5	10	10	10	5	1
1200/5	10	10	10	10	1
1500/5	10	10	10	10	1
*2000/5	10	10	10	10	1

2000/5	20	20	20	10	1
2500/5	20	20	20	10	1
3000/5	20	20	20	10	1

Remarks: With "*" current ratio can be customized.
