Low Voltage Insulator Busbar Insulator

Low Voltage Insulator Busbar Insulator
Price: US $ 0.1-0.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tensile Strength (Lbs): 500-1500
Torgue Strength (FT Lbs): 6-40
Voltage Withstand: 6-25kv
Brass Screw: 6, 8, 10
Screw Nut: as Per Request
Colors: Red, Beige, Blue, Black
Weight: 40-245g
Application: Low-voltage
Material: Composite Polymer
Structure: Pin Insulator
Type: Sm Type
Brand: Tosunlux

Product Description

Specification

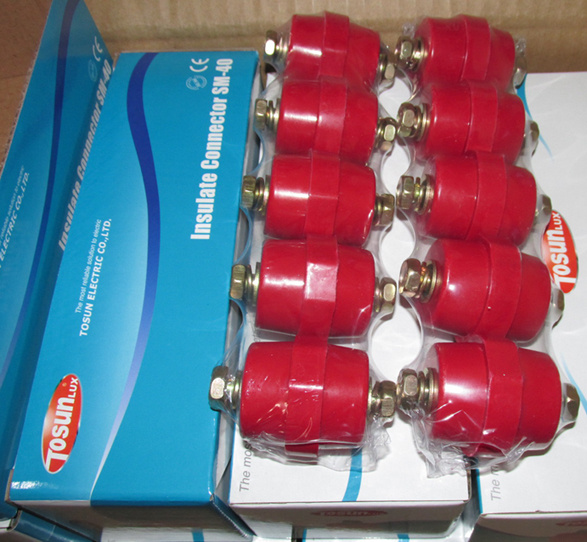

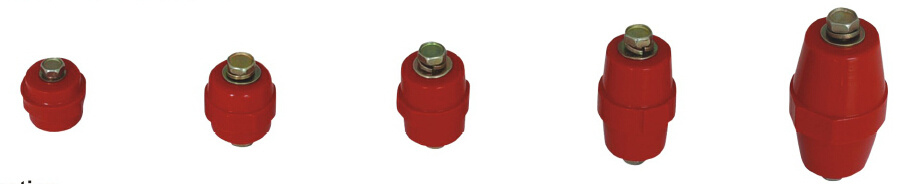

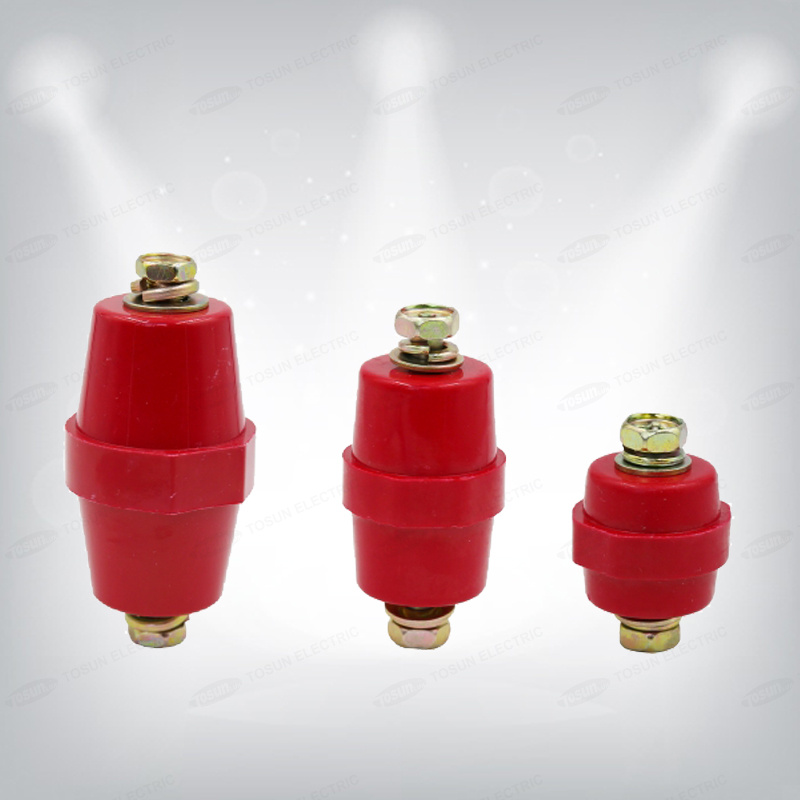

ModelSM-25SM-30SM-35SM-40SM-51SM-76
Tensile Strength(lbs)50055060065010001500
Torgue Strength(ft lbs)6810121525
Withstand Voltage(kv)6810121525
Screw(mm)6888810
Weight(g)40627310497245

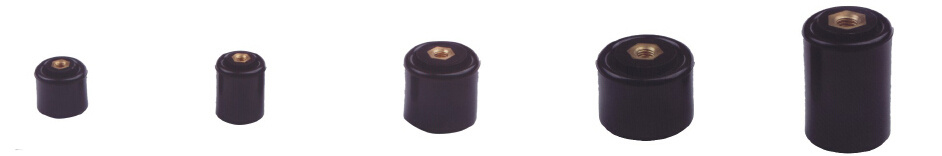

Model30x30mm30x40mm40x40mm50x40mm40x60mm
Tensile Strength(lbs)5006506501000650
Torgue Strength(ft lbs)840125040
Withstand Voltage(kv)515101010
Screw(mm)6681010
Weight(g)1015131313

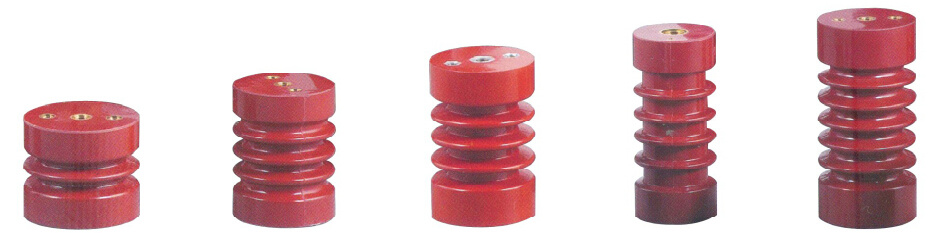

ModelEL-30NEL-24EL-15EL-12EL-6MEL-3MV6090V60155V70210J06-170
End Diameters(a/b)(mm)100707058707060607080
Height(mm)310210142130906090155210300
Surface Leakage Distance(mm)63035621017212588140197285520
Rated Voltage(kv)362415127.23.68.5122236
Low Frequency Dielectric Strength(kv)756050362216----
ImpuLse Voltage Resistance200125110957560----
Persistent Bending Strength(1 min,KG)500300400300400400----
Tensile Strength(kg)>3000>1500>1500>2000>1200>1200----
Torgue Strength(kg-m)25>25>25>25>25>25----
