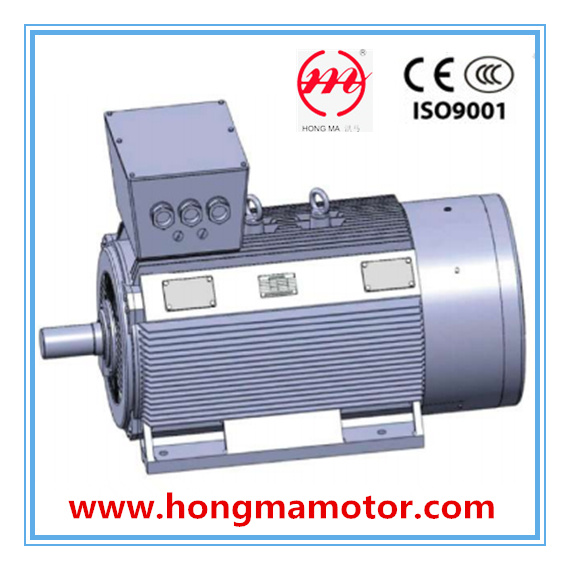

Low-Voltage Large-Power Totally Enclosed Squirrel-Cage Three-Phase Asynchronous Induction Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size: |
400, 450 |
| Voltage: |
380V/660V |
| Frequency: |
50Hz |
| Insulation Class: |
F |
| Protection Class: |
IP55 |
| Installation Method: |
B3 |
| Cooling Method: |
IC411 |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Number Of Poles: |
2, 4, 6, 8, 10 |
| Certification: |
CE |
| Brand: |
Hongma |
Product Description
Performance and Characteristic: HM series low-voltage large-power totally ecclosed squirrel-cage three phase asynchronous motors are based on Y2 series motors, which adopts new material and new technique, the identical contour structure with Y2 series. The motor adopts F grade insulatio, IP55 degree of protection, 380V or 660V rated voltage, 50Hz rated frequency, IMB3 installation type and IC411 cooling method. This series motors are characterized with small volume, light weight, compact structure, high efficiency and low noise to satisfy consumer's requrement for environmetal protection. This series are widely used for driving various kinds of mechanical equlpments such as pumps, blowers, compressor, transport machinery, as well as for prime mover inpetrochemical and mine industry.
Technical Data | Type | | | | | | | | | | |
| | Power | Rated Voltage | Rated Speed | Efficiency | Power Factor | Rated current | | | | |
| | (kW) | (V) | (rpm) | (%) | Cosφ | (A) | Ts/Tn | Tmax/Tn | Is/In | (Kg) |
| HM | 400M1-2 | 355 | 380 | 2985 | 95.7 | 0.9 | 626.2 | 1.6 | 2.0 | 7.5 | 2750 |
| HM | 400M2-2 | 400 | 380 | 2985 | 96.0 | 0.9 | 703.4 | 1.70 | 2.0 | 7.5 | 2880 |
| HM | 400M3-2 | 450 | 380 | 2985 | 96.1 | 0.9 | 790.5 | 1.50 | 2.0 | 7.5 | 3000 |
| HM | 400L-2 | 500 | 380 | 2985 | 96.2 | 0.9 | 867.8 | 1.50 | 2.0 | 7.5 | 3160 |
| HM | 400M1-4 | 355 | 380 | 1490 | 95.8 | 0.9 | 632.6 | 1.60 | 2.0 | 6.5 | 2900 |
| HM | 400M2-4 | 400 | 380 | 1490 | 95.9 | 0.9 | 712.1 | 1.30 | 2.0 | 6.5 | 3000 |
| HM | 400M3-4 | 450 | 380 | 1490 | 96.0 | 0.9 | 791.3 | 1.50 | 2.0 | 6.5 | 3150 |
| HM | 400L1-4 | 500 | 380 | 1490 | 96.1 | 0.9 | 898.3 | 1.70 | 2.0 | 7 | 3310 |
| HM | 400L2-4 | 560 | 380 | 1490 | 96.1 | 0.9 | 1006.1 | 1.80 | 2.0 | 7 | 3460 |
| HM | 400M1-6 | 315 | 380 | 990 | 95.2 | 0.9 | 577.9 | 1.40 | 2.0 | 6.5 | 3410 |
| HM | 400M2-6 | 355 | 380 | 990 | 95.4 | 0.9 | 649.9 | 1.20 | 2.0 | 6.5 | 3650 |
| HM | 400L1-6 | 400 | 380 | 990 | 95.6 | 0.9 | 722.4 | 1.50 | 2.0 | 6.5 | 3700 |
| HM | 400L2-6 | 450 | 380 | 990 | 95.8 | 0.9 | 811.0 | 1.20 | 2.0 | 6.5 | 3820 |
| HM | 400L3-6 | 500 | 380 | 990 | 95.9 | 0.9 | 900.2 | 1.60 | 2.0 | 6.5 | 3970 |
| HM | 400M1-8 | 250 | 380 | 745 | 95.2 | 0.8 | 486.6 | 1.40 | 2.0 | 6.5 | 2900 |
| HM | 400M2-8 | 280 | 380 | 745 | 95.2 | 0.8 | 545.0 | 1.30 | 2.0 | 6.5 | 3000 |
| HM | 400L1-8 | 315 | 380 | 745 | 95.4 | 0.9 | 590.2 | 1.30 | 2.0 | 6.5 | 3100 |
| HM | 400L2-8 | 355 | 380 | 745 | 95.7 | 0.9 | 663.1 | 1.20 | 2.0 | 6.5 | 3250 |
| HM | 400L3-8 | 400 | 380 | 745 | 95.3 | 0.9 | 750.3 | 1.10 | 2.0 | 6.5 | 3400 |
| HM | 400M1-10 | 180 | 380 | 595 | 95.1 | 0.8 | 364.0 | 1.20 | 2.0 | 6.0 | 2900 |
| HM | 400M2-10 | 200 | 380 | 595 | 95.3 | 0.8 | 398.6 | 1.20 | 2.0 | 6.0 | 3000 |
| HM | 400L1-10 | 250 | 380 | 595 | 95.5 | 0.8 | 491.0 | 1.10 | 2.0 | 6.0 | 3150 |
| HM | 400L2-10 | 280 | 380 | 595 | 95.7 | 0.8 | 548.8 | 1.20 | 2.0 | 6.0 | 3380 |
| HM | 400L3-10 | 315 | 380 | 595 | 95.9 | 0.8 | 616.1 | 1.20 | 2.0 | 6.0 | 3580 |
| HM | 450M3-2 | 710 | 660 | 2985 | 96.6 | 0.9 | 698.9 | 1.20 | 2.7 | 6.5 | 4290 |
| HM | 450M4-2 | 800 | 660 | 2985 | 96.6 | 0.9 | 787.5 | 1.20 | 2.7 | 6.5 | 4400 |
| HM | 450M1-4 | 630 | 660 | 1495 | 96.5 | 0.9 | 641.7 | 1.60 | 2.6 | 6.5 | 4560 |
| HM | 450M2-4 | 710 | 660 | 1495 | 96.5 | 0.9 | 723.2 | 1.60 | 2.6 | 6.5 | 4620 |
| HM | 450M3-4 | 800 | 660 | 1495 | 96.7 | 0.9 | 813.2 | 1.60 | 2.6 | 6.5 | 4700 |
| HM | 450M4-4 | 900 | 660 | 1495 | 96.7 | 0.9 | 914.8 | 1.60 | 2.6 | 6.5 | 4900 |
| HM | 450M1-6 | 500 | 660 | 995 | 96.2 | 0.9 | 534.9 | 1.90 | 2.4 | 6.5 | 4550 |
| HM | 450M2-6 | 560 | 660 | 995 | 96.2 | 0.9 | 599.1 | 1.90 | 2.4 | 6.5 | 4610 |
| HM | 450M3-6 | 630 | 660 | 995 | 96.5 | 0.9 | 671.9 | 1.90 | 2.4 | 6.5 | 4700 |
| HM | 450M4-6 | 710 | 660 | 995 | 96.5 | 0.9 | 757.2 | 1.90 | 2.4 | 6.5 | 5100 |
| HM | 450M1-8 | 400 | 660 | 745 | 95.6 | 0.8 | 446.4 | 1.80 | 2.4 | 6.1 | 4580 |
| HM | 450M2-8 | 450 | 660 | 745 | 96.0 | 0.8 | 500.1 | 1.80 | 2.4 | 6.1 | 4690 |
| HM | 450M3-8 | 500 | 660 | 745 | 96.2 | 0.8 | 554.5 | 1.80 | 2.4 | 6.1 | 4750 |
| HM | 450M4-8 | 560 | 660 | 745 | 96.2 | 0.8 | 621.0 | 1.80 | 2.4 | 6.1 | 4900 |
| HM | 450M1-10 | 355 | 660 | 595 | 95.2 | 0.8 | 423.7 | 1.30 | 2.5 | 6.1 | 4900 |
| HM | 450M2-10 | 400 | 660 | 595 | 95.6 | 0.8 | 475.4 | 1.30 | 2.5 | 6.1 | 5100 |
| HM | 450M3-10 | 450 | 660 | 595 | 95.6 | 0.8 | 534.8 | 1.30 | 2.5 | 6.1 | 5210 |
| HM | 450M3-2 | 710 | 660 | 2985 | 96.6 | 0.9 | 698.9 | 1.20 | 2.7 | 6.5 | 4290 |
| HM | 450M4-2 | 800 | 660 | 2985 | 96.6 | 0.9 | 787.5 | 1.20 | 2.7 | 6.5 | 4400 |
| HM | 450M1-4 | 630 | 660 | 1495 | 96.5 | 0.9 | 641.7 | 1.60 | 2.6 | 6.5 | 4560 |
| HM | 450M2-4 | 710 | 660 | 1495 | 96.5 | 0.9 | 723.2 | 1.60 | 2.6 | 6.5 | 4620 |
| HM | 450M3-4 | 800 | 660 | 1495 | 96.7 | 0.9 | 813.2 | 1.60 | 2.6 | 6.5 | 4700 |
| HM | 450M4-4 | 900 | 660 | 1495 | 96.7 | 0.9 | 914.8 | 1.60 | 2.6 | 6.5 | 4900 |
| HM | 450M1-6 | 500 | 660 | 995 | 96.2 | 0.9 | 534.9 | 1.90 | 2.4 | 6.5 | 4550 |
| HM | 450M2-6 | 560 | 660 | 995 | 96.2 | 0.9 | 599.1 | 1.90 | 2.4 | 6.5 | 4610 |
| HM | 450M3-6 | 630 | 660 | 995 | 96.5 | 0.9 | 671.9 | 1.90 | 2.4 | 6.5 | 4700 |
| HM | 450M4-6 | 710 | 660 | 995 | 96.5 | 0.9 | 757.2 | 1.90 | 2.4 | 6.5 | 5100 |
| HM | 450M1-8 | 400 | 660 | 745 | 95.6 | 0.8 | 446.4 | 1.80 | 2.4 | 6.1 | 4580 |
| HM | 450M2-8 | 450 | 660 | 745 | 96.0 | 0.8 | 500.1 | 1.80 | 2.4 | 6.1 | 4690 |
| HM | 450M3-8 | 500 | 660 | 745 | 96.2 | 0.8 | 554.5 | 1.80 | 2.4 | 6.1 | 4750 |
| HM | 450M4-8 | 560 | 660 | 745 | 96.2 | 0.8 | 621.0 | 1.80 | 2.4 | 6.1 | 4900 |
| HM | 450M1-10 | 355 | 660 | 595 | 95.2 | 0.8 | 423.7 | 1.30 | 2.5 | 6.1 | 4900 |
| HM | 450M2-10 | 400 | 660 | 595 | 95.6 | 0.8 | 475.4 | 1.30 | 2.5 | 6.1 | 5100 |
| HM | 450M3-10 | 450 | 660 | 595 | 95.6 | 0.8 | 534.8 | 1.30 | 2.5 | 6.1 | 5210 |
Our Certificate

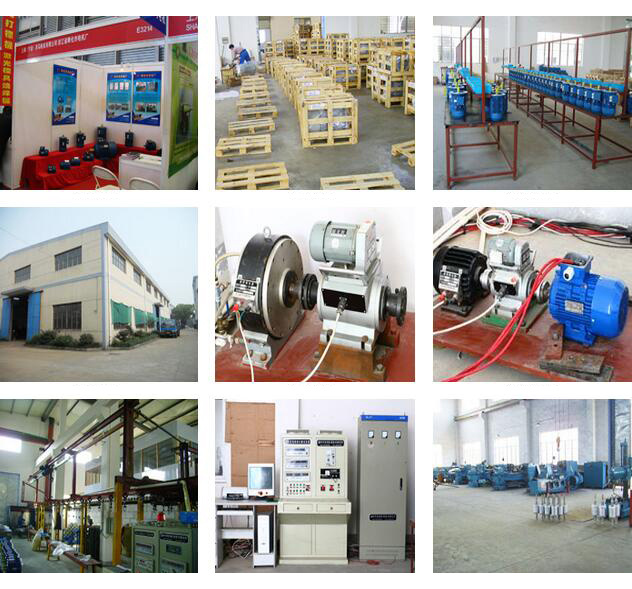

Our Factory Details
