Low Voltage Mini Power Transformer Input 5A 120A CT Current Transformer

Name: Low Voltage Mini Power Transformer Input 5A 120A CT Current Transformer
Brand: all-electronics-online.com
SKU: 772724515
Availability: InStock
Rating: 4.3 (54 reviews)

Price:	US $ 3.85-4.41/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCT-2091H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	5%in-130%in
Rated Output:	5A/1A
Rated Input:	5A-120A
Frequency:	50-400Hz
Internal Structure:	Epoxy
Bobbin:	PBT
Construction:	Tie
Case Material:	ABS
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Certification:	CE,RoHS
Brand:	Chana

Product Description

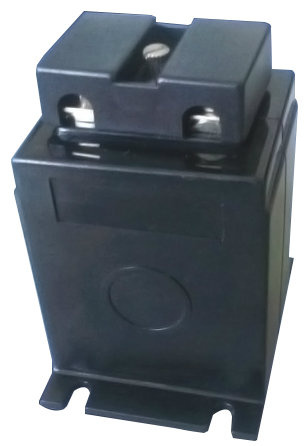

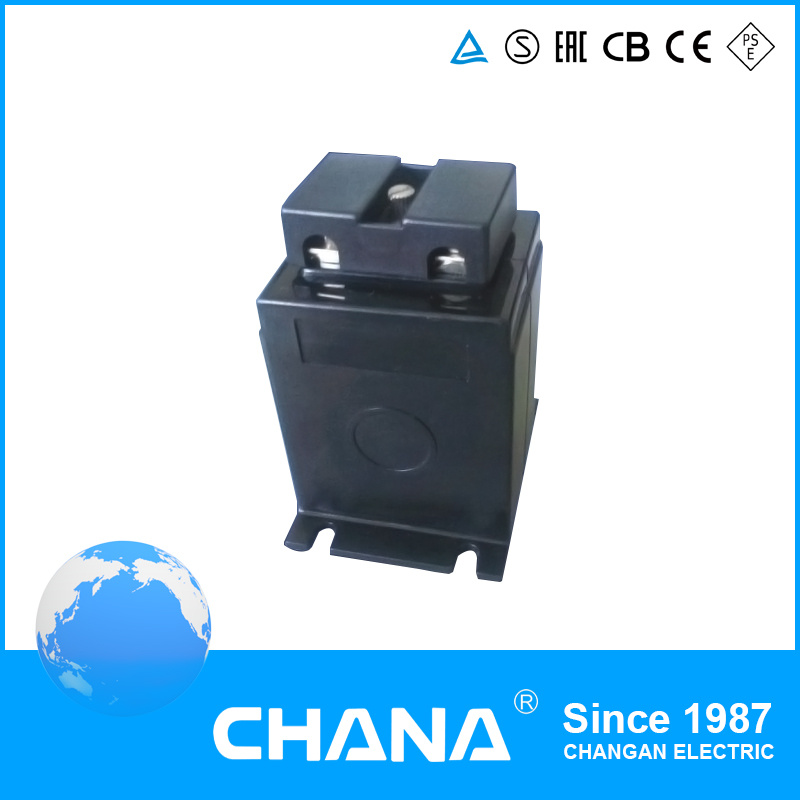

SCT-2091H Series Low Voltage Current Transformers

1. Application

Current measurement, monitoring and protection for electrical wiring and equipment. Current and power measurement for electric mo tors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation control system.Current ,power and energymonitoring device.

2. Feature

The structure of the self-locking, safe, easy to install, portable Wide inner window, allowing clamping of big cables or - bus bars Wide range of sizes to accommodate all the existing installations. SCTK660A series retro-fit (split-core) currenttransformer hasbeen specially designed to facilitate their installation in new or already existing net works. They may beinstalled without openingany cableor bus-barcircuit. Aninternal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.

3. Technique Index

Frequency	50-2.5khz
Rated Input	0.5a-120a
Measuring range	5%in-130%in
Rated Output	5A/1A
Ratio	≤±0.2%
Phase angle	≤±10min
Dielectric strength	2.5kv/1mA/1min
Insulation Resistance	DC500V/100MΩ/min

Case	ABS
Bobbin	ABS
Core	Silicon steel
Internal sturcture	Epoxy
Construction	Tie
Operating Temp	-25ºC~+75ºC
Operating Humidity	≤85%
Output Connection	Terminal

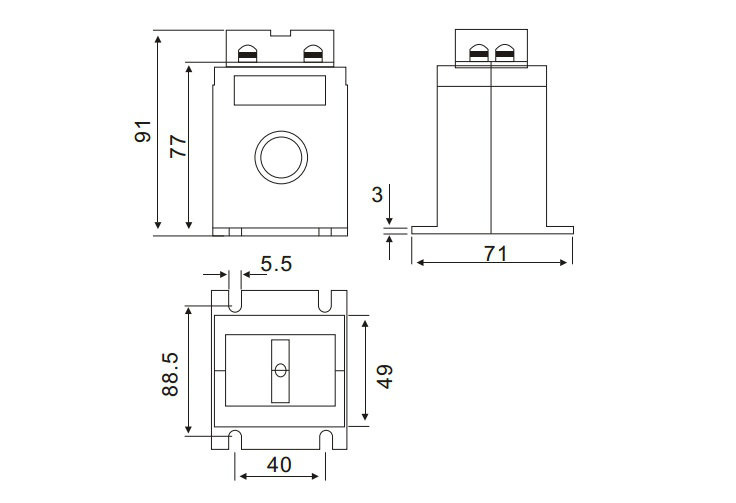

4. Diagram

5. Type Selection(Output:1A/5A)

Ratio	Burden(V/A)/Class
Ratio	0.2	0.5	1.0
5/5	1.5	2.5	3.75
10/5	1.5	2.5	3.75
15/5	1.5	2.5	5
20/5	1.5	2.5	5
25/5	2.5	2.5	5
30/5	2.5	3.75	5
40/5	2.5	3.75	5
50/5	2.5	3.75	5
80/5	2.5	3.75	5
100/5	2.5	3.75	5

6. Feature Product

7. Company Profile

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in
MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER,
STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate:ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
