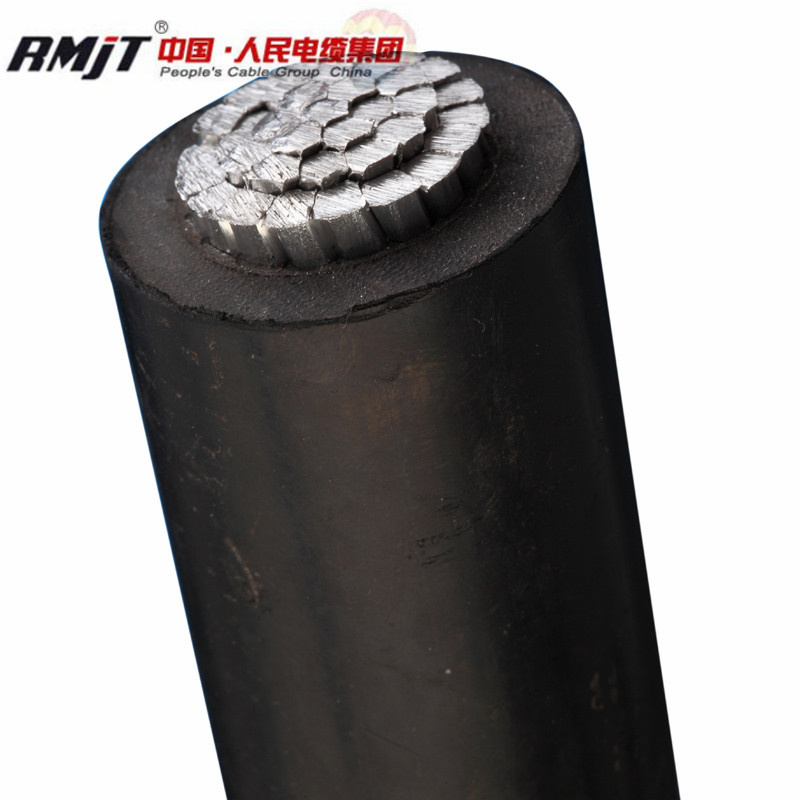

Low Voltage OFC Power Cable
| Price: |
US $ 0.1-99.8/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
power cable |
| Product Name: |
Low Voltage OFC Power Cable |
| Type Of Company: |
Manufacturer |
| Number Of Wire: |
1, 2, 3, 4, 5, 2+1, 3+1, 3+2 |
| Cable Type: |
with Armoring or Without Armoring |
| Product Model: |
VV, Vlv, Yjv, Yjlv, Yjv22, Yjlv22, Yjv32, Yjlv32.. |
| Standard: |
GB-T12706-2008; IEC 60502 |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Package: |
Wooden Drum, Steel Drum or as Your Requirement |
| Country Of Origin: |
Professional Manufacturer of 25 Years in China |
| Advantages: |
High Quality, Competitive Price, Fast Delivery |
| Application: |
Computer |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
Rmjt |
Product Description
Low voltage ofc power cable
1.Applications of pvc power cable
PVC Insulated Power Cable is used for power distribution lines with rated voltage up to 3.6/6kv.
2.Standards of pvc power cable
PVC Insulated Power Cable meets or exceeds the following standards:
IEC 60502,BS,DIN,GB12706-2008 standards.
3.Operating Features of pvc power cable
1). The long-term permissible operation temperature of the conductor shall not be higher than 70 ºC .
2). The max temperature of the conductor of cable should less then 160 when short circuit. (less then 5 second).
3). The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0 ºC .
4). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5). Light weight, perfect bending properties, installed and maintained easily and conveniently.
4. Model and Name of xlpe/pvc insulated power cable
XLPE Insulated Power Cable| China Type | Description | Application |
| Cu | Al |
| YJV | YJLV | XLPE insulation PVC sheath power cable (Cu/XLPE/PVC) | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
| YJY | YJLY | XLPE insulation PE sheath power cable (Cu/XLPE/PE) |
| YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable
(Cu/XLPE/PVC/STA/PVC) | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
| YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable
(Cu/XLPE/PVC/STA/PE) |
| YJV62 | YJLV62 | XLPE insulation, no magnetism steel tape armor, PE sheath power cable |
| YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable
(Cu/XLPE/PVC/SWA/PVC) | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint
. |
| YJV72 | YJLV72 | XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
| YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable | Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.
|
PVC Insulation Power Cable| TYPE | Description of Cable | Main Applications |
| CU core | AL core | | |
| VV | VLV | Copper/Aluminium core,PVC insulated,PVC sheathed power cable | Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
| VY | VLY | Copper/Aluminium core,PVC insulated,PE sheathed power cable |
| VV22 | VLV22 | Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable | Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
| VV23 | VLV23 | Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable |
| VV32 | VLV32 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable | Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
| VV33 | VLV33 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable |
| VV42 | VLV42 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable | Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
| VV43 | VLV43 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable
|

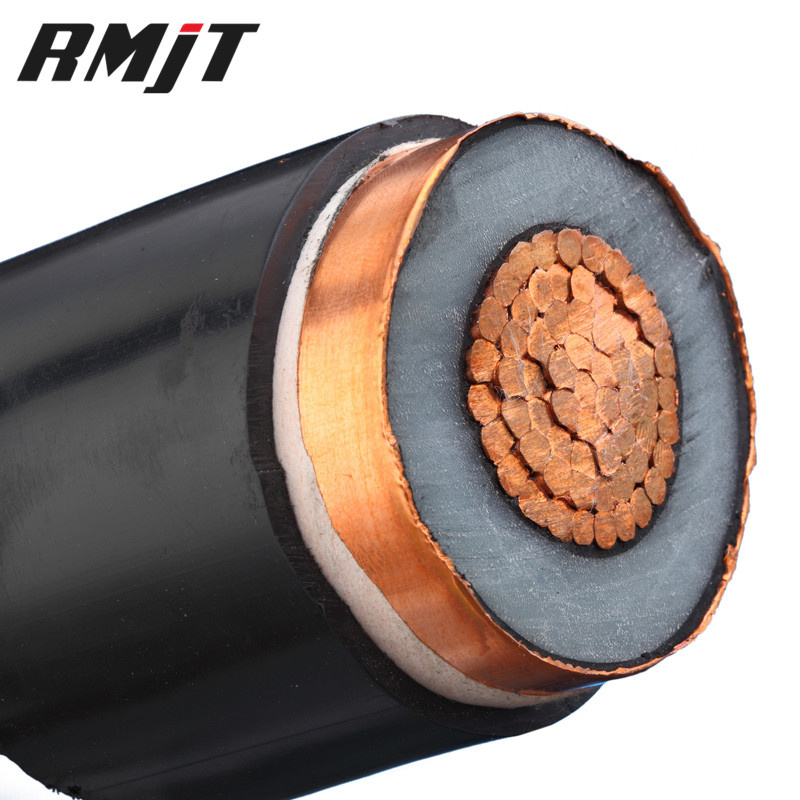

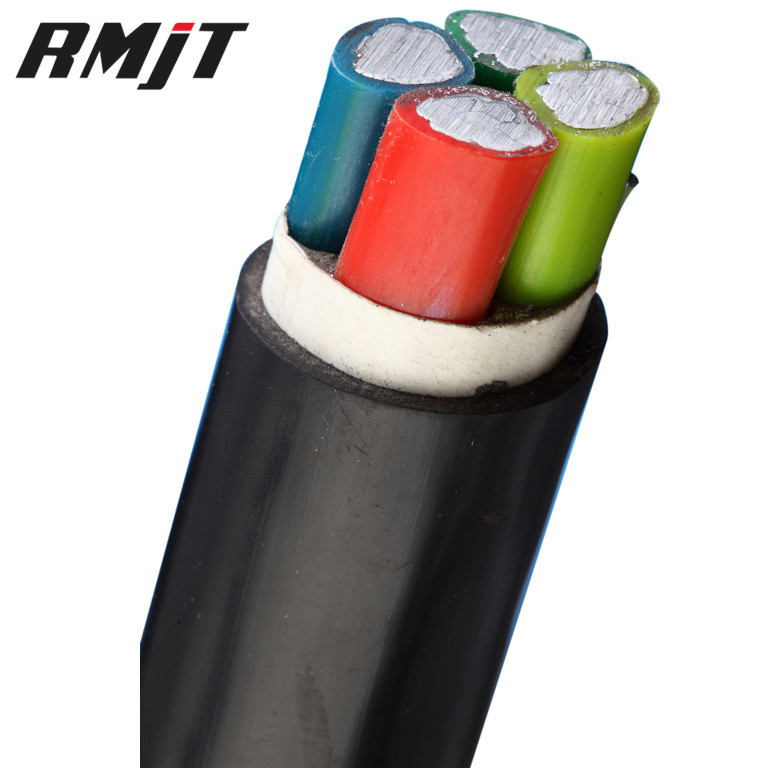

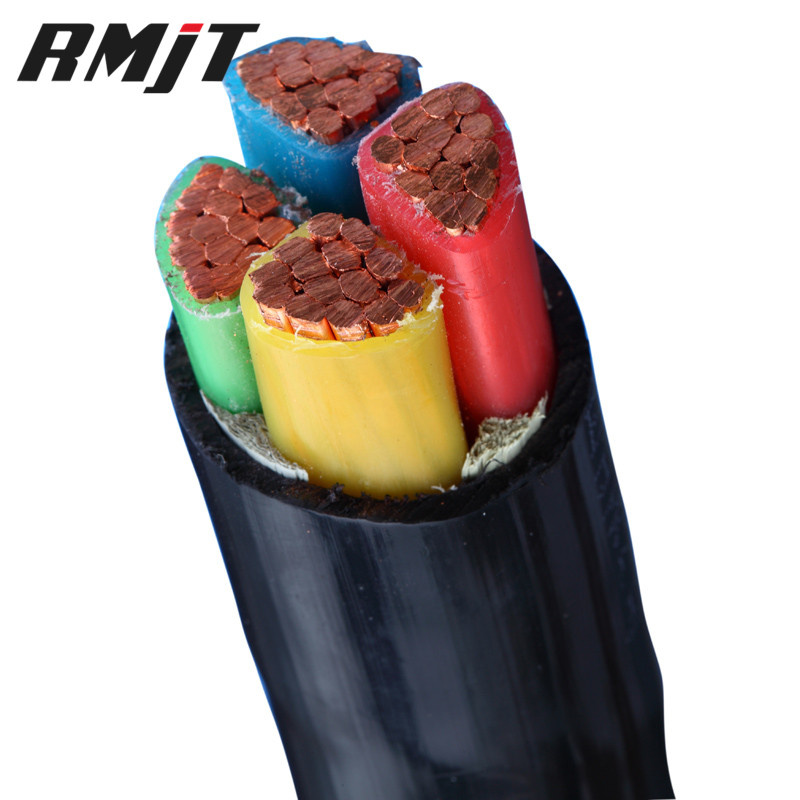

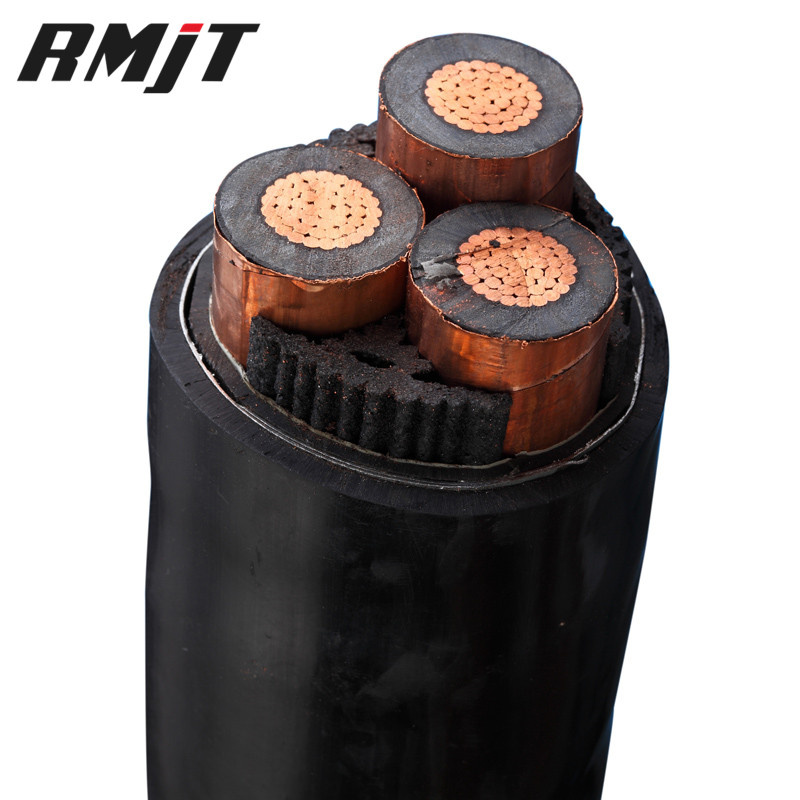

Product Pictures:
Packing and Delivery:

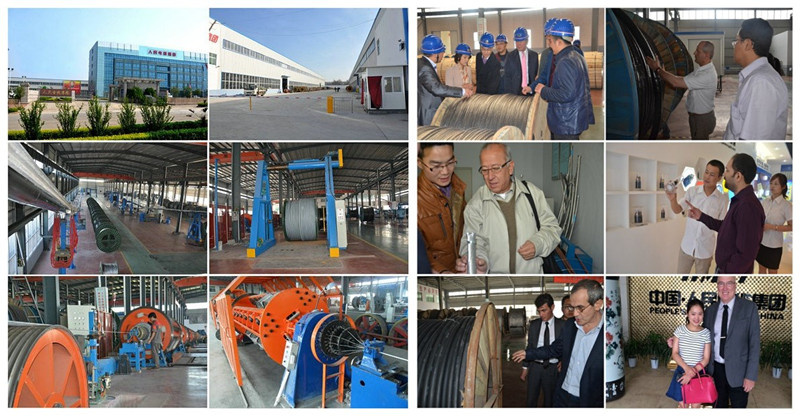

Our Company:
People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
FAQ:
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3)How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4)What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Contact Information:
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
If you have any questions, please contact me, I will reply you as soon as possible.
Welcome your inquiry.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
