Low Voltage Pin Insulator Porcelain Insulator

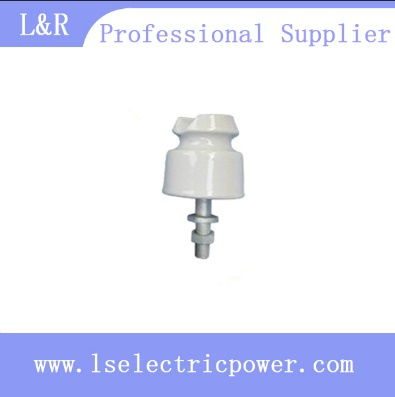

Name: Low Voltage Pin Insulator Porcelain Insulator
Brand: all-electronics-online.com
SKU: 784359665
Availability: InStock
Rating: 4.4 (58 reviews)

Price:	US $ 1-30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	PD-1T and PD-2T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
ODM And OEM:	Accept
Lead Time:	20days
Size:	Any Size Can Be Ordered
Application:	Low-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	B Type Insulator
Brand:	L&R

Product Description

Description
Application:Low voltage
Material:Porcelain
Structure:Pin insulator
Usage:Low voltage power transmission
Packing:Carton or plywood case

technical specification

Model No.	Dimensions										Mechanical failure strength of ceramic parts not less than (kN)	Power frequency voltage not less than (kv)		Weight(kg)
Model No.	H	H1	h	h1	h2	D	d1	d2	R	R1		dry	wet	Weight(kg)
PD-1T	145	80	80	50	35	80	50	16	10	10	8	35	15	0.8
PD-2T	125	69	66	45	35	70	44	12	8	8	5	30	12	-
