Henan Jinshui Cable Group Co., Ltd. >> Low Voltage Power Cable 4X6+1X6 mm2

Low Voltage Power Cable 4X6+1X6 mm2

Low Voltage Power Cable 4X6+1X6 mm2
Price: US $ 0.5/Meter
Min Order: 500/Meter
Pay Type: L/C,T/T
Prod Model: 4x6+1x6 mm2
Max D.C Rresistance At 20°c: 3.08
Voltage: 400V
Jacket: Flame Retardant PVC
Standard: IEC60502
Armour: Galvanized Steel Wire .
Type: Insulated
Conductor Type: Stranded
Application: Overhead
Conductor Material: Copper
Insulation Material: XLPE
Certification: VDE
Brand: Jinshui

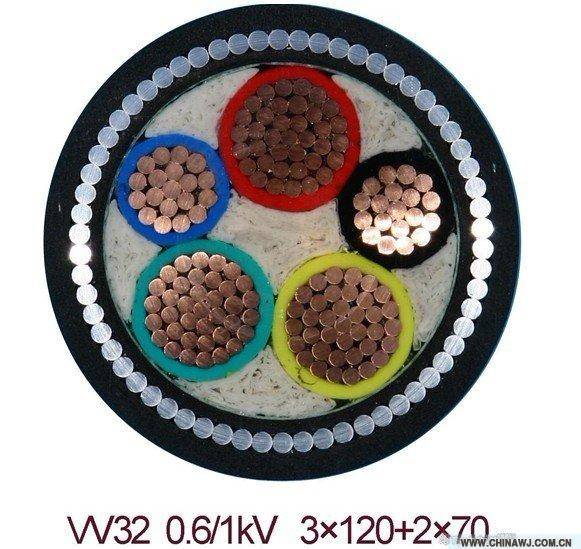

Product Description

Our company has been carrying out Chinese national standard GB 12706 and GB 12666.6(equivalent to IEC 60502 and IEC 60331)for PVC insulated power cable and fire resistant cable needed by domestic customer, and for foreign customers we can manufacture in accordance with BS, DIN and other countries, standards. In addition, we can design and manufacture PVC insulated power cable with special characteristics according to needs of customers.

No.DescriptionUnitData Offered by Bidder
1Manufacture Henan Jinshui Cable Group Co., LTD.
2Cable name Low voltage power cable
3Standard  IEC60520
4Specified voltage V400
5Conductor material Copper
6Conductor sizemm26
7Numbers of wires/single wire diameter 1/2.76
8Conductor diameter, approx.mm2.76
9Conductor D.C. resistance at 20ºCΩ/km3.08
10Insulation Material XLPE
11Insulation Thickness, approx.mm0.7
12Insulated conductor diameters, approx.mm4.16
13Inner Liner material PVC
14Armour material Galvanized Steel Wire
15Armour wire numbers*single wire  35*1.25
16Outer sheath material Flame Retardant PVC
17Outer sheath thickness, approx.mm1.8
18Diameter of complete cable, approx.mm19.87
19WeightKg/km887
20Packing lengthm1000
21Packing type wooden drum
22Drum dimensionsmm1100*1100

















Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.

Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.

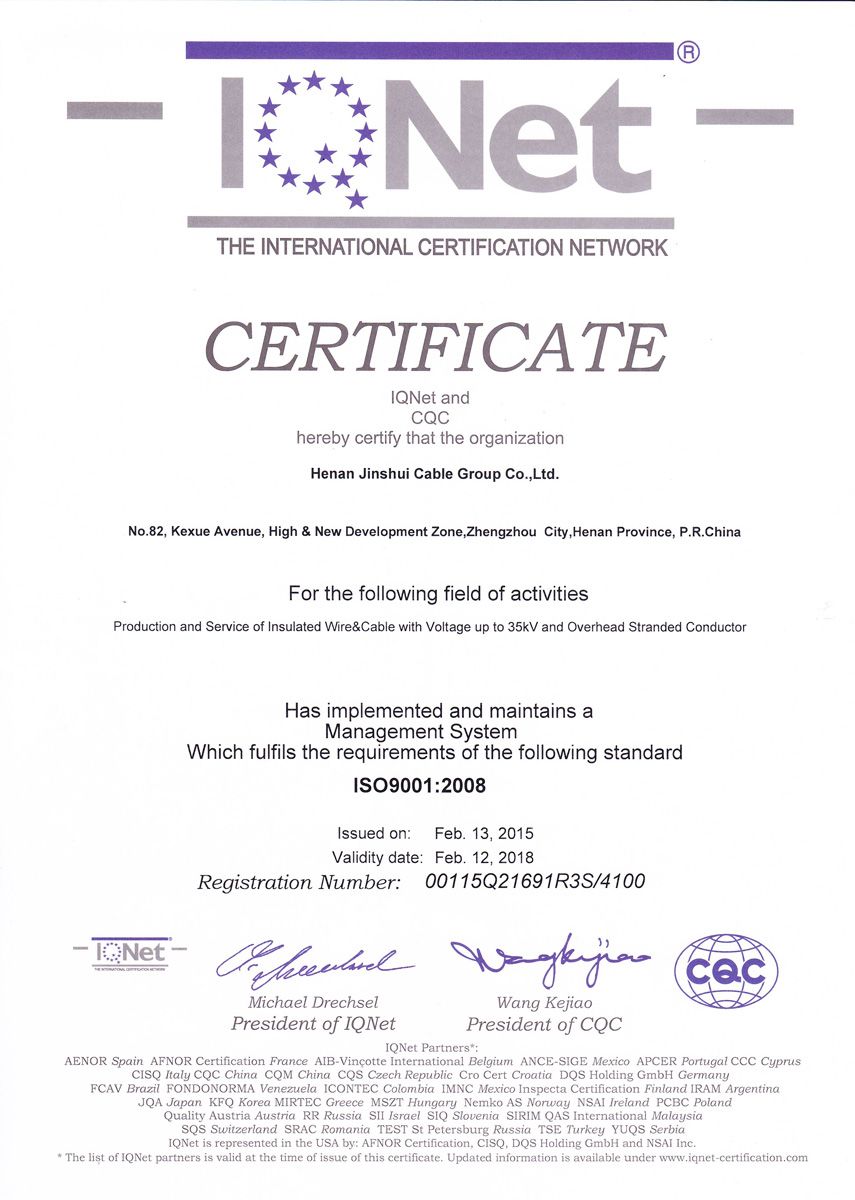

As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
