| Prod Model: |
electrical wire |
| Number Of Wire: |
Solid, Two, Three.. |
| Type: |
Insulated |
| Application: |
House and Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Strand |
| Brand: |
Rmjt |
Product Description

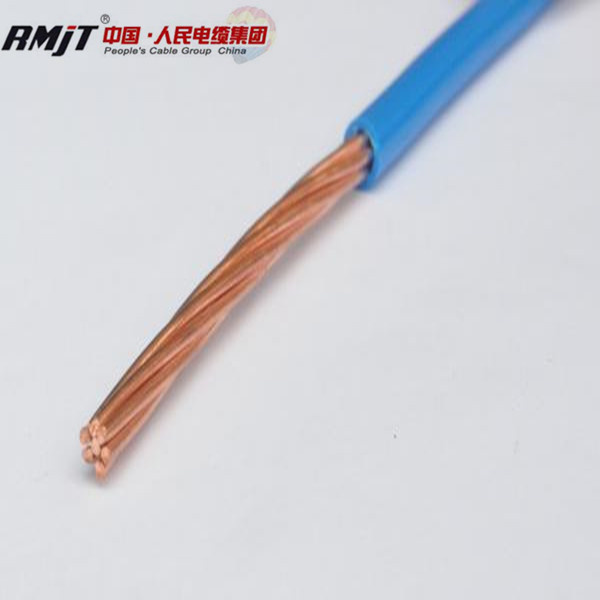

PVC insulation solid/strand electrical wire
1.Application for electrical wirePVC insulated wires is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
2.Standard for electrical wireThe product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
3.Brief construction for electrical wire1) Conductor: Copper or aluminium, Solid
2) Insulation: PVC
3) Number of cores: Single core
4) Other special characteristics: Design and manufacture according to the requirements of customers.
4. Service performance for electrical wire1) Rated voltage: 450/750V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
5.Specification and technical data for electrical wire| Type | Name |
| 227 IEC 01 (BV) | Single-core non-sheathed cable with solid conductor for general purposes |
| 227 IEC 02 (RV) | Single-core non-sheathed cable with flexible conductor for general purposes |
| 227 IEC 05 (BV) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC |
| 227 IEC 06 (RV) | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC |
| 227 IEC 07 (BV-90) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC |
| 227 IEC 08 (RV-90) | Single-core non- sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC |
| 227 IEC 10 (BVV) | Light PVC sheathed cable |
| 227 IEC 42 (RVB) | Flat non-sheathed flexible cable |
| 227 IEC 52 (RVV) | Light PVC sheathed flexible cable |
| 227 IEC 53 (RVV) | Ordinary PVC sheathed flexible cable |
| 227 IEC 74 (RVVYP) | Oil-proof PVC sheathed, screened flexible cable |
| 227 IEC 75 (RVVY) | Oil-proof PVC sheathed, non screened flexible cable |
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.
ISO9001:2008, OHSAS, CCC, TUV Certifications.
6.Our certification
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
6.Our customerWe have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
7.About usPeople's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.

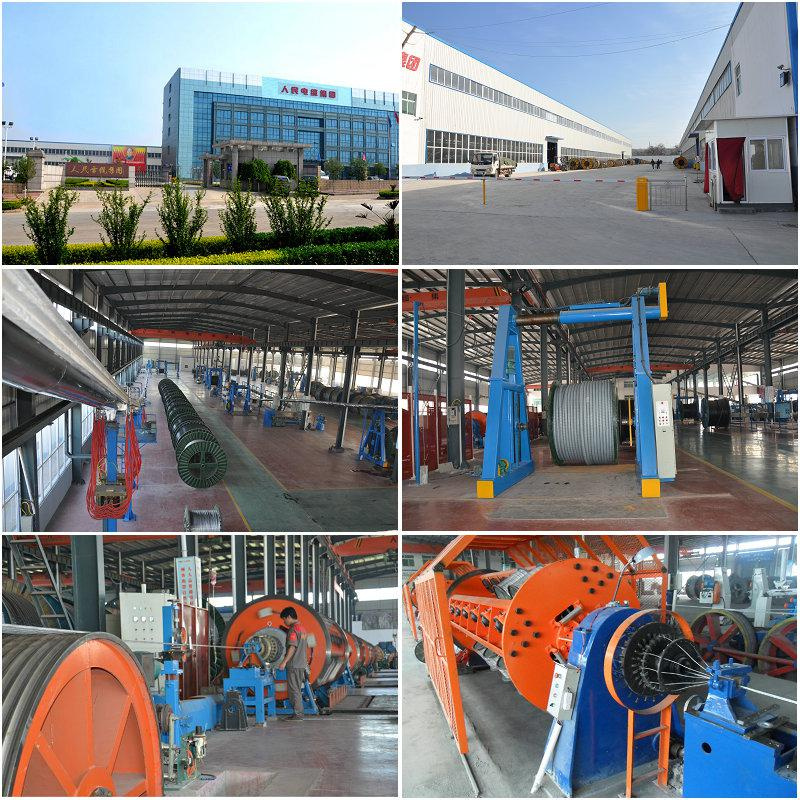

People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
