Prod Model: |
electrical wire |
Number Of Cores: |
1-5 |
Size Range: |
0.75-4 M² |
Factory: |
100,000m² |
Experience: |
30 Years |
Voltage: |
450/750V |
Type: |
Insulated |
Conductor Type: |
Stranded |
Conductor Material: |
Copper |
Insulation Material: |
PVC |
Certification: |
RoHS |
Application: |
Light Appliances |
Range Of Application: |
Indoors |
Brand: |
Huatong |
Product Description

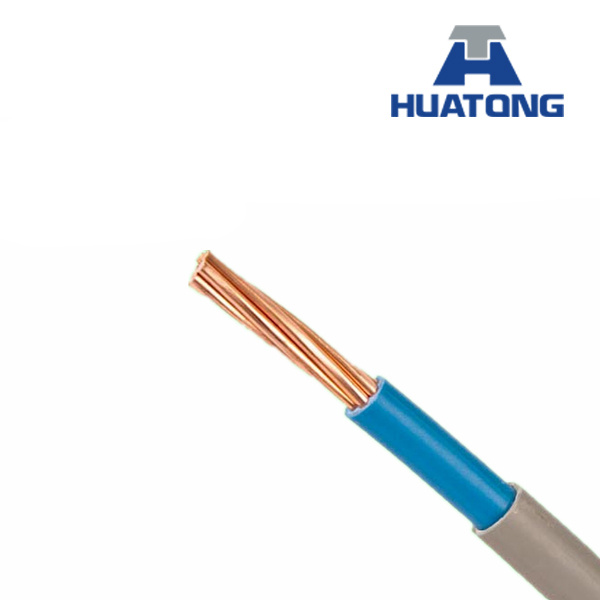

low voltage PVC Wire copper conductor wire for building use
(1)Production capacity:10000km/month
(2)MOQ:100m
(3)Delivery:5~15 officail days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.
(5)Package: 100meters/roll, or on request.
SPECIFICATION
(1) Electrical Wire include models BV, BLV, BVR, RVV, RVVB etc.
(2) Basic structure of PVC insulated wires: copper conductor PVC insulated and PVC sheathed wires
(3) Application: Household and building
(4) Standard matched: CCC, IEC,ISO14001:2004,ISO9001:2008
(5) Low voltage
(6) Flexible or ordinary
(7) A/C voltage: 450/750v or below
300/500v or below
(8) Sinle core or multi cores
(9) Insulation colour: Black, Brown, Yellow, Blue, Red,Green/Yellow, Grey, Orange, White is also available.
(10) Maximum conductor temperature:70°C
Maximum conductor temperature during short Circuit:160°c
Cable 20°C water into 1h,infliction 2500V volage 5min,insulated to do not roke throuth.
(11) Customrized Type is acceptable.
STANDARDS:
BS EN 50525-3-11 (HD21.14), BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24.C
TYPE & NAME:
Modle | Name |
BV | copper core PVC insulated power wire |
BVR | copper core PVC insulated flexible power wire |
BLV | aluminum core PVC insulated power wire |
BVVB | copper core PVC insulated PVC sheathed parallel power wire |
BLVVB | aluminum core PVC insulated , PVC sheathed wire |
RVS | copper core PVC insulated twisted fexible wire |
RVVB | copper core PVC insulated sheath flat flexible wire |
KEY TECHNICAL
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm² | mm | mm | kg/km |
2 | 0.75 | 0.6 | 6.3 | 57 |
2 | 1 | 0.6 | 6.6 | 65 |
2 | 1.5 | 0.7 | 7.4 | 84 |
2 | 2.5 | 0.8 | 9 | 130 |
2 | 4 | 0.8 | 10.4 | 180 |
3 | 0.75 | 0.6 | 6.7 | 68 |
3 | 1 | 0.6 | 7 | 78 |
3 | 1.5 | 0.7 | 8 | 107 |
3 | 2.5 | 0.8 | 9.9 | 163 |
3 | 4 | 0.8 | 11.1 | 212 |
4 | 0.75 | 0.6 | 7.3 | 83 |
4 | 1 | 0.6 | 7.9 | 100 |
4 | 1.5 | 0.7 | 9 | 134 |
4 | 2.5 | 0.8 | 10.8 | 201 |
4 | 4 | 0.8 | 12.2 | 290 |
5 | 0.75 | 0.6 | 8.1 | 103 |
5 | 1 | 0.6 | 8.3 | 130 |
5 | 1.5 | 0.7 | 10.4 | 170 |
5 | 2.5 | 0.8 | 12.1 | 255 |
5 | 4 | 0.8 | 15 | 360 |
Your best choice → Huatong Cable Inc.
(1),More than 30 years experience.
(2) ,100,000m² factory,200 staffs,annual output 100,000 metic tons.
(3),Sound Quality Control
--Material inspection;
--manufacturing inspection;
-- Finished products inspection;
-- Inspection before delivery.
--Third party inspection.
-- Inspection of storage at port of departure.
(4),ISO Certificated.
(5) ,Plenty of material and lobor gurantee the delivery prompt and price competitive.
(6),24/7 service
Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.
Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.
In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
