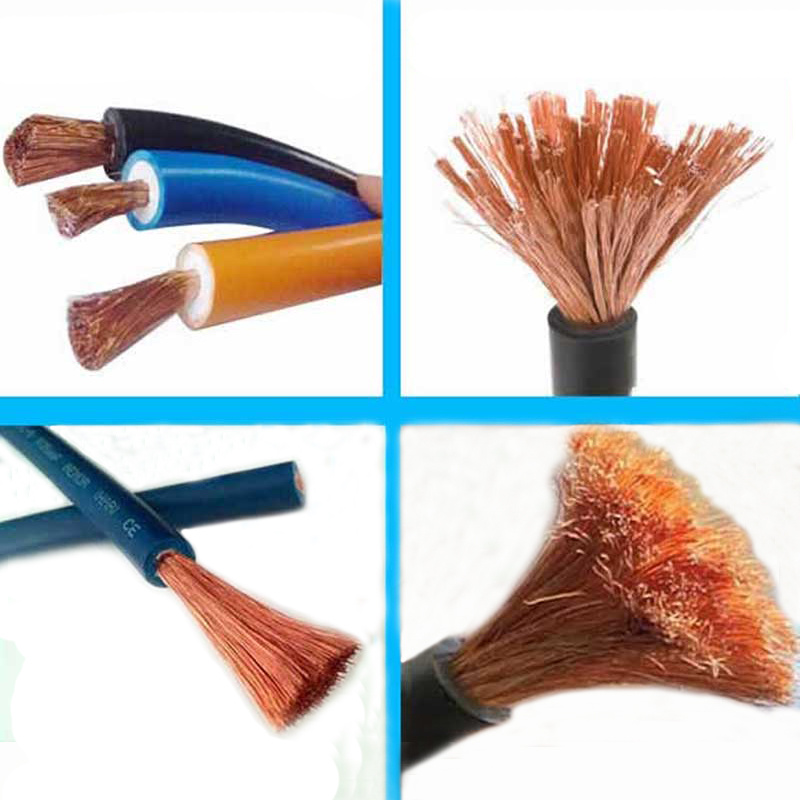

Low Voltage Rubber Insulated Flexible Electric Welding Cable
| Price: |
US $ 2.6-66/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
70sq. mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Rated Voltage: |
Low Voltage |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
Rubber |
| Certification: |
CCC |
| Brand: |
Jytop |
Product Description
Specifications of rubber insulation electric welding cable450/750 Flexible Copper/CCA Rubber Insulation Electric Welding CableSpecifications450/750 PVC insulation CCA welding cable voltage AC 200V~DC 400V Standards: IEC60245 Welding CableDetailed Product Description1th. Service ConditionsThis product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.2th. Model, Names Main applications and Work In the Temperature
Model |
Name |
Main applications |
Working temperature
of core ≤0C |
YH |
Natural Rubber Sheath for Welding Cable |
Always used indoor |
65 |
YHF |
Neoprene Rubber Sheath Welding Cable |
Always used outdoor |
65 |
Synthetic elastomer Sheath Welding Cable |
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm2) |
20oC Conductor Resistance≤(Ω/km) |
Reference Weight(kg/km) |
Number/Diameter of Core(mm) |
Min |
Max |
YH |
YHF |
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153.51 |
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218.9 |
230.44 |
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316.6 |
331.15 |
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439.87 |
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592.47 |
610.55 |
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817.52 |
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066.17 |
1102.97 |
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348.25 |
1392.55 |
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
1678.5 |
1698.72 |
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983.8 |
2020.74
|
Nominal section
area(mm 2 ) | No./diameter of stranding(mm) | Nominal sheath
thickness (mm) | Overall diameter(mm) | Max. conductor resistance
at 20ºC(Ω/km) |
| Min. | Max. | Without tinned | With tinned |
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 1.95 |
| 16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 1.19 |
| 25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 0.780 |
| 35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 0.552 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 0.390 |
| 70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 0.276 |
| 95 | 2297/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 0.204 |
| 120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 0.164 |
| 150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 0.132 |
| 185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 0.108 |
| 240 | 1908/0.40 | 3.8 | 25.0 | 35.0 | 0.0801 | 0.0817 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
