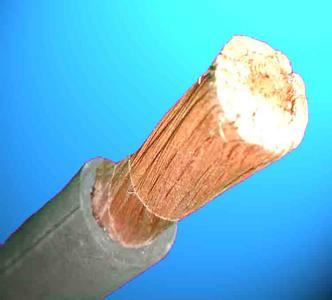

Low Voltage Silicon Rubber Welding Ground Cable
| Price: |
US $ 2/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
rubber sheath cable |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Delivery Time: |
Accordig to The Order Quantity |
| Service: |
OEM Offered |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Welding Machine |
| Conductor Material: |
Copper |
| Insulation Material: |
Silicone Rubber |
| Certification: |
CCC |
| Sheath Material: |
Epr |
| Brand: |
Jinshui |
Product Description
Applications
For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines. Voltage to the ground not exceeding 200V and Pulsed DC peak 400V.
Standards
International: IEC 60245-6: 2003
China: GB5013-2008
Technical data
Maximum Conductor Temperature: 65° C
Feature:

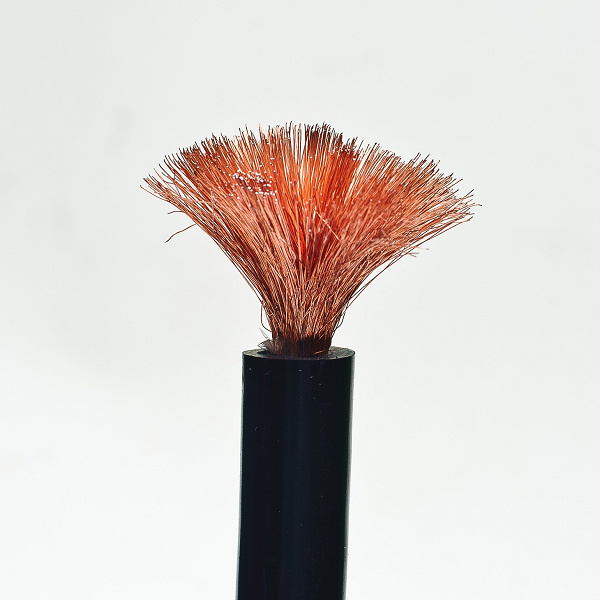

1) Cu conductor, rubber sheath cables
2) Cu conductor, neoprene or other similar synthetic elastomer rubber sheath cables
Specification:
1) Cores: 1
2) Cross sectional area: 10sqmm to 185sqmm
3) Standard: IEC or other requirements
Packing:
In wooden, steel-wooden drum or as per requirements of customers.
Model No.
|
Description
|
60245IEC 81(YH)
|
Natural rubber sheath cable for welding machine
|
60245IEC 82(YHF)
|
Horoprene rubber or other synthetic rubber sheath cable for welding machine
|
Conductor
|
Insulation Thickness (mm)
|
Approx. O.D.
|
Max. D.C Resistance of Conductor (20 °C )
|
Approx.Weight (kg/km)
|
Section area (mm 2 )
|
Strands/Dia.(mm)
|
Lower Limit (mm)
|
Upper Limit (mm)
|
Ω /km
|
YH
|
YHF
|
10
|
322/0.20
|
1.8
|
7.5
|
9.7
|
1.91
|
146
|
153.51
|
16
|
513/0.20
|
2.0
|
8.8
|
11.0
|
1.16
|
218.9
|
230.44
|
25
|
798/0.20
|
2.0
|
10.1
|
12.7
|
0.758
|
316.6
|
331.15
|
35
|
1121/0.20
|
2.0
|
11.4
|
14.2
|
0.536
|
426
|
439.89
|
50
|
1596/0.20
|
2.2
|
13.2
|
16.5
|
0.379
|
592.47
|
610.55
|
70
|
2214/0.20
|
2.4
|
15.3
|
19.2
|
0.268
|
790
|
817.52
|
95
|
2997/0.20
|
2.6
|
17.1
|
21.4
|
0.198
|
1066.17
|
1102.97
|
120
|
1702/0.30
|
2.8
|
19.0
|
24.0
|
0.161
|
1348.25
|
1392.55
|
150
|
2135/0.30
|
3.0
|
21.0
|
27.0
|
0.129
|
1678.5
|
1698.72
|
185
|
1443/0.40
|
3.2
|
22.0
|
29.0
|
0.106
|
1983.8
|
2020.74
|
