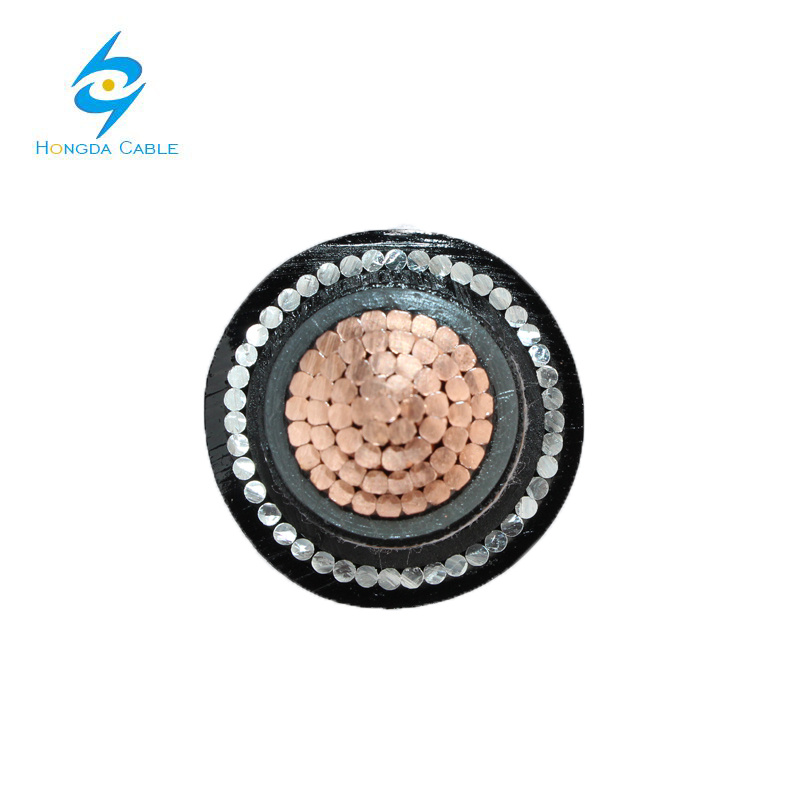

Low Voltage Single Core Copper XLPE Sta/Swa Power Cable

Name: Low Voltage Single Core Copper XLPE Sta/Swa Power Cable
Brand: all-electronics-online.com
SKU: 827820285
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	US $ 0.1-9.9/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	low voltage single core power cable
Armour:	Unarmour
Conductor Material:	Copper
Standard:	IEC
Quality Guarantee:	Ten Years
Core:	1cores
Insulated Color:	White or Black
Sheath Color:	Black
Sample:	Yes
Manufacture:	Yes
Application:	Underground
Current:	DC Cable
Insulation Material:	XLPE
Certification:	RoHS
Brand:	Hongda
Voltage:	0.6/1kv, Low Voltage
Wire Core Material:	Copper

Product Description

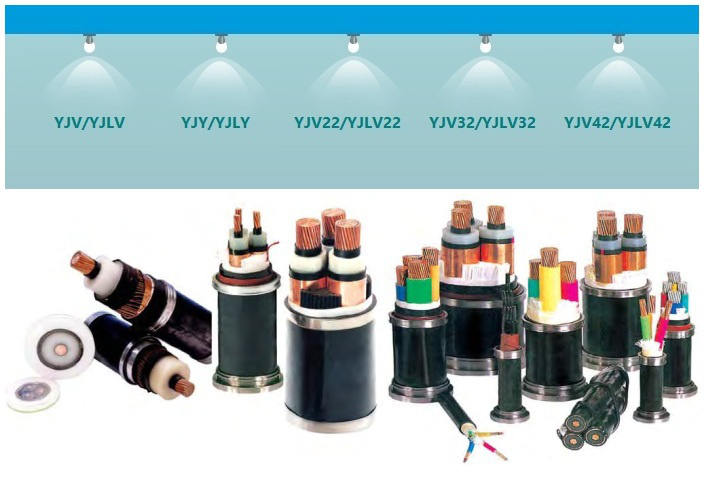

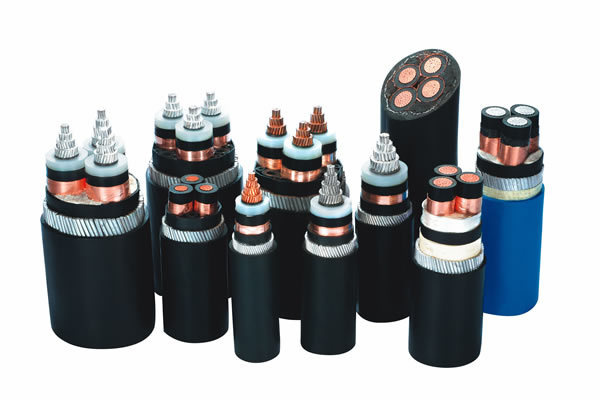

LV and MV single core Copper XLPE power Cable

1. Product Application.

The main function of XLPE Insulated Power Cable is to transport electricity, which is suitable for use in power distribution networks or fixed installations for industrial equipments operating at rated voltage up to and including 0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 26/35kV with alternating current(AC) 50Hz.This product is usually used under a normal used condition, which does not apply to some special conditions, such as overhead, underwater, ship, submarine, nuclear power station, etc.
XLPE insulated flame-retardant power cable, with good performance on preventing fire burning on the circuit, can avoid fire accidents and losses. It is suitable for used in the places where the cable needed to be fixed and installed at high density level, like subway, tunnels and high-rise buildings etc.
XLPE polyethylene insulated low-smoke zero-halogen flame-retardant power cables, a kind of environmental product, has good performance on flame-retardant, corrosion resistance and low-smoke, which is suitable to be laid and fixed in crowded places, such as subway, shopping mall or school etc.

2. Technique Features & Standard.

XLPE polyethylene insulated power cables, this product is manufactured by parasitical cross-linking procedure, the straight-chain polyethylene will be changed as network structure by use this method, which transformed thermoplastic material into thermosetting material. The working temperature is up to 90ºC, which can raise the cable current capacity highly. XLPE polyethylene insulated power cables, the product has good performance on electrical characteristic, heat resistance, chemical resistance, environmental stress cracking resistance and aging resistance, all which make the cable has a long useful life.

GB/12706-2008, IEC60502-1,IEC 60228,IEC60332 BS 5467,IS 1554 , IS 7098 ect.
we can also design and produce for special application requirement.

3. Operating Characteristics.

3.1 U0/U(Um) Rated Voltage of Cable

,0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2 Nominal cross-section(mm2): 1.5~630
0.6/1(1.2), 1.8/3(3.6) 3.6/6(7.2), 6/6(7.2)-6/10 (12) 8.7/10(12) 8.7/15(17.5) 12/20(24) 18/30(36) 21/35(40.5) 26/35(40.5) kV
3.2 The rated Temperature of Conductor
a) The long-time operating temperature of conductor should not be higher than 90ºC
b) If the core is in short circuit, short circuit temperature of conductor should not exceed 160ºCnot more than 5sec.
3.3 Ambient Temperature
When installation, the ambient temperature should not be lower than 0ºC, otherwise the cable need be preheated.
3.4 Bending Radius
Bending radius of single core cable is 20(d+D) ±5%
Bending radius of multi-core cable is 15(d+D) ±5%
d: Actual diameter of the conductor (mm)
D: Actual outer diameter of cable sample (mm)

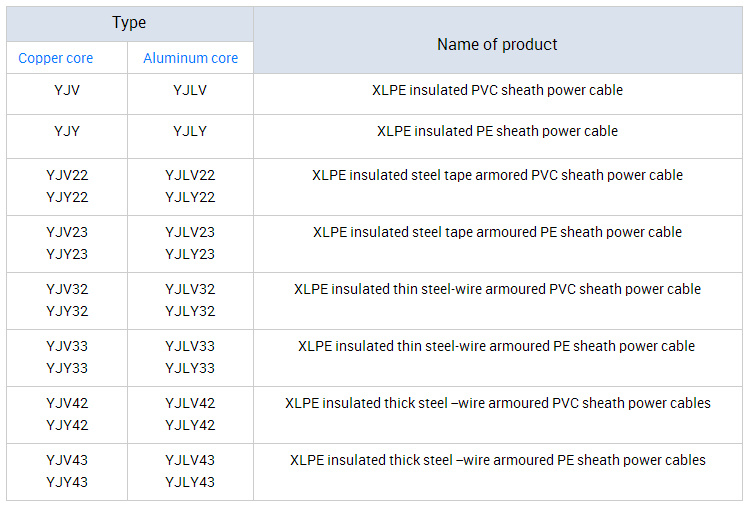

4. Specification of product.

5. Construction.

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Colour identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.

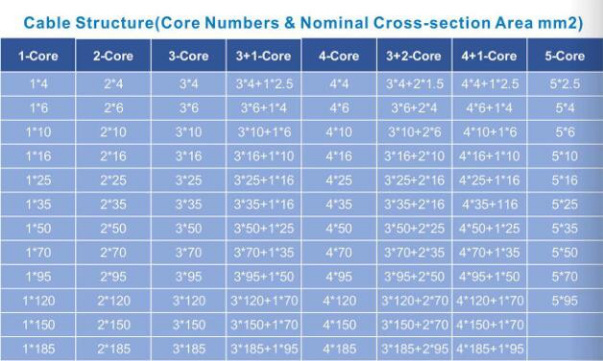

1. 1 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2.

2. 2 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

3. 3 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

4. 4 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

5. 5 core: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2.

6. 3+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

7. 3+2 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

8. 4+1 core: 2.5+1.5mm2, 4+2.5mm2, 6+4mm2, 10+6mm2, 16+10mm2, 25+16mm2, 35+16mm2, 50+25mm2, 70+35mm2, 95+50mm2, 120+70mm2, 150+70mm2, 185+95mm2, 240+120mm2, 300+150mm2, 400+185mm2

^{6. Packaging&Delivery.}

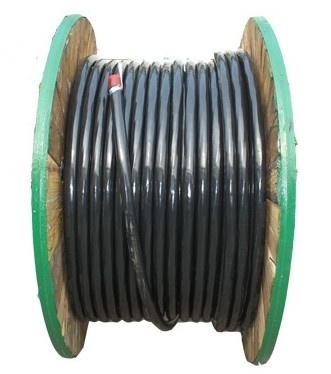

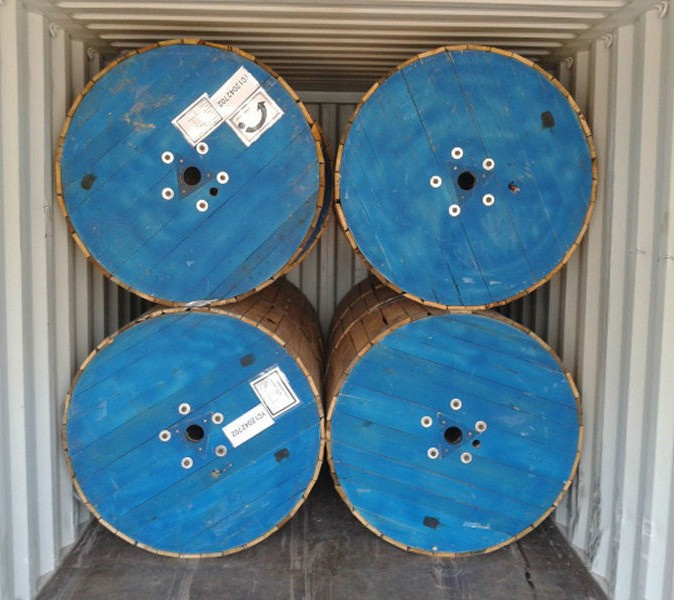

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)

^{7. Contact us}
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
