| Prod Model: |
single core xlpe insulated armoured power cables |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Galvanized Steel Wire: |
Aluminum Conductor |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Insulation Material: |
XLPE |
| Certification: |
GB IEC BS DIN Icea |
| Conductor Material: |
Copper or Aluminum |
| Brand: |
Rneda |
Product Description
Lower voltage xlpe insulated power cable:
1 Product Standard
This product is manufactured according to GB/T12706.1, equivalent to IEC60502.1. Or BS, DIN, ICEA standard as customer request.
2 Application
The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.
Operating Performance
1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90ºC
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250ºC
4). The ambient temperature under installation should not below 0ºC
5). The bending radius of a cable should not be less than 15 times of the cable diameter.
6). The test voltage (A.C.): 3.5kV/5min.
7). The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332.

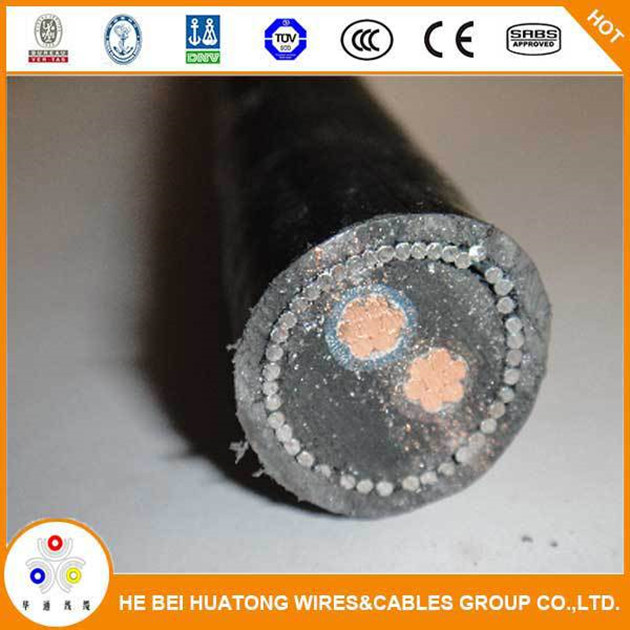

3 Construction:
Conductor: Solid or stranded copper,aluminum
Insulation: Cross-linked polyethylene( XLPE or PVC)
Circuit Identification: The insulation shall be red, black
Filler: Polypropylene lament with lapped binding tape
Inner Sheath: Polyvinyl chloride (Black)
Armor: Galvanized steel wire
Core-covering: Binding tape
Outer Sheath: Polyvinyl chloride (Black)
Package: Wooden Drum Package or Iron-wooden drum
4 Type and Name:
| Type | Designation | Applications |

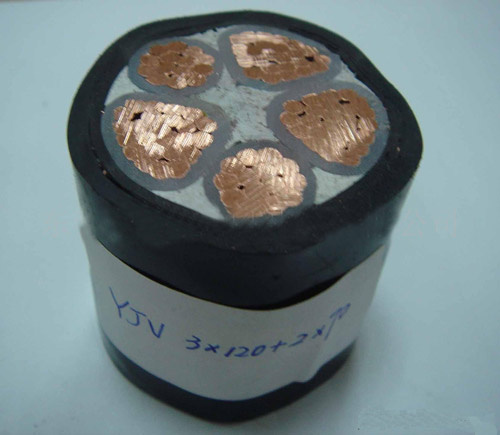

| YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable |
| YJY | Copper conductor, XLPE insulated,PE sheathed power cable |
| YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable |
| YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
| YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable |
| YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable |
| YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable |
| YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. |
| YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable |
| YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
| YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
5 Specification:
| Type | No. of cores | Nom. Cross-section of conductor
(mm2) |
| Copper conductor | Aluminum conductor |
| YJV YJY | - | 1 | 1.5-800 |
| - | YJLV YJLY | 2.5-800 |
| YJV22 YJV23 | YJLV22 YJLY23 | 10-800 |
| YJV YJY | - | 2 | 1.5-300 |
| - | YJLV YJLY | 2.5-300 |
| YJV22 YJV23 | YJLV22 YJLY23 | 4.0-300 |
| YJV32 YJV33 | YJLV32 YJLY33 | 10-300 |
| YJV YJY | - | 3 | 1.5-400 |
| - | YJLV YJLY | 2.5-400 |
| YJV22 YJV23 | YJLV22 YJLY23 | 4.0-400 |
| YJV32 YJV33 | YJLV32 YJLY33 | 10-400 |
| YJV YJY | - | 4 | 1.5-400 |
| - | YJLV YJLY | 2.5-400 |
| YJV22 YJV23 | YJLV22 YJLY23 | 4.0-400 |
| YJV32 YJV33 | YJLV32 YJLY33 | 10-400 |
| YJV YJY | - | 3+1 | 1.5-400 |
| - | YJLV YJLY | 4.0-400 |
| YJV22 YJV23 | YJLV22 YJLY23 | 4. 0-400 |
| YJV32 YJV33 | YJLV32 YJLY33 | 10-400 |
| YJV YJY | - | 5 | 1.5-400 |
| - | YJLV YJLY | 2.5-400 |
| YJV22 YJV23 | YJLV22 YJLY23 | 4.0-400 |
| YJV32 YJV33 | YJLV32 YJLY33 | 10-400 |
| YJV YJY | - | 4+1 | 1.5-400 |
| - | YJLV YJLY | 4.0-400 |
| YJV22 YJV23 | YJLV22 YJLY23 | 4. 0-400 |
| YJV32 YJV33 | YJLV32 YJLY33 | 10-400 |
| YJV YJY | - | 3+2 | 1.5-400 |
| - | YJLV YJLY | 4.0-400 |
| YJV22 YJV23 | YJLV22 YJLY23 | 4. 0-400 |
| YJV32 YJV33 | YJLV32 YJLY33 | 10-400 |
| The armoured single core cables are used for D.C. system only. As for A.C. system,non-magnetic armour material should be used, or a magnetic isolation should be applied. |
